Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 , 316 , 316L | Rope Constructions: | 7 X 7 , 7 X 19 |
|---|---|---|---|
| Wire Rope: | 1.2Mm To 3.2 Mm | Mesh Orientation: | Horizontal , Vertical |
| Product Name: | Stainless Steel Cable Wire Rope Mesh | Hole Shape: | Rhombus , Diamond |
| Feature: | Corrosion Resistance,beautiful,durable,Easily Assembled | Mesh Openning: | 70*150mm |
| Application: | Staircase Security , Balustrade Infill , Railing Safety | Mesh Angle: | 60 Degree |
| Mesh Style: | X-tend In Ferruled Type | ||
| High Light: | stainless steel wire rope mesh 7x19,stairway stainless steel wire rope mesh,flexible stainless steel cable mesh 7x19 |
||

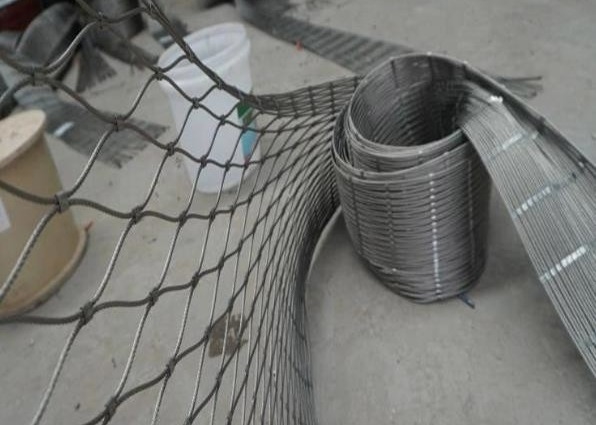

7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway

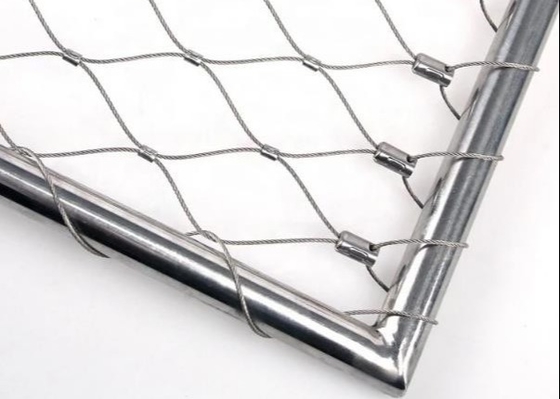

Stainless steel flexible wire rope mesh adopt ferrule type which is sturdy and unlimited in wide and long ;
This stainless steel wire rope mesh aperture shape in rhombus or diamond with 60 degree mesh angle ;
Usually the mesh eye size for the balustrade wire rope mesh is mesh wide 25 mm by mesh high 150 mm with wire rope diameter 1.5 mm 1.6 mm 2.0 mm 2.5 mm 3.0 mm 4.0 mm 6.0 mm;
measurement:
specification:
Stainless steel wire rope mesh is custom manufactured to in width and length to suit your balustrades and staircases ; thw specification as follows:
Ferruled mesh:
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
| Inch | mm | mm | kN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| BR-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
| BR-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| BR-08 | 7 × 7 | 5/64 | 2 | 100 × 173 | 3.17 |
| BR-09 | 7 × 7 | 5/64 | 2 | 90 × 156 | 3.17 |
| BR-10 | 7 × 7 | 5/64 | 2 | 80 × 139 | 3.17 |
| BR-11 | 7 × 7 | 5/64 | 2 | 70 × 121 | 3.17 |
| BR-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
| BR-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
| BR-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| BR-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
| BR-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
| BR-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| BR-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
Characteristic
1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight
2. Flexibility: the smooth mesh surface can get in close contact with animal's fur and feather without damaging them and meanwhile guarantees enough
tensile strength.
3. Its rust and corrosion resistant and maintenance-free features as well as ultra long service life can provide a beautiful site and reduces the zoo's
operating costs. One-time investment provides permanent use its comprehensive profits outperform other competitive products greatly
4. Light weight; flexible; anti fatigue; great tensile strength; simple structure; environment friendly; non poisonous and recyclable; easy for transportation and installation; no
deformation after long-time service
