| Material: | Electro Galvanized Wire | Type: | Welded Mesh |
|---|---|---|---|
| Application: | Protecting Mesh | Weave Style: | Plain Weave |
| Technique: | Woven | Color: | Silver Or Customers Request |
| Surface Treatment: | Hot Dipped Galvanized | Length: | 15-30m/100feet |
| Width: | 0.5-2m/3feet | ||
| High Light: | galvanized 2x4 welded wire mesh panel,5x5cm welded mesh galvanised wire panel,reinforcing 2x4 welded wire mesh panel |
||

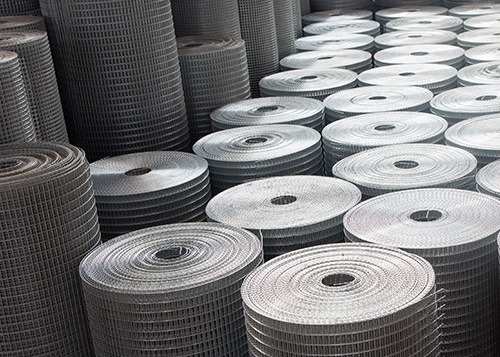

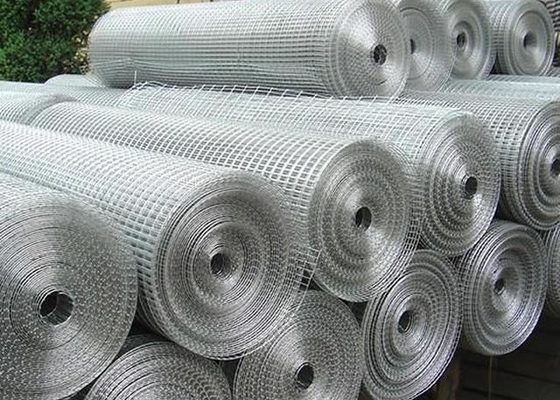

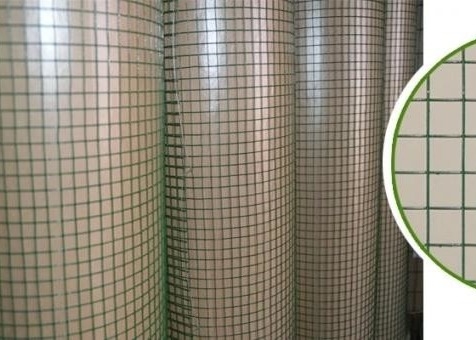

Welded wire mesh panels,rolls & shees
Welded wire mesh rolls have smooth mesh surface, uniform mesh, firm weld joints and good strength to be used in agriculture, aquaculture, construction and other applications.We have wide ranges of mesh openings, heights and lengths of welded mesh rolls for your choice to suit your different applications.
Welded wire mesh rolls are made of black wire, stainless steel wire or galvanized steel wire. Hot dipped galvanized or PVC coated surface treatment make them better corrosion and rust resistance performance.
Welded Wire sheets from Metal Mesh are made from premium quality materials and manufactured on state-of-the-art, fully computerized, mesh welding machines. Therefore our range of welded mesh is of the highest standards in regards to flatness, squareness, and weld quality and consistency.
Welded wire mesh is made by resistance welding wires together to create an open square or rectangular grid pattern. At each cross-wire or point where the longitudinal and vertical wires cross, they’re resistance welded to provide a flat finish product available as cut-to-size sheets or rolls.
Available in rolls or sheets, our welded wire mesh can be made from galvanised mild steel, 304 or 316-grade stainless steel. They’re available in a variety of apertures and wire diameters, as well as different percentages of open areas across the grid. Sheets are available in standard sizes: 2500mm x 1200mm, 2500 x 1250mm, 2000mm x 1000mm, and 2400mm x 1200mm.
|
Opening
|
|
Width
0.4-2MLength 5-50m |
electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
|
inch
|
metric unit
|
|||
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
22.23.24
|
||
|
3/8" x 3/8"
|
10.6x 10.6mm
|
19.20.21.22
|
||
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
16.17.18.19.20.21.22.23
|
||
|
5/8" x 5/8"
|
16x 16mm
|
18.19.20.21
|
||
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
16.17.18.19.20.21
|
||
|
1" x 1/2"
|
25.4x 12.7mm
|
16.17.18.19.20.21
|
||
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
14.15.16.17.18.19
|
||
|
1" x 2"
|
25.4 x 50.8mm
|
14.15.16
|
||
|
2" x 2"
|
50.8 x 50.8mm
|
12.13.14.15.16
|
||
|
4” x 4"
|
50.8 x 101.6mm
|
12.15
|
||
Application:
Welded wire mesh is commonly used to build bird aviaries, bird proofing buildings and structures, machine and finger guards, create storage racks, gabion boxes, animal cages, and shelving. Sheets of welded wire mesh are used to create storage racks, gabion boxes, animal cages, and shelving or grate flooring.
Features
Available in 304 and 316-grade stainless steel
Available in galvanized mild steel
Available cut to size
