Welded Wire Mesh Panels 1.2x2.4m Galvanised 4x8ft Steel Sheet Metal 2" Holes

Name: Welded Wire Mesh Panels 1.2x2.4m Galvanised 4x8ft Steel Sheet Metal 2" Holes
Brand: qijie
SKU: welded mesh panel
Price: 1 USD
Availability: InStock
Rating: 4.7 (165 reviews)

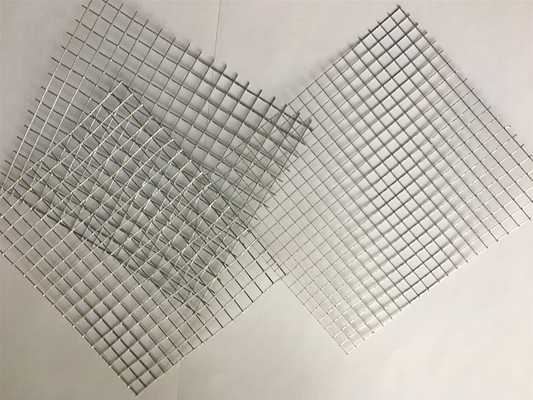

Large Image : Welded Wire Mesh Panels 1.2x2.4m Galvanised 4x8ft Steel Sheet Metal 2" Holes

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	SGS
Model Number:	welded mesh panel

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets
Delivery Time:	15-20days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Model Number:	QJ008	Material:	Galvanized Iron Wire
Type:	Welded Mesh	Application:	Fence Mesh
Hole Shape:	Square	Wire Gauge:	2-12mm
Processing Service:	Welding	Surface Treatment:	Hot Dipped Galvanized
Usage:	Protection	Wire Diameter:	2.0-4.00mm
Mesh Size:	60x80 80x100 80x120 100x120	Package:	One Bundle
Length:	1-8m	Advantage:	Age Corrsion
Welding Type:	Spot Welding
High Light:	galvanized welded wire mesh , galvanised weld mesh panels

Product Description

WELDED MESH PANEL WITH FIRM STRUCTURE AND SMOOTH SURFACE SUPPLIES PRACTICAL POWER AND AESTHETIC ADVANTAGE

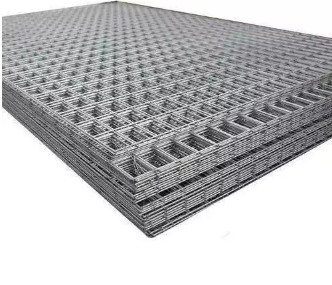

Welded mesh panel has smooth surface and firm structure, which is made of high quality low carbon steel, stainless steel and aluminum alloy steel.Carbon steel surface treatment includes PVC coated, PVC praying, hot-dipped galvanized and electric galvanized. The PVC coated and galvanized surfaces have good corrosion resistance and weather resistance, so welded mesh panel can provides a long service life. Panel common size is 1800 mm × 3000 mm,

FEATURE

* Firm welding joints and smooth surface.

* High tensile strength.

* Corrosion resistance.

* Aging resistance.

* Weather resistance.

* Long service life.

SPECIFICATION
Material	Low carbon steel wire, stainless steel wire and aluminum-magnesium alloy wire.
Process	Welded after galvanized and galvanized after welding.
Surface treatment	Galvanized, PVC coated, powder coated, etc.
Color	White, green, black, also accept customers' special request.
Panel size	1800 mm × 3000 mm (or more).
PVC coated thickness	0.5 mm – 1.0 mm.

Table 1: Welded Mesh Panel Common Specification
Mesh		Wire Diameter
Inches	Millimeters	Gauge	Millimeters
1" × 1"	25 mm × 25 mm	11 G – 14 G	2 mm – 3 mm
2" × 1"	50 mm × 25 mm	8 G – 14 G	2 mm – 4 mm
2" × 2"	50 mm × 50 mm	8 G – 14 G	2 mm – 4 mm
3" × 2"	75 mm × 50 mm	6 G – 14 G	2 mm – 5 mm
3" × 3"	75 mm × 75 mm	6 G – 14 G	2 mm – 5 mm
4" × 2"	100 mm × 50 mm	4 G – 14 G	2 mm – 6 mm
4" × 4"	100 mm × 100 mm	4 G – 14 G	2 mm – 6 mm
5" × 5"	125 mm × 125 mm	4 G – 14 G	2 mm – 6 mm
6" × 6"	150 mm × 150 mm	4 G – 14 G	2 mm – 6 mm
Note: Special specifications can be customized.

Application

* Garden fencing

* Plant support

* Dog Fencing

* Crop protection

* Fabrication applications

* In building and construction

Product packaging
