Product Details:
Payment & Shipping Terms:
|
| Material: | Low Carbon Steel Iron Wire,galvanised Wire | Application: | Security, Prison Fence |
|---|---|---|---|
| Characteristics: | Strong Structure | Wire Diameter: | 4 Mm Usually |
| Product Name: | Security Wire Mesh Fence | Color: | RAL 6005 Green |
| Technique: | Welded Mesh | Surface Treatment: | Galvanized+PVC Coated |
| High Light: | wire mesh panels,wire fencing panels |
||

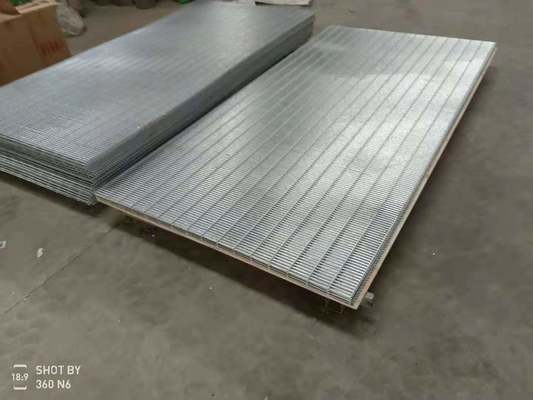

Anti-Climb, Anti-Cut, Corrosion Resistance 358 High Security Fence
358 high security fence is a kind of high strength and high security fence. 358 high security fence means fence panel with 3'' × 0.5'' mesh opening and 8 gauge wire diameter. The mesh opening is so small that people can't put fingers into it and climb it. And the 8 gauge wire is so strong that can't be cut by bolt cutters and wire cutters. 358 high security fence is also usually used with barbed wire, razor wire and wall spikes to further enhance the security. 358 high security fence with higher security can be used in prison, borderline, power plant and some places that require strong security and privacy. In addition, our products with galvanized or PVC coating surface treatment has good corrosion resistance.
For higher security performance, you can choose the 3D 358 high security fence and 2D 358 high security fence.
High security mesh panels are packaged in plastic film then stored and transported on wooden pallets. Each package is firmly attached to the pallet by a special type tape.
Our specialists have developed a number of standard safety solutions for private homes, playgrounds, tennis courts, schools, public buildings, warehouse areas, airport, military bases, prison and special facilities fencing. If you decide to make a fence, but do not know how to do it, Please contact us and our designers can help you.
We are open for cooperation and will be happy to work with private customers and large companies, even national government agencies. Choose us, you will get high security fencing with the features of low cost, quick installation, high degree of corrosion protection, modern look and long service life.
green colored 358 mesh fence panels
Fencing specification
Mesh panel heights: 1.8 m, 2.0 m, 2.2 m, 2.4 m, 3.0 m, higher sizes by special request.
Mesh panel width: 2.515 m.
Coatings: Hot dipped galvanized before welded, then polyester coated black, green, or white color.
Panel bends: 45 mm rigidity bends.
Post with plastic top-cap.
Fixing: clamps, and blot.
Security fencing toppings: fence spikes, razor wire, electrified fencing.
Clear view fencing panels options: high security, medium security, low security.
| Security options | Aperture | Vertical Wire Thickness | Horizontal Thickness | Features |
|---|---|---|---|---|
| High Security | 76 mm × 12.5 mm | 4 mm | 3.5 mm | most secure, anti-cut, anti-climb, highly visible |
| Medium Security | 76 mm × 25 mm | 4 mm | 4 mm | anti-cut, and highly visible |
| Low Security | 76 mm × 50 mm | 4 mm | 4 mm | anti-cut, and highly visible, cost effective |
| Fence height | Panel size height × width |
Posts section | Post length | No.of bends | No. of clamps |
|---|---|---|---|---|---|
| 1800 mm | 1800 mm × 2515 mm | 60 × 60 × 2 mm | 2400 mm | 4 | 16 |
| 2000 mm | 2000 mm × 2515 mm | 60 × 60 × 2 mm | 2600 mm | 4 | 16 |
| 2200 mm | 2200 mm × 2515 mm | 60 × 60 × 2 mm | 2800 mm | 4 | 16 |
| 2400 mm | 2400 mm × 2515 mm | 80 × 80 × 3 mm | 3000 mm | 4 | 16 |
| 3000 mm | 3000 mm × 2515 mm | 80 × 80 × 3 mm | 3600 mm | 5 | 20 |
green colored 358 mesh fence panels
358 mesh fence panels
advantages
Anti-climb, anti-cut and 85% - 90% see-thru.
HD Galv and polyester coated for corrosion and rust resistance.
High to low security fencing options.
V-Bends in the clear view fencing panels create more strength and rigidity.
Clear view fence panels fixing to square tube post makes maximum security and strength.
We have professional installations teams.
Feature
suitable for high, medium, and low security application as the following:
