| Frame Material: | Metal | Metal Type: | Steel |
|---|---|---|---|
| Pressure Treated Wood Type: | Heat Treated | Frame Finishing: | Powder Coated |
| Feature: | Easily Assembled, Sustainable, ECO FRIENDLY, FSC, Pressure Treated | Usage: | Garden Fence, Highway Fence, Sport Fence, Farm Fence, Prison Fence |
| Type: | Fencing, Trellis & Gates, Security Fence, Driveway Gates, Fence Accessor | Service: | 3D Modeling, 3D Sample Models, Instruction Book, Video Of Install |
| Panel Height: | 2.1m,2.4m,2.9m | Panel Width: | 2.5m,2.9m |
| Wire Diameter: | 3.85/4mm | Opening: | 76.2*12.7mm |
| Surface Treatment: | PVC Coated Or Hot-dipped Galvanized | Commercial Buyer: | Department Stores |
| Colors: | Green RAL6005,Black RAL9010,Brown RAL And So On | Design Style: | Industrial, Farmhouse |
| High Light: | wire mesh panels,wire fencing panels |
||

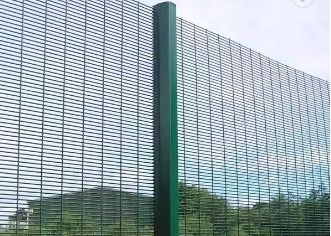

358 security fence panel introduction

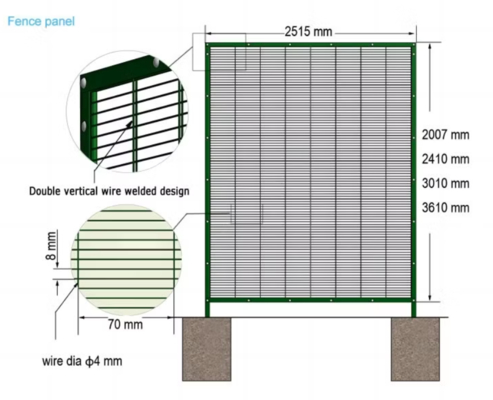

The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.
Features:
1.Anti-climb:Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
2.Anti-shear:the wire diameter is large, the mesh is dense, making the wire cut useless.
3.Beautiful appearance: the mesh surface is flat, and the perspective is higher.
| Mesh Opening | 12.7x76.2mm ( 0.5'' x 3'' ) |
| Wire Diameter | 3/3.5/4mm |
| Panel Height | 1.2m-6m ( Suggest size : 2m/2.4m/3m ) |
| Panel Width | 2.0-3.0m ( Suggest size : 2m/2.2m/3m ) |
| Post Type | Square Post(SHS) : 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm
Rectangular Post(RHS) : 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm
|
| Surface Treatment | hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating |
| Color | RAL 6005 green, RAL 7016 gray, All RAL color can be customized |
| Note | The fence can be customized according to your required if above specification is not satisfied with you |
