Product Details:
Payment & Shipping Terms:
|
| Material: | STAINLESS STEEL WIRE | Type: | Rope Mesh, Ferrule Type Or Knotted Type |
|---|---|---|---|
| Application: | Protecting Mesh | Weave Style: | Plain Weave |
| Technique: | Woven | Model Number: | Steel Wire Rope Mesh |
| Processing Service: | Weave | Raw Material: | Stainless Steel 304 316, Galvanized Wire |
| Accessories: | All Could Be Provided | ||
| High Light: | stainless steel rope mesh,flexible stainless steel cable mesh |
||

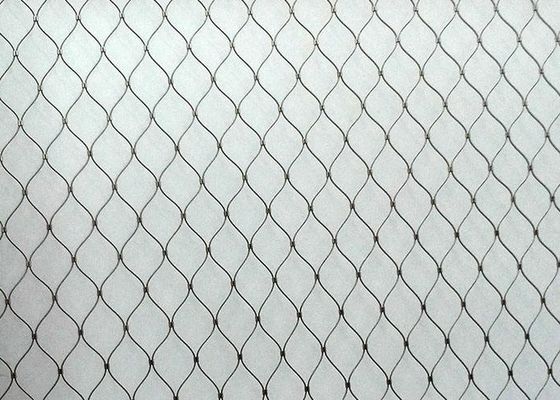

WIRE ROPE MESH (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Main Featuers:
1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
5.Anti-corrosive,resist the rust,can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material,safety,environmental protection.
The type of stainless steel rope mesh

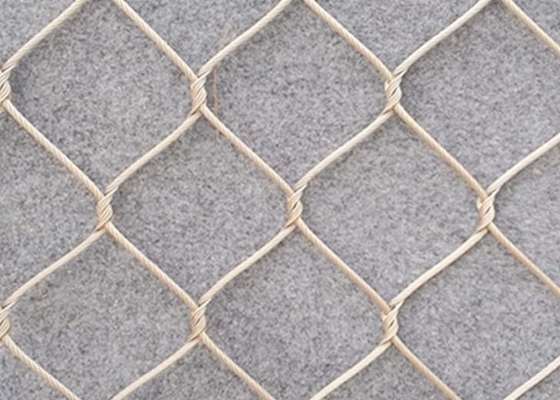

1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.

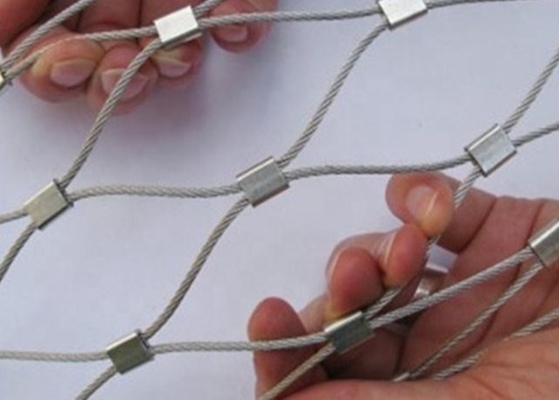

2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
| Flexible Stainless Steel Cable Mesh | ||
| Type | Knotted cable mesh | Ferrule cable mesh |
| Image |  |
 |
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304,316,316L,etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm,2 mm or 2.5 mm),7 × 19 (3 mm,4 mm) | |
| Diamond size | 20 ~ 200 mm | |
| Mesh Orientation | Horizontal,Vertical | |
| Feature | Quality material,High flexibility,Anti-corrosion,Longevity,Cost effectiveness,Easy | |

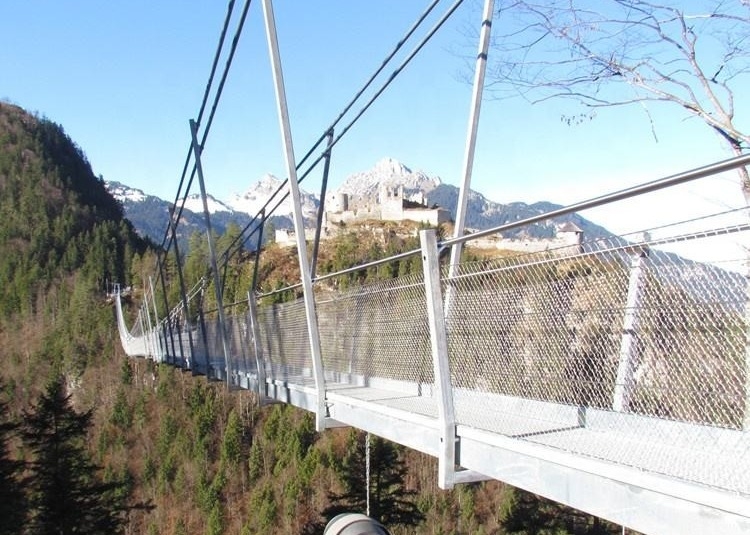

Stainless steel wire rope mesh used for wide range of application: bird net, zoo, greenhouse, airport, fencing, decoration in hall, green wall series and so on. It is safe, light weight, long service life, high-strength, etc.
