Material: | Stainless Steel | Name: | Perforated Metal Screen Sheet |
---|---|---|---|
Hole Type: | Rould Hole | Thickness: | 2mm |
Key Word: | Cold Rolled Stainless Steel Sheet /stainless Steel Plate | Length: | 2000,2438,2500,3000,6000mm, Or As Your Requirements |
High Light: | Galvanized Perforated Metal Mesh,Round Hole Perforated Metal Mesh |
The Raw Material
stainless steel board, aluminum board, cold and hot steel board,copper plate, fiberboard and so on.
Hole Pattern
round, square, hexagonal, scale, rectangular, triangle, cross, slotted.
Surface Treatment of stainless steel perforated plate
*Galvanized: Galvanized including hot-dip galvanized and electic galvanized.
*PE/PVC coated,white,green,blue,red,yellow etc
ROUND HOLES STAGGERED PATTERN | |||
HOLE | CENTERS | GAUGE / PLATE THICK. | OPEN AREA |
.020" RD | .045" Stag | 26 | 18% |
1/32" RD | 1/16" Stag | 22 | 23% |
3/64" RD | 5/64" Stag | 24 | 33% |
1/16" RD | 3/32"Stag | 22 thru 16 | 40% |
5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
.117 RD | 5/32" Stag | 18 | 51% |
1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
9/64" RD | 3/16" Stag | 18 | 51% |
5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
17/64" RD | 5/16" Stag | 20 | 66% |
5/16"RD | 7/16" Stag | 20 thru 1/4" | 46% |
3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
Other specifications parameter size support customization |

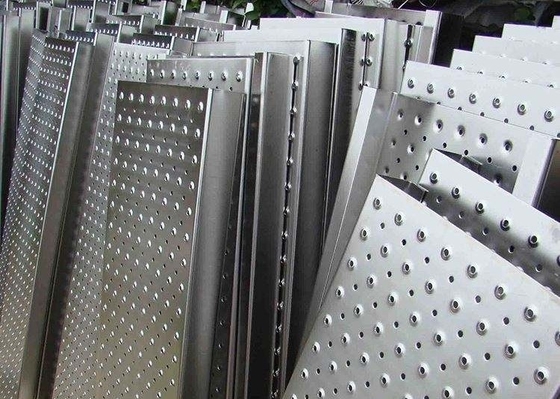

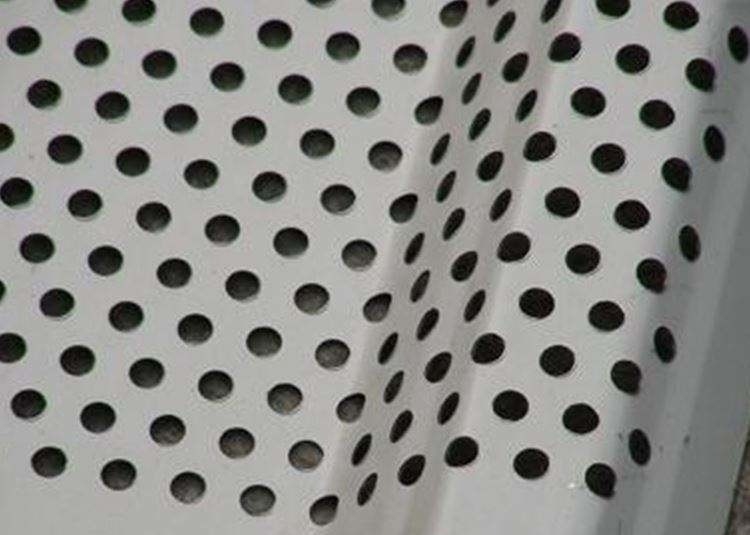

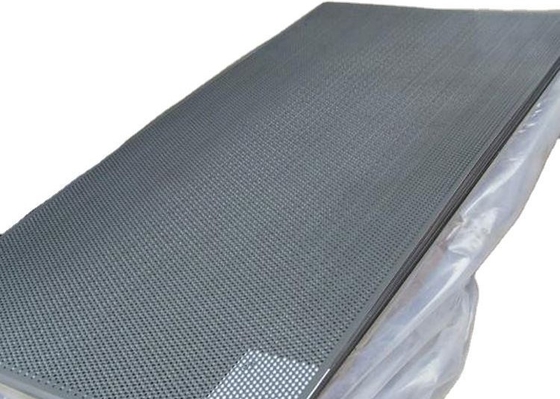

Product Display
