| Hole Shape: | Square | Wire Gauge: | 0.3mm-8.0mm |
|---|---|---|---|
| Application: | Construction Wire Mesh,building | Type: | Welded Mesh,Panel Or Roll |
| Width: | 0.5m To 2.2m | Length: | 30m,50m,10m,25m |
| Usage: | Building,construction | Packing: | Waterproof Paper,Pallet,In Roll,Panel |
| Color: | Silver | ||
| High Light: | 8′X4′ Galvanised Steel Welded Mesh,Galvanised Steel Welded Mesh 1" Holes,galvanised metal mesh 12 Gauge |
||
Welded Wire Mesh Panel 8′ X 4′ FT Galvanised Steel Sheet 1" Holes Metal Sheet 12 Gauge
Welded wire mesh panel, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.
Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Type: Galvanized welded wire mesh, Stainless steel welded wire mesh, PVC coated welded wire mesh.
| Material | Low carbon steel wire, galvanized wire, stainless steel wire, aluminum-magnesium alloy wire |
| Process | Welded after galvanized and galvanized after welding |
| Mesh | 25*25mm, 50*50mm, 1*1, 2*2inch, 3*3inch, 75mm x 150mm, etc |
| Size | 4*8FT, 1*2M, 1800mm x 3000mm(or we can make as customer request) |
| PVCCoating Thickness | 0.5mm ~ 1.0mm |
| Packing | Bare or pallet |
| Product Name | welded wire mesh panel |
| Wire diameter | 3mm 4mm 4.8mm 5mm 6mm,8mm or as your requirement |
| Mesh size | 75x75mm, 50x50mm 100x100mm, 120x120mm,150x150mm or as your request |
| Panel size | 1x2m, 1.5 x2.2m, 2.2x5.8m, 2.4mx6m or as your request |
| Surface treatment | hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated |
| Applications | Wire Fencing And Building Material |
| Hole Size (mm) | Wire Diameter (mm) | Width | Length |
|---|---|---|---|
| 50 × 50 | 3.5 | 0.5–2.4 m | 1.0–4.0 m |
| 50 × 100 | 3.5 | ||
| 100 × 200 | 3.5 | ||
| 50 × 75 | 4.0 | ||
| 100 × 100 | 4.0 | ||
| 50 × 180 | 4.5 | ||
| 150 × 150 | 4.5 | ||
| 200 × 200 | 5.0 | ||
| 100 × 200 | 5.0 | ||
| The form of hole can be divided into rectangle and square. Hole size, wire diameter, length and width according to the customers' need to design and produce. | |||
Style:
(1) Electro or Hot dipped galvanized after or before welding;
(2) Stainless steel wire welded wire mesh;
(3) PVC coated galvanized welded wire mesh;
(4) Black wire/ without coated welded wire mesh.
Hot dip galvanized welded wire mesh panel fence sheet details:
Packaging & Shipping
Hot dip galvanized welded wire mesh panel sheet fence package details:
Standard length: 1-8m;
Standard width: 0.5-3m
Special sizes available at request

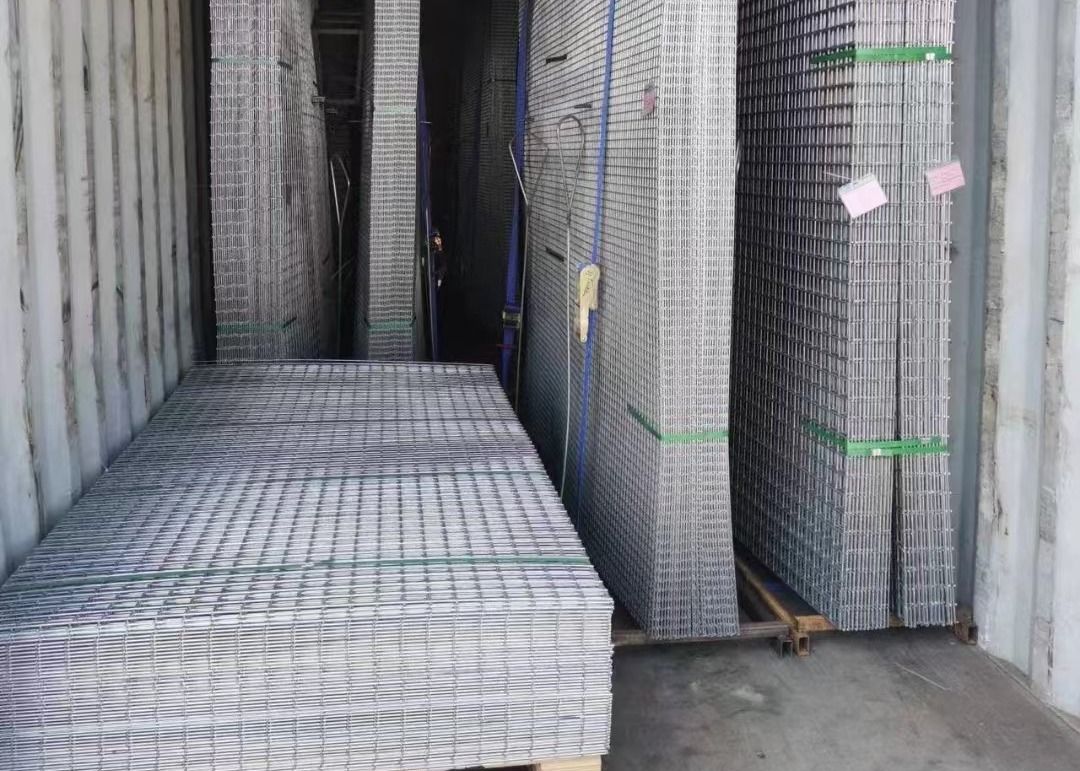

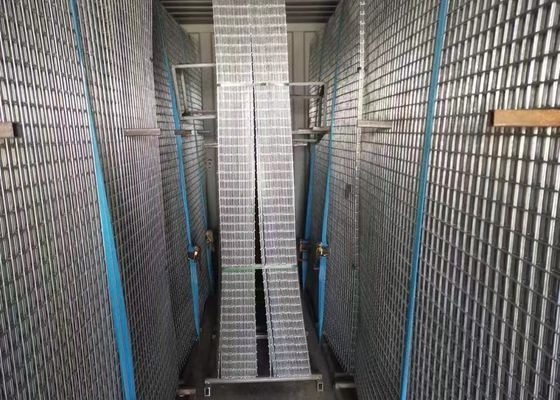

Packing: in pallet then in a container. Custom packing available at request.
Characteristics:
Galvanized Welded Mesh Panels offer excellent characteristics such as corrosion resistance, oxidation resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance. Besides this kind of product has flat even surface and strong structure, therefore this product has a long service life.
Welded wire mesh panel application:
for wire mesh fence panel , wire mesh guard , wire mesh deck, agriculture fence protection, poultry cage , bird cage , rabbit cage , mining industry protection fence , construction wire mesh panel, steel reinforcing mesh ,
