Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| High Light: | reinforcing 6 gauge welded wire mesh,construction 6 gauge welded wire mesh,fencer wire gauge welded wire mesh 2 inch 4 inch |
||

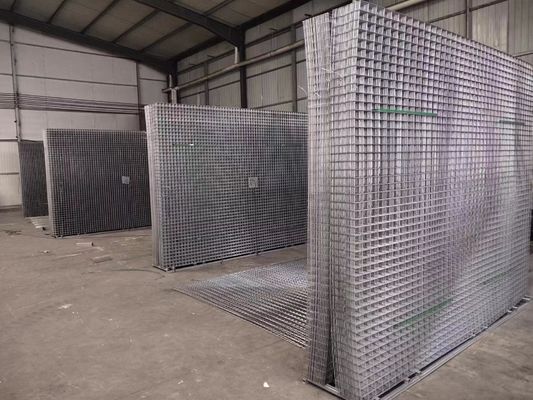

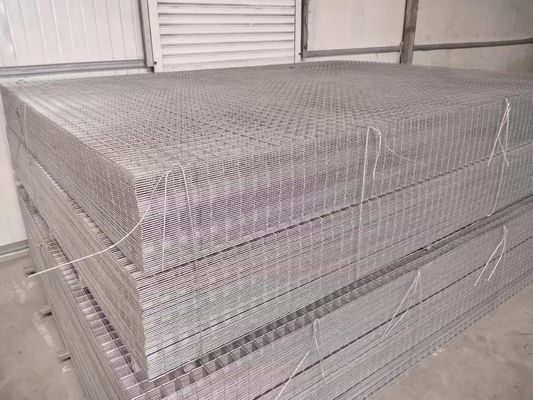

10 X 10 Cm High Reinforcing Galvanized Welded Wire Mesh Sheet for Construction
This kind of welded wire mesh panel is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Welded wire mesh panel, or welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.
Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
Hot dipped zinc coated welded wire mesh panel is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
Hot Dipped Galvanized After/Before Welding;
Electro Galvanized After/Before Welding;
PVC Coating With Green, Black, Color, Etc.
Welded Mesh made of Stainless Steel Wire.
| Mesh | Wire Diameters | Max.Width | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| 3/4" x 3/4" | 19.05mm x19.05mm | 0.9mm-2.0mm | 1.5m |
| 1" x 1" | 25.4mm x 25.4mm | 0.5mm-4.00mm | 2.5m |
| 1" x 1/2" | 25.4mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| 2/3” x 2/3” | 16.9mm 16.9mm | 0.9mm-1.8mm | 1.5m |
| 5/8" x 5/8" | 15.87mm x15.87mm | 0.8mm-1.2mm | 1.5m |
| 3/4" x 3/4" | 19.05mm x19.05mm | 0.9mm-2.0mm | 1.5m |
| 1" x 1" | 25.4mm x 25.4mm | 0.5mm-4.00mm | 2.5m |
| 1" x 1/2" | 25.4mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| Wire Diameter | Mesh | Width | |
| inch | mm | ||
| 2.0mm ~ 3.2mm | 1" | 25.40 | 0.914m ~ 1.83m |
| 2.0mm ~ 4.5mm | 2" | 50.80 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 3" | 70.20 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 4" | 101.6 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 5" | 127.0 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 6" | 152.4 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 7" | 177.8 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 8" | 203.2 | 0.914m ~ 2.75m |
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
1. in bulk
2. plastic film or woven on both of the sides
3. on pallet
4. customized
Use: The welded wire mesh is a metal screen that is made up of low carbon steel wire or stainless steel wire. It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country. The company was founded in 1999 with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 22 stainless steel woven mesh machines, 28 welded wire mesh machines, 11 double twisted hexagonal gabion baskets machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines. Qijie does sales both home and abroad with annual amount of more than $ 20 million, the main products are stainless steel fly screen mesh, fence panels, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products. Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice
