Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| High Light: | 1 2 electro welded wire mesh,floor heating electro welded wire mesh,stainless steel welded wire mesh 1 2 inch |
||

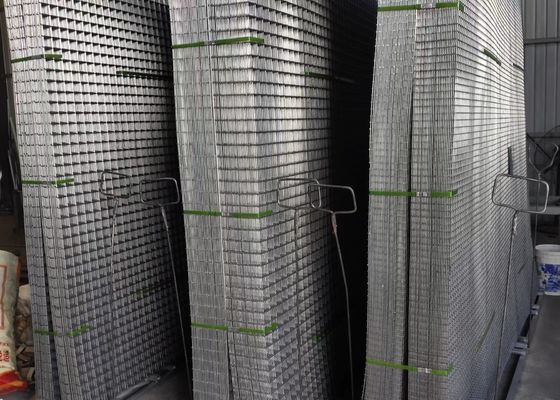

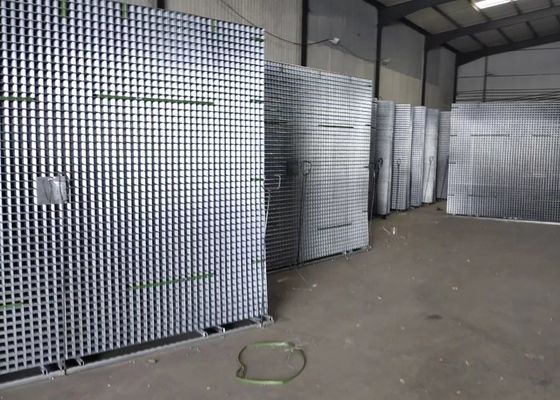

2*2 Hot DIP Galvanized Welded Wire Mesh Panel Gaw Wire Mesh Panel for Construction for Floor Heating
Welded Wire Mesh Panel is made of superior quality galvanized iron wire or stainless steel wire, then welded with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Welded wire mesh made of high quality low carbon steel wire.The adoption plates the zinc craft after welding,it is made from high-quality iron wire by automatic equipment.The finished welded wire mesh offer flat and uniform surface, firm structure, good integrity.The mesh does not come loose even if cut in parts or being exerted force on parts .Compared with general iron wire,the products are better in respects of anti-corrosive and anti rust.
Hot dipped zinc coated welded wire mesh panel is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
Hot Dipped Galvanized After/Before Welding;
Electro Galvanized After/Before Welding;
PVC Coating With Green, Black, Color, Etc.
Welded Mesh made of Stainless Steel Wire.
| Mesh | Wire Diameters | Max.Width | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| 3/4" x 3/4" | 19.05mm x19.05mm | 0.9mm-2.0mm | 1.5m |
| 1" x 1" | 25.4mm x 25.4mm | 0.5mm-4.00mm | 2.5m |
| 1" x 1/2" | 25.4mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| 2/3” x 2/3” | 16.9mm 16.9mm | 0.9mm-1.8mm | 1.5m |
| 5/8" x 5/8" | 15.87mm x15.87mm | 0.8mm-1.2mm | 1.5m |
| 3/4" x 3/4" | 19.05mm x19.05mm | 0.9mm-2.0mm | 1.5m |
| 1" x 1" | 25.4mm x 25.4mm | 0.5mm-4.00mm | 2.5m |
| 1" x 1/2" | 25.4mm x 12.7mm | 0.5mm-2.0mm | 2.5m |
| Wire Diameter | Mesh | Width | |
| inch | mm | ||
| 2.0mm ~ 3.2mm | 1" | 25.40 | 0.914m ~ 1.83m |
| 2.0mm ~ 4.5mm | 2" | 50.80 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 3" | 70.20 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 4" | 101.6 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 5" | 127.0 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 6" | 152.4 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 7" | 177.8 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 8" | 203.2 | 0.914m ~ 2.75m |
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
Usage: widely used in industry, farming, construction, transportation and mining for protection of structure, roof protection , safety segregation, keeping of poultry , like chicken cage, rabbit cage, and livestock, and decorations etc.
