Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel Sheet | Application: | Protecting Mesh, Fence Mesh |
|---|---|---|---|
| Finish: | Hot Dipped Galvanized | Coil Outside Diameter: | 960mm |
| Extended Length: | 15m | Name: | Concertina Razor Wire |
| High Light: | bto-22 concertina razor wire,450mm concertina razor wire,bto-22 concertina barbed wire |
||
We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc
Assortment: razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
Concertina razor wire, razor barbed wire , mainly used for safety scope.
Material
Electro galvanized core wire and blade
hot-dipped galvanized core wire and blade
stainess steel core wire and blade
PVC coated core wire and blade
Specifications:
| Reference number | Thickness | Wire Dia | Barb length | Barb width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Specification of concertina razor wire | ||||
| Outside diameter | No.of loops | Standard length per coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
How to produce razor barbed wire ?

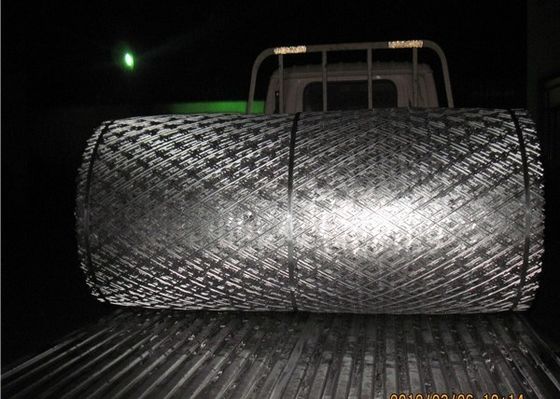

Packing for razor barbed wire
Looking for ideal Barbed Tape Single Strand Manufacturer & supplier ? We has a wide selection at great prices to help you get creative. All the Razor Ribbon Wire are quality guaranteed. We are China Origin Factory of Single Concertina Razor Wire. If you have any question, please feel free to contact us.
