Product Details:
Payment & Shipping Terms:
|
| Material: | T316 | Wire Diameter: | 0.8mm |
|---|---|---|---|
| Mesh: | 11 X 11 | Surface Finish: | Powder Coated |
| Color: | Black, Grey, Nature | Size: | 0.75 X 2.0 M, 0.9 X 2.0 M, 0.9 X 2.4 M, 1.2 X 2.0 M, 1.2 X 2.4 M |
| High Light: | powder coated insect fly screen mesh,12 mesh window mesh insect screen,ss 316 window mesh insect screen |
||

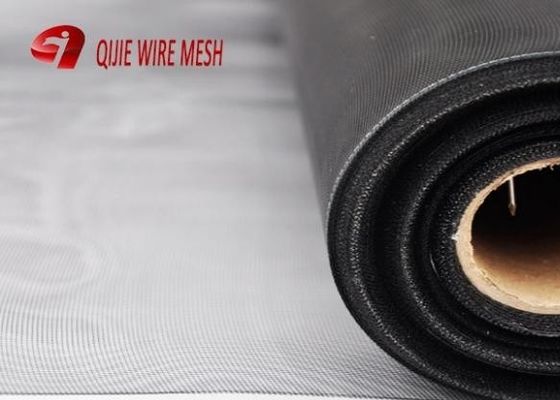

12mesh Black Powder Coated Stainless Steel 316 Security Insect Screen
Stainless steel window screen also known as stainless steel insect screen, is made of durable and high-quality 304, 304 L, 306, 306 L stainless steel wire. It is extremely a popular item for its versatility and practicability, and many customers put it into many different places for using.
Stainless steel window screen with a long service life is physically strong and stable. Because of the characteristic of resisting the corrosion, rust, heat, alkaline, it can be used in the harsh environments for windows, doors and porches to prevent the insects.
| Material | Stainless steel wire 304, 304L, 316, 316L |
| Weaving | Plain weave and twilled weave |
| Wire diameter | 0.10 mm - 0.26 mm |
| Hole size | 14 × 14, 16 × 16, 18 × 14, 18 × 18, 20 × 20 |
| Width | 2', 3', 4', 5', 6', 7' |
| Length | 30', 50', 100' and so on |
| Color | Black, gray, steel gray, color can be customized |
| NOTE | Other sizes are available as special orders |
| MODEL | WIRE DIAMETER | MESH COUNTS | DISTANCE OF HOLE | USAGE |
| 304L Ordinary mesh | 0.12mm | 24x22 mesh | 1.1mm | Thinner for anti-mosquito, anti-insect |
| 304L Thickened mesh | 0.15mm | 22x20 mesh | 1.1mm | Large dosage, anti-mouse, anti-mosquito, anti-insect, recommended |
| 304L special dense mesh | 0.15mm | 26x24 mesh | 0.9mm | Anti-rat, anti-all kinds of small mosquitoes |
| 304L Extra thick mesh | 0.19mm | 22x20 mesh | 1.1mm | Anti-rat, anti-all kinds of small mosquitoes |
| 316L thickened mesh | 0.16mm | 22x20 mesh | 1.1mm | Anti-rat, anti-mosquito, anti-small animal, strong anti-corrosion |
| 304L Extremely thick mesh | 0.23mm | 22x20 mesh | 1.1mm | Anti-mosquito, anti-big mouse, anti-small animal |
Products Details:
| advantage | Safe and environmental protection,fine anti-mosquito, high strength, dust-free, beautiful and transpar long life. |
| Scope of use | Screen Door, screen window, screen fan, partition screen. |
| Mesh | 18x16,18X14,18X18 reinforced aluminum alloy screen |
| Diameter | 0.13 mm, 0.14 mm, 0.15 mm, 0.16mm. |
| Color | Black |
| Width | 0.6m,0.8m,1m,1.2m,1.5m |
| Length | 30m |
The favourite size of window screen
| Material: | Stainless Steel AISI 304 |
| Mesh count per inch: | 18 × 14 |
| Wire diameter: | 0.22mm |
| Width of roll: | 1.22 meters |
| Length: | By the linear meter, cut to length required |
| Product name | Specification | Introduction | ||
| Mesh/Inch | Wire Gauge | Roll Size | ||
| Stainless Steel Window Screen | 14 × 14 | BWG38 BWG37 BWG36 BWG35 BWG34 |
3" × 100" 4" × 100" 1 × 25M 1.2 × 25M |
Material: ss304, ss316, ss316L |
| 16 × 16 | ||||
| 18 × 18 | ||||
| 18 × 14 | ||||
| 20 × 20 | ||||
1.304 stainless steel
2.The aperture is uniform and the net surface is smooth
3.High strength and toughness
4.Complete specifications, support customization
5.Corrosion resistance and pressure resistance
6.Good filtering performance, durable use
