Reinforcing Steel Ribbed Bar Welded Mesh in Concrete Slabs
Black Steel Bar Welded Wire Mesh is a pre-fabricated steel bar mesh used for concrete reinforcing in various construction projects. We supply high-grade steel bar welded grid/mat black finish or galvanized for additional corrosion protection.
1. Wire diameter: Ribbed steel bar ranging from 3mm to 8mm in diameter.
2. Opening: 4" x 4" is a common size, smaller and larger sizes are also available.
3. Finishes: The mesh can be black steel bar mesh, and galvanizing can be added.
4. Materials: Low-carbon steel or mild steel.
MAIN PRODUCTS
RIBBED STEEL BAR WELDED MESH, 100X100MM
Bar material: Ribbed Steel Bar A400 NR from diameter 6mm to 32mm
Ribbed Steel Bar A400 NR Welded Mesh Panel 2300x5800mm
Mesh sizes: 100x100mm
Steel Bar: 8mm
Hole shape: Square
STEEL BAR WELDED WIRE MESH, 1.5MX5.8M PANEL
Black wire, None galvanized
Mesh size: 100mm/200mm
Wire diameter: 5.8mm
Panel size : 1.5mx5.8m
RIBBED STEEL BAR WELDED MESH PANEL, 100X200MM
Mesh size: 100x200mm
Steel Bar: 8mm
Hole shape: Rectangular
Ribbed Steel Bar A400 NR
RIBBED STEEL BAR WELDED MESH, 200X200MM
Mesh size: 200x200mm
Steel Bar 8mm
Hole shape: Square
Ribbed Steel Bar A400 NR Welded Mesh Panel 2300x5800mm
RIBBED BAR WELDED SQUARE MESH
Mesh size: 3000x2400, D8, space 100
Min 500Mpa Yield Strength
WELDED DEFORMED BAR MESH SHEET
Wire: 6mm diameter deformed bar
Mesh size 150mmx150mm
Sheet sizes 1.2x2.4 meter/4x8ft
|
Specification of Welded Wire Mesh
|
||
|
Opening
|
Wire Diameter
BWG
|
|
|
In inch
|
In metric unit(mm)
|
|
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
|
5/8" x 5/8"
|
16x 16mm
|
BWG21-18
|
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
BWG19-14
|
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
|
Roll Width: 0.4m to 2m; Roll Length: 5m,10m,30m,etc
|
||
|
Material: galvanized, PVC coated, stainless steel
|
||
|
Note: Special specifications can be made according to customers requires
|
||
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
Surface Treatment:
Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
Electric galvanizing after weaving
Weaving with electric galvanized iron wire
PVC coated welded wire mesh
Technical Note:
1, Standard roll length: 30m; Width: 0.5m to 1.8m
2, Special sizes available at request

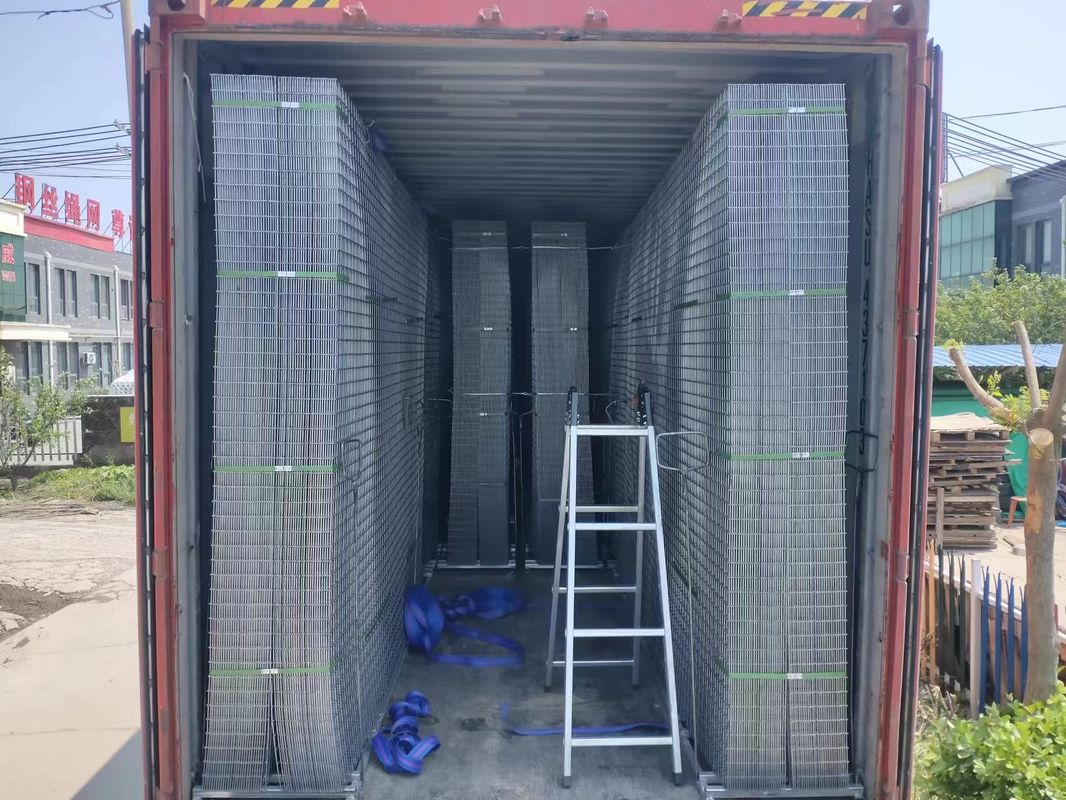

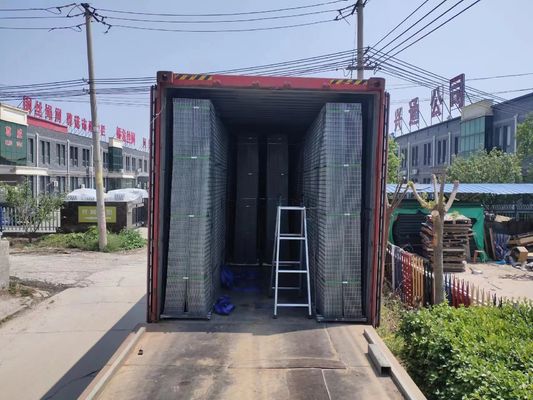

3, Packing: In waterproof paper in rolls. Custom packing available at request.
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
