| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| High Light: | 100 x 100mm galvanised mesh sheets,welded galvanised mesh sheets,100 x 100mm galvanized wire mesh panels |
||

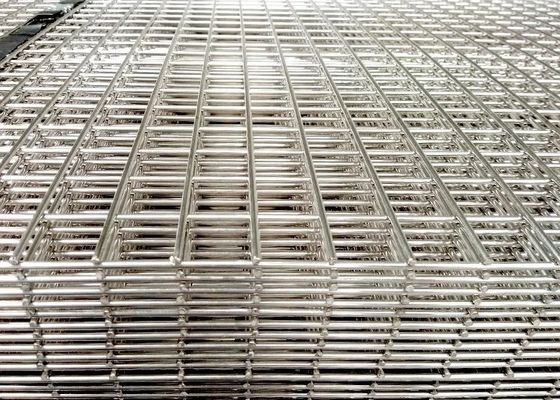

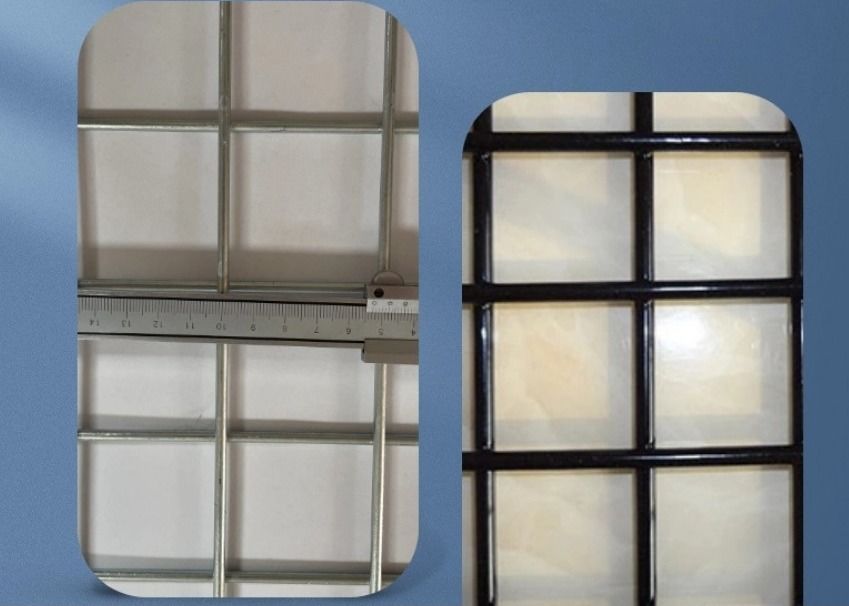

100 X 100mm Galvanized Welded Wire Mesh Panel
Welded wire mesh panels material: black iron wire , galvanised before welding, galvanised after welding, hot-dipped galvanised welding, PVC coated, PE Coated,Powder coating.
| Wire Diameter mm | Opening mm | Opening mm | Panel Length m | Panel Width m |
| 10 | 100-500 | 30-300 | 1-6 | 0.5-2.2 |
| 9 | 100-500 | 30-300 | 1-6 | 0.5-2.2 |
| 8 | 100-500 | 30-300 | 1-6 | 0.5-2.2 |
| 7 | 50-200 | 20-300 | 1-6 | 0.5-2.2 |
| 6 | 50-200 | 20-300 | 1-6 | 0.5-2.2 |
| 5 | 50-200 | 10-200 | 1-6 | 0.5-2.2 |
| 4 | 30-200 | 10-200 | 1-6 | 0.5-22 |
| 2-4 | 25-100 | 10-200 | 1-6 | 0.5-2.2 |
| Other specifications parameter size support customization | ||||
| Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m ) | |
| Opening in inch | Wire diameter (bwg) |
| 1/4 '' x 1/4 '' | 22 , 23, 24 |
| 3/8 '' x 3/8 '' | 19 , 20 , 21 , 22 |
| 1/2 '' x 1/2 '' | 16 , 17 , 18 , 19 ,20 , 21 , 22 , 23 |
| 5/8 '' x 5/8 '' | 18 , 19 , 20 , 21 |
| 3/4 '' x 3/4 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1 '' | 16 , 17 , 18 , 19 |
| 1 '' x 1/2 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1/4 '' | 14 , 15 , 16 , 18 |
| 1 '' x 2 '' | 14 , 15 , 16 |
| 2'' x 2 '' | 7, 8, 9 , 10 , 11,12 |
| 4'' x 4'' | 7, 8, 9 , 10 , 11,12 |
| 6'' x 6'' | 7, 8, 9 , 10 , 11,12 |
|
Specification of Welded Wire Mesh
|
||
|
Opening
|
Wire Diameter
BWG
|
|
|
In inch
|
In metric unit(mm)
|
|
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
|
5/8" x 5/8"
|
16x 16mm
|
BWG21-18
|
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
BWG19-14
|
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
|
Roll Width: 0.4m to 2m; Roll Length: 5m,10m,30m,etc
|
||
|
Material: galvanized, PVC coated, stainless steel
|
||
|
Note: Special specifications can be made according to customers requires
|
||
Product Characters of welded wire mesh :
1 . Excellent heat resistant and high intensity .
2 . High strength and strong integration .
3 . Flat and smooth surface combined with firm structure .
4 . Perfect Anti - Rust Property .
5 . Stay Holistiv even cut into fragmented parts .
6 . Long Using Life
7 . Hot dipped galvanized after welded. Not black welded point, more zinc coated ensure it has better anti-rust and last longer. But it also lead to higher cost.
