| Material: | Stainless Steel Wire | Application: | Protecting Mesh Fencing |
|---|---|---|---|
| Technique: | Perforated Woven | Color: | Black White Yellow |
| Surface Treatment: | Hot Dipped Galvanized | Advantage: | Rich Experience Good Worker |
| High Light: | 50x75mm weld mesh fence panels,galvanized pvc weld mesh fence panels |
||

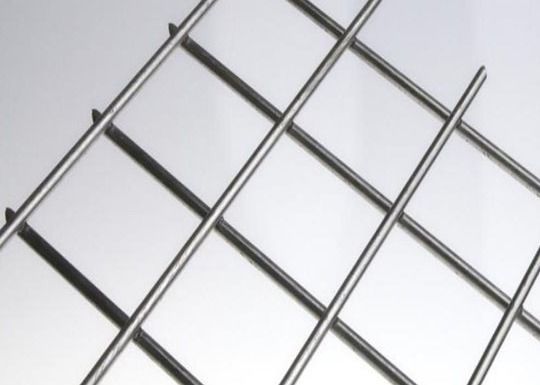

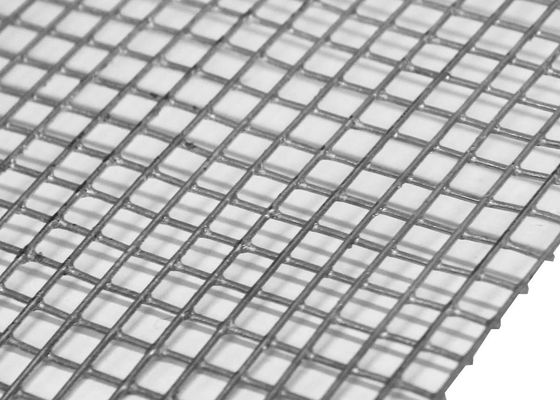

Galvanized or PVC Welded Fence Panel Gabion Wire Mesh Welded Panel
WELDED WIRE MESH is a metal wire screen that is made up of low carbon steel wire, galvanized wire or stainless steel wire. It is the term given to the kind of barrier fencing that is manufactured in square or rectangular mesh from steel wire, welded at each intersection.It is available in various sizes and shapes. It is widely used in agricultural, industrial, transportation, horticultural and food procuring sectors. It is also used in mines, gardening, machine protection and other decorations.
|
WELDED WIRE MESH
|
|
|
Material
|
low carbon steel wire/mill steel wire , galvanized wire, stainless steel wire, pvc wire
|
|
Surface treatment
|
galvanized ( hot dip galvanized before welded, hot dip galvanized after welded, electro galvanized before welded and electro galvanized after welded), pvc coated, powder coated
|
|
Wire diameter
|
0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, 2.7mm, 3mm, 3.5mm, 3.7mm, 4mm, 4.2mm, 4.5mm, 5mm, 6mm, we can do it as your request
|
|
Hole size
|
1/4", 1/2", 3/4", 1", 2", 50x75mm, 50x50mm, 75x75mm, 50x100mm, 100x100mm, 150x150mm, 50x200mm,or as your request.
|
|
Dimension
|
1000x2000mm, 1500x2000mm, 1000x3000mm, 2000x3000mm or as your request
|
| Remark | If you have a drawings, it is better |
| Welded wire mesh specification ( Standard length: 30m / roll , Width : 0.3m - 2.5m ) | |
| Opening in inch | Wire diameter (bwg) |
| 1/4 '' x 1/4 '' | 22 , 23, 24 |
| 3/8 '' x 3/8 '' | 19 , 20 , 21 , 22 |
| 1/2 '' x 1/2 '' | 16 , 17 , 18 , 19 ,20 , 21 , 22 , 23 |
| 5/8 '' x 5/8 '' | 18 , 19 , 20 , 21 |
| 3/4 '' x 3/4 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1 '' | 16 , 17 , 18 , 19 |
| 1 '' x 1/2 '' | 16 , 17 , 18 , 19 , 20 , 21 |
| 1 '' x 1/4 '' | 14 , 15 , 16 , 18 |
| 1 '' x 2 '' | 14 , 15 , 16 |
| 2'' x 2 '' | 7, 8, 9 , 10 , 11,12 |
| 4'' x 4'' | 7, 8, 9 , 10 , 11,12 |
| 6'' x 6'' | 7, 8, 9 , 10 , 11,12 |
|
Specification of Welded Wire Mesh
|
||
|
Opening
|
Wire Diameter
BWG
|
|
|
In inch
|
In metric unit(mm)
|
|
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG22-19
|
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG23-16
|
|
5/8" x 5/8"
|
16x 16mm
|
BWG21-18
|
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG21-16
|
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG21-16
|
|
1-1/2" x 1-1/2"
|
38 x 38mm
|
BWG19-14
|
|
1" x 2"
|
25.4 x 50.8mm
|
BWG16-14
|
|
2" x 2"
|
50.8 x 50.8mm
|
BWG15-12
|
|
2" x 4"
|
50.8 x 101.6mm
|
BWG15-12
|
|
4" x 6"
|
101.6 x 152.4mm
|
BWG15-12
|
|
6" x 6"
|
152.4 x 152.4mm
|
BWG15-12
|
|
6" x 8"
|
152.4 x 203.2mm
|
BWG14-12
|
|
Roll Width: 0.4m to 2m; Roll Length: 5m,10m,30m,etc
|
||
|
Material: galvanized, PVC coated, stainless steel
|
||
|
Note: Special specifications can be made according to customers requires
|
||
WELDED WIRE MESH FEATURE:
* Smooth mesh surface
* Well-proportioned meshes
* Strong welded points and bright luster
* Solder joint firm
* Anti-corrosive and anti-rust.
* Strong antiseptic antioxidant
* firm structure, even if local cutting section or partial pressure also does not happen slacken off phenomenon.
