Payment & Shipping Terms:
|Material:||Galvanized Steel Core Wire||Wire Diameter:||4.0mm, 4.5mm, 5.0mm|
|Mesh:||50x150mm, 50x200mm||Finish:||Powder Coated|
|Color:||Green, Black, White, Orange||Size:||2.5 X 1.8 M, 2.5 X 2.1 M, 3.0 X 2.0 M|
curved wrought iron fence panels,
curved wrought iron fence

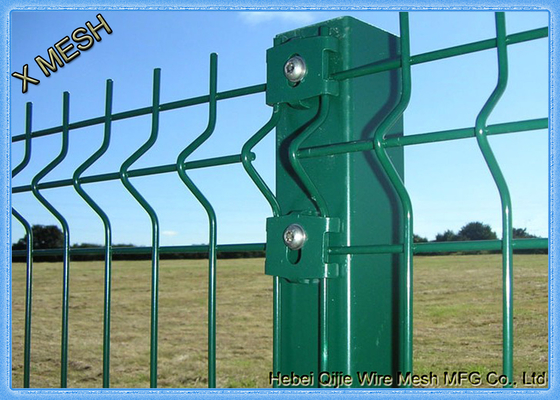

Powder Coated Wire Mesh Fence Panels , Perimeter Coated Welded Wire Fence Steel
Wire mesh fence panel is also called fencing wire mesh, safety fence and PVC coated fence. It is mainly used to make fencing enclosure and perimeter in industry, agriculture, commerce and construction.
Our fence panel is made of high-quality galvanized steel wire fence, by means of electric resistance welding into pieces, then PVC coated by a high temperature furnace or electrostatic spraying to enhance corrosion resistance.
There are two different technics: immersed in the powder and powder electrostatic spraying. The first one is to heat the panel in high temperature and immerse in the powder, then heat it to a much higher temperature and the PVC coating will be fused and bonded to the mesh; electrostatic spraying is much easier. We can use electrostatic machine to spray the powder into the mesh in normal atmospheric temperature. Both can get a good PVC coating, immersed coating thickness is 0.3-0.5mm, spray coating thickness of 0.1-0.2mm.
PVC color is generally dark green (RAL 6005), black (RAL 9005) and white (RAL 9010) and other colors can also be customized.
Perimeter Coated Welded Wire Fence Steel-drawing
Material: Low carbon steel wire and other materials
Process: Made through welding
Application: Fencing and protection for road, railway, airport, residence district, seaport, garden, feeding and husbandry
Product Features: Corrosion resistant, age resistant, sunshine proof, weather proof.
Surface treatment: Electric galvanized, Hot-dipped galvanized, PVC coated, Electric galvanized then PVC spraying, Electric galvanized then PVC coated.
|Fence Height(cm)||Panel Width||Wire Diameter||Mesh size(mm)||Folds No.||Post style||Post size(mm)||Post Length(cm)|
|2||Square post 1||40x60x1.5||150|
|153||2/3||Square post 2||60x60x1.5||200|
Playground galvanized welded wire mesh fence panels in 12 gauge
2x2 welded wire mesh fence panels in 6 gauge
2.4x2.1m powder coated galvanized steel welded wire temporary fence panel
10x10 reinforcing welded fence panels
358 reinforcing fence panels for security
Heavy gauge galvanized 2x4 welded panel
4mm welded mesh galvanized
Square Post Power Coated Welded Wire Fence Steel-P0001
Peach Post Perimeter Coated Welded Wire Fence Steel-P0002
Perimeter Coated Welded Wire Fence Steel-P0003
Perimeter Coated Welded Wire Fence Steel-P0004
Perimeter Coated Welded Wire Fence Steel-P0005
Perimeter Coated Welded Wire Fence Steel-P0006
Contact Person: Devin Wang
