Material: | ASTM Hot Galvanized Steel Wire | Color: | Green |
---|---|---|---|
Series: | Top Quality PVC Coated | Life: | Quite Long |
Mesh: | 50mm | Selvage: | Knuckled Or Twisted |
Highlight: | chain link fence panels,chain link fence privacy screen |

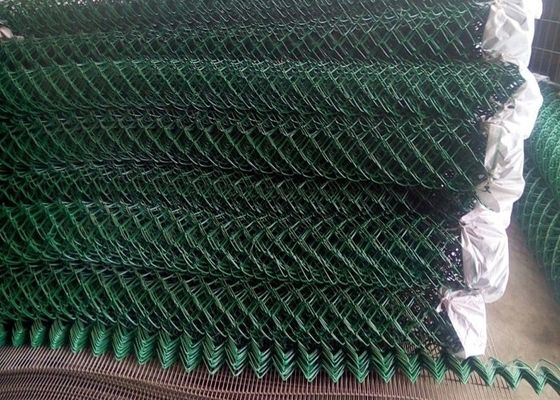

ASTM A392 Chain Link Fabric with PVC Coated for Engineerings
Chain Link Fabric

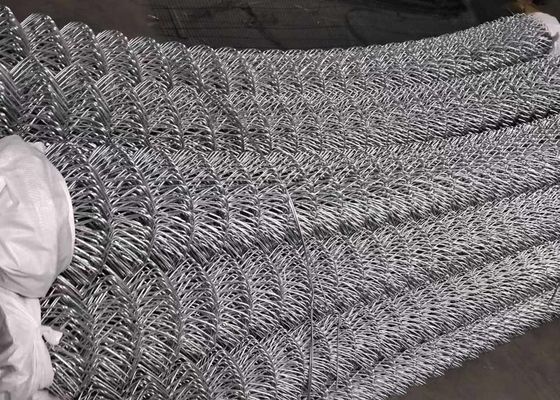

DescriptionWoven wire usually made from galvanized or PVC coated galvanized steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms characteristic diamond pattern seen in this type of fence.
Typical Specifications
Wire Diameter : 2mm (14-1/2GA by BWG or 14GA by USG) to 4.2mm (8GA by BWG or 8-1/2GA by USG).
Wire Tensile Strength : Wire Tensile is in the range of 35-55 Kgf
Zinc Coating : 40Gms to 610Gms
We adhere to ASTM A392 - 11a : Standard Specification for Zinc-Coated Steel Chain-Link Fence Fabric &
ASTM F668 – 11 : Standard Specification for Polyvinyl Chloride (PVC) and Other Organic Polymer-Coated Steel Chain-Link Fence Fabric.
Mesh Size : 25mm to 75mm
Height : 900mm to 4000mm
Selvage : Knuckled or Twisted.
Fabric with 2-in. [50.8mm] or 2-1/8-in. [54.0-mm] mesh, in heights less than 72 in [1829 mm], shall be knuckled at both selvages. Fabric 72 in. [1829 mm] high and over shall be knuckled at one selvage and twisted at the other. These are standard selvages. Other selvage combinations will be supplied only if specified by the purchaser.Usually selvages for fabrics less than 2-in. [50.8mm] shall be knuckled at both edge.
Nominal coated |
Available variance | Zinc coating weight, min. | Breaking strength minimum |
|||||||
Class 1 | Class 2 | |||||||||
ga | inch | mm | inch | mm | oz/ft2 | g/m2 | oz/ft2 | g/m2 | lbf | Newtons |
6 | 0.192 | 4.88 | +/- 0.005 | +/-0.13 | 1.20 | 366 | 2.00 | 610 | 2,170 | 9,650 |
9 | 0.148 | 3.76 | +/- 0.005 | +/-0.13 | 1.20 | 366 | 2.00 | 610 | 1,290 | 5,740 |
11 | 0.120 | 3.05 | +/- 0.005 | +/-0.13 | 1.20 | 366 | x | x | 380 | 1,690 |
