Wire Diameter: | 200micron | Size: | 48" X 100" |
---|---|---|---|
Material: | 304 Stainless Steel | Weave: | Dutch Weave |
Weave Type:: | Plain Weave, Twilled Weave, Dutch Weave | Uses:: | Mainly Used For Filtering And Sieving |
Highlight: | stainless woven mesh,stainless woven wire mesh |

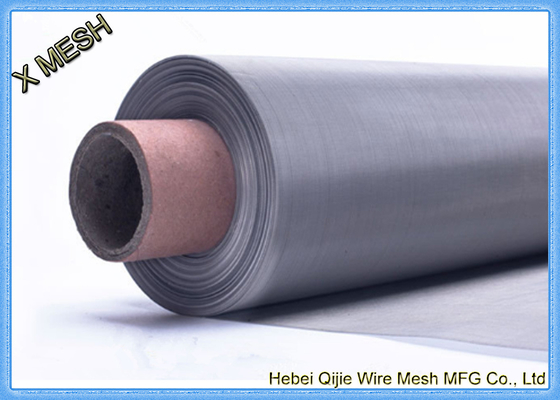

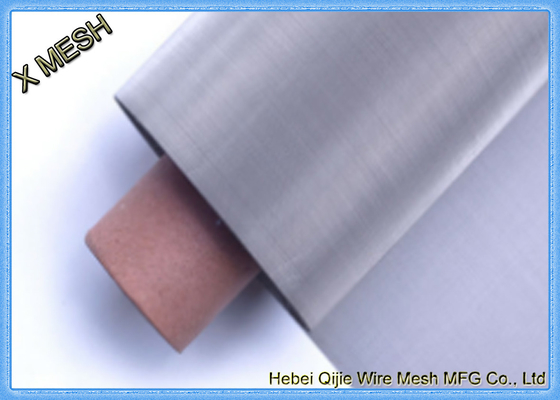

Dutch Weave 200 Micron 304 Stainless Steel Oil Filter Mesh Screen
Material: AISI304 AISI304L AISI316 AISI316L
Weave type: Plain weave, Twilled weave, Dutch weave
Features: Heat resisting,Corrosion resisting, Acid resisting
Uses:Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.
1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires
Specification
Stainless Steel Woven Wire Mesh (Plain Weave) | ||||||
mesh/inch | wire diameter(mm) | aperture(mm) | - | mesh/inch | wire diameter(mm) | aperture(mm) |
2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
50mesh | 0.19 | 0.318 | 400mesh | 0.25 | 0.0385 |
Stainless Steel Woven Wire Mesh(Twill Weave) | |||
mesh | wire diameter(mm) | aperture(mm) | material (AISI) |
250mesh | wire dia.0.040mm | 0.063 | 304 or 316 |
300mesh | wire dia.0.040mm | 0.044 | 304 or 316 |
325mesh | wire dia.0.035mm | 0.043 | 304 or 316 |
350mesh | wire dia.0.030mm | 0.042 | 304 or 316 |
400mesh | wire dia.0.030mm | 0.033 | 304 or 316 |
Stainless Steel Woven Wire Mesh(Dutch Weave) | ||
Mesh | Wire Dia. (MM) | Material(AISI) |
12meshX64mesh | 0.58/0.40 | 304 or 316 |
24meshX110mesh | 0.36/0.25 | 304 or 316 |
14meshX88mesh | 0.50/0.33 | 304 or 316 |
30meshX150mesh | 0.18/0.14 | 304 or 316 |
40meshX200mesh | 0.14/0.11 | 304 or 316 |
50meshX250mesh | 0.10/0.071 | 304 or 316 |
80meshX700mesh | 0.06/0.05 | 304 or 316 |
165meshX800mesh | 0.071/0.040 | 304 or 316 |
165meshX1400mesh | 0.05/0.032 | 304 or 316 |
200meshX1800mesh | 0.05/0.03 | 304 or 316 |
325meshX2300mesh | 0.030/0.025 | 316L |
400meshX2800mesh | 0.030/0.02 | 316L |
Weave type explanation
