Mine Sieving Sand Vibrating Screen Crimp Wire Mesh 0.8 - 8 Mm Aperture

Large Image : Mine Sieving Sand Vibrating Screen Crimp Wire Mesh 0.8 - 8 Mm Aperture

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	3mm

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	100pieces per week

Contact Now

Detailed Product Description

Material:	Black Wire, Spring Steel Wire, 65mn Manganese Steel Wire And Stainless Steel Wire	Aperture:	0.8 - 8 Mm
Size:	1.5mx2m	Install:	Hooked
Surface Treatment::	Galvanized Or Painted	Mesh Size:	1mm - 100mm
Hole Type:	Square, Rectangular And Long Slot.
High Light:	vibrating sieve screen , vibrating screen wire mesh

Mine Sieving Sand Vibrating Screen Crimp Wire Mesh

Product application:

Heavy industrial Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Material:stainless steel wire,galvanized wire,steel wire,non-ferrous metal wire
Opening:1-15cm
Diameter:1.5-6mm,0.2-12.7mm
used in petroleum, chemical, construction, textile, medicine, aviation, spaceflight, highway, railway, landscape protection, aquaculture, metallurgical machinery, etc.

Features:

Varied lengths
Require less maintenance
Sturdy construction

Application:
The Double Crimp Screen can be used in the following fields as:

Safety grids (e.g. car industry, mechanical engineering, building industry)
Filling elements for gates and fences in buildings and gardens
Booth construction
Plant breeding
Pigeon barriers
Noise protection

Specification:

No	Steel Grade	Chemical Composition
No	Steel Grade	C	Si	Mn
1	45	0.42-0.50	0.17-0.37	0.50-0.80
2	50	0.47-0.55
3	55	0.52-0.60
4	60	0.57-0.65
5	65	0.62-0.70
6	70	0.67-0.75
7	65Mn	0.62-0.70		0.90-1.20
8	72A	0.70-0.75	0.15-0.35	0.30-0.60

Mesh/inch	Wire Diameter		Aperture		Open Area	Weight(LB)/100square foot
Mesh/inch	Inch	MM	Inch	MM	Open Area	Weight(LB)/100square foot
2x2	0.063	1.6	0.437	11.1	76.4	51.2
3x3	0.054	1.37	0.279	7.09	70.1	56.7
4x4	0.063	1.6	0.187	4.75	56	104.8
5x5	0.041	1.04	0.159	4.04	63.2	54.9
6x6	0.035	0.89	0.132	3.35	62.7	48.1
8x8	0.028	0.71	0.097	2.46	60.2	41.1
10x10	0.02	0.51	0.08	2.03	64	26.1
12x12	0.023	0.584	0.06	1.52	51.8	42.2
14x14	0.023	0.584	0.048	1.22	45.2	49.8
16x16	0.018	0.457	0.0445	1.13	50.7	34.5
18x18	0.017	0.432	0.0386	0.98	48.3	34.8
20x20	0.02	0.058	0.03	0.76	36	55.2
24x24	0.014	0.356	0.0277	0.7	44.2	31.8
30x30	0.013	0.33	0.0203	0.52	37.1	34.8
35x35	0.011	0.279	0.0176	0.45	37.9	29
40x40	0.1	0.254	0.015	0.38	36	27.6
50x50	0.009	0.229	0.011	0.28	30.3	28.4
60x60	0.007	0.178	0.0097	0.25	33.9	20.4
70x70	0.0065	0.165	0.0078	0.2	29.8	20.8
80x80	0.0065	0.165	0.006	0.15	23	23.2
90x90	0.005	0.127	0.0061	0.16	30.1	15.8
100x100	0.0045	0.114	0.0055	0.14	30.3	14.2
110x110	0.004	0.1016	0.0051	0.1295	30.7	12.4

Carbon Steel Parameter:

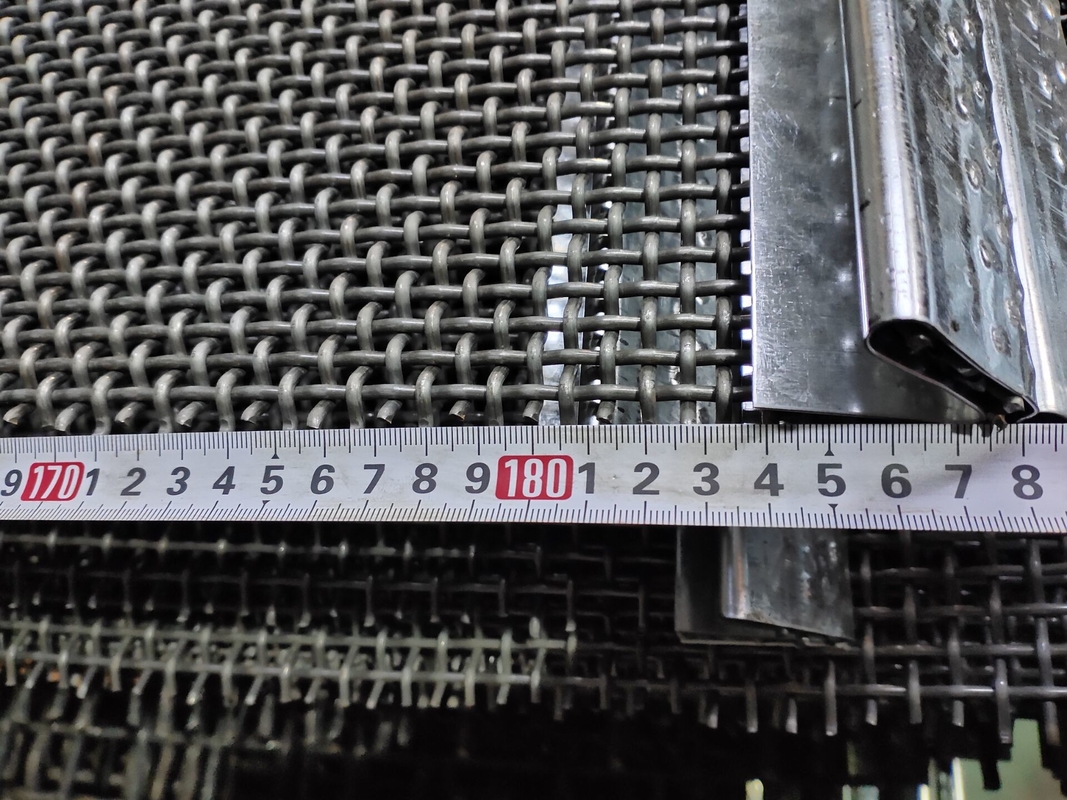

Mine Sieving Sand Vibrating Screen Crimp Wire Mesh 0.8 - 8 Mm Aperture 0

Photo:

vibrating screen mesh
