Payment & Shipping Terms:
|Material:||High Tensile Steel Wire||Wire Diameter:||6.0 Mm|
|Hole Shape:||Square||Weaving Type:||Plain Weave|
|Technic:||Woven Mesh||Tensile Strength:||800 - 1000 MPa|
self cleaning screen mesh,
vibrating screen wire mesh

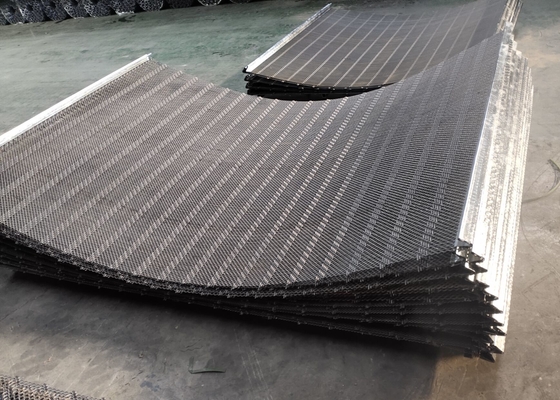

Rust and Wear Resistance Manganese Steel Vibrating Screen Mesh
Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.
Manganese steel vibrating screen is high tensile, wear and abrasion resistant and long service life.
Manganese steel vibrating screen mesh has high quality ductility and toughness. When it is strong impacted and abrased, the surface will have a strong work-hardening due to the plastic deformation. And the surface hardness can be increased to more than HRC60 so that it can obtain the high wear resistance. While the interior remains high plasticity and toughness. When the old surface is worn and torn, the new surface will form a wear-resistant layer. The average life of manganese steel vibrating screens 4 to 8 times of ordinary screen.
Manganese steel vibrating screen mesh is widely used for screening all kinds size of sand, gravel, coal, stone, rock, metal material and other ore material in mining, quarry, aggregate industries.
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.
High tensile screen cloth is commonly used in heavy duty applications for scalping and sizing of rocks,aggregates,limestone,etc.
They are weaved in sizes to suite most vibrating screens and available in:
* High Tensile Steel---Abrasion resistance
* Stainless Steel---Corrosion resistance
* Monel,Brass,etc---General applications
Plain Hooked Edge
Without Reinforcing, Edges are annealed before forming to eliminate cracking and breakage. Technical data R≥6, a=60°, H≥35mm, wire diameter common above 6mm to choose this edge.
Inside Reinforced Formed Edge
This hook edge type is utilized for screen mesh wire diameter 4mm or less than 6mm. Technical data: a=60°, H=25mm,L=25mm.
Reinforced Shroud Banded Edge
Lock vibrating screen Mesh Application:
Crimped wire mesh is used as fence or filters in a lot of industries; Heavy Duty Crimped wire mesh are also named Quarry Mesh, it is mostly used as screen in mining, coal factory.

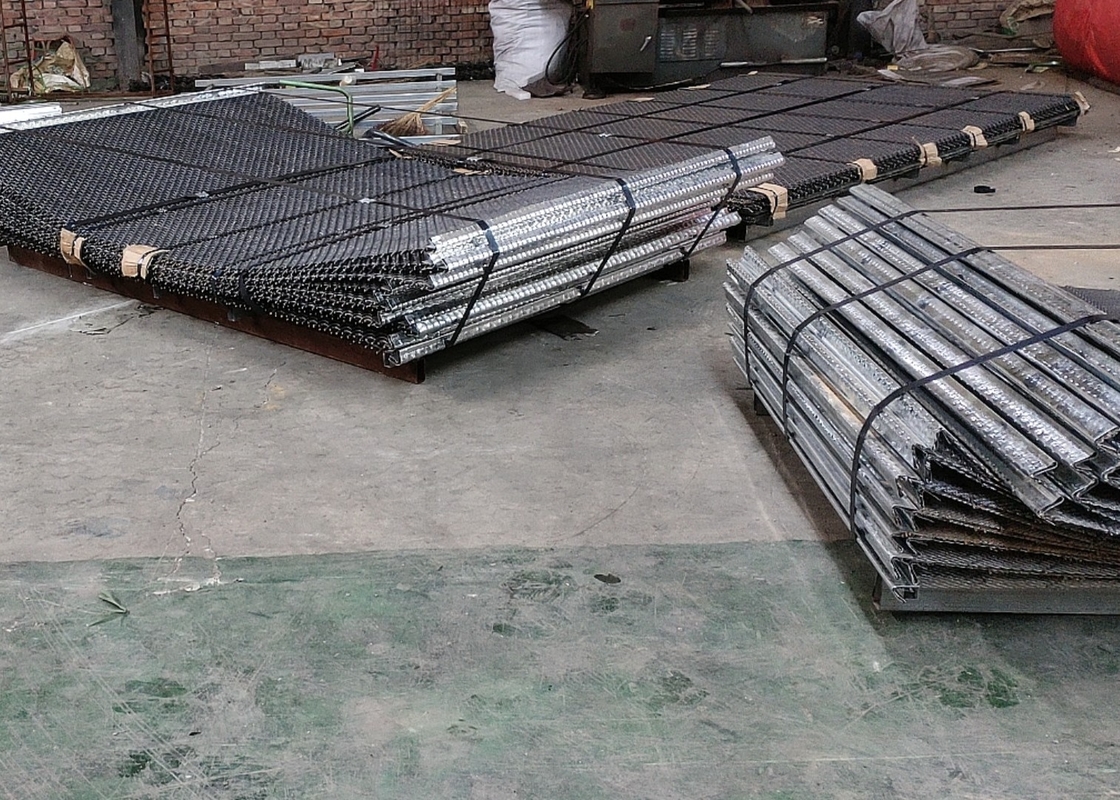

Manganese Steel Vibrating Screen Mesh
manganese steel vibrating screen mesh
|Specification List of Stainless Steel Wire Mesh|
|Mesh/Inch||Wire Gauge(SWG)||Aperture in mm|
|3mesh x 3mesh||14||6.27|
|4mesh x 4mesh||16||4.27|
|5mesh x 5mesh||18||3.86|
|6mesh x 6mesh||18||3.04|
|8mesh x 8mesh||20||2.26|
|10mesh x 10mesh||20||1.63|
|20mesh x 20mesh||30||0.95|
|30mesh x 30mesh||34||0.61|
|40mesh x 40mesh||36||0.44|
|50mesh x 50mesh||38||0.36|
|60mesh x 60mesh||40||0.3|
|80mesh x 80mesh||42||0.21|
|100mesh x 100mesh||44||0.172|
|120mesh x 120mesh||44||0.13|
|150mesh x 150mesh||46||0.108|
|160mesh x 160mesh||46||0.097|
|180mesh x 180mesh||47||0.09|
|200mesh x 200mesh||47||0.077|
|250mesh x 250mesh||48||0.061|
|280mesh x 280mesh||49||0.06|
|300mesh x 300mesh||49||0.054|
|350mesh x 350mesh||49||0.042|
|400mesh x 400mesh||49||0.0385|
|500mesh x 500mesh||50||0.0273|
ISO 14315 Industrial wire screens - Technical requirements and testing
ISO 4783/3 Industrial wire screens and woven wire cloth - Guide to the choice of aperture size and wire diameter combinations - Part 3: Preferred combinations for pre-crimped or pressure-welded wire screens
woven wire cloth
vibrating screen mesh
vibrating screen mesh-002
