0.5 Micron To 300 Micron 99.9% Tungsten Wire Mesh

Large Image : 0.5 Micron To 300 Micron 99.9% Tungsten Wire Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	aluminum crimped wire mesh

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets or wood case
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000 meter per week

Contact Now

Detailed Product Description

Wire Diameter:	2mm	Mesh Openning:	1/2" X 1/2"
Size:	1.20m Width X 100m Length	Name:	Tungsten Wire Mesh Cloth
Wire Materials::	Stainless Steel Wire	General Use::	Screening In Mine
Products Name:	30 M Length Aluminum Alloy Woven Wire Mesh For Melting Layer And Filter
Highlight:	stainless woven mesh , stainless woven wire mesh

0.5 Micron To 300 Micron 99.9% Tungsten Wire Mesh

Tungsten Mesh is made by weaving pure tungsten wire. Tungsten Mesh offers excellent high temperature mechanical characteristics and smallest coefficient of thermal expansion among all metals. It is used in the elevated temperature filtration applications. It has supreme thermal creeping resistance and maximum service temperature up to 3400oC. Tungsten mesh is extremely durable.

Tungsten Mesh Available Specifications:

Wire diameter: 0.03mm to 2mm

Opening size: 0.1mm to 25mm.

Sheet size: width up to 2000mm, no limit to length

Note: small samples of several sizes are available for testing purpose

Tungsten Mesh Applications:

Chemical industries, acid production, scientific research labs and universities, filter, vacuum apparatus, hydrogen production, fire hazard security and heat shielding.

Tungsten Mesh Property Data:

Atomic No.	74
Melting Point	3695 K or 3422oC or 6192oF
Boiling Point	6203 K or 5930 oC or 10706 oF
Density	19.25 g/cm3
Thermal expansion	4.5 µm/ (m.K) at 25oC
Thermal conductivity	173 W/m.K
Electrical resistivity	52.8 nΩ.m at 20oC
Young Modulus	411 GPa
Shear Modulus	161 GPa
Poisson Ratio	0.28
Vickers Hardness	3430 to 4600 MPa
Brinell Hardness	2000 to 4000 MPa

tungsten

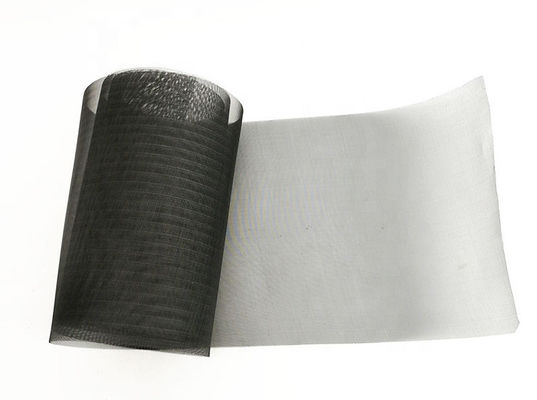

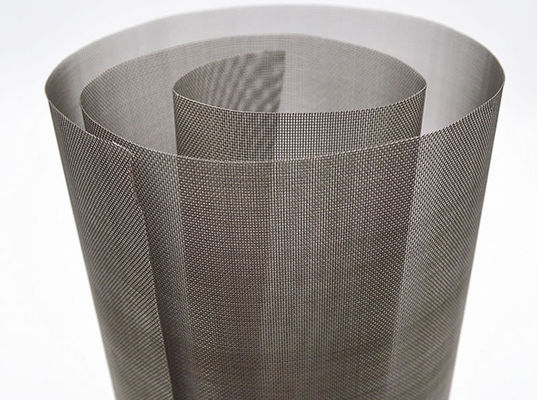

Tungsten Wire Mesh Cloth-001

Tungsten Wire Mesh Cloth-002

Tungsten Wire Mesh Cloth-003
