Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum,Galvanized Steel Wire | Application: | Screen,decoration |
|---|---|---|---|
| Type: | Perforated Mesh,Etching Or Stamping | Technique: | Perforated |
| Weave Style: | Perforated,Punched,Punching | Hole Shape: | Round,diamond,etc,plum Blossom,octagonal |
| Surface Treatment: | Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca | Color: | All The Color Chip Have,White,blue,Silver,golden |
| Product Name: | Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh | Thickness: | 0.5-8mm,0.3MM- 8MM |
| Feature: | Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance | Width: | 1m Or 1.22m,1.22 M Or Below |
| Usage: | Etc.,decorative,oil/air Filter,food | Length: | 2m Or 2.44m |
| Size: | Customized Size,standard | Shape: | Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon |
| Pitch: | 1.0mm-100MM,or As Request. | ||
| High Light: | galvanised grating,galvanised steel grating |
||

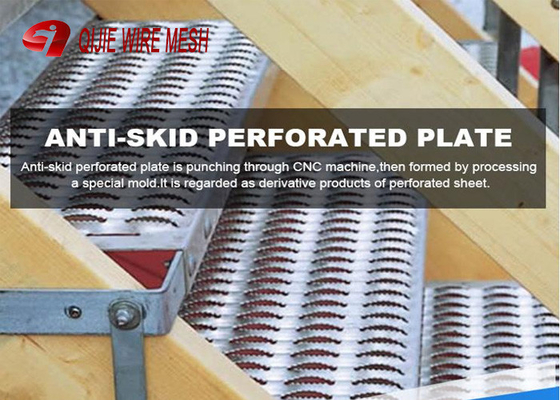

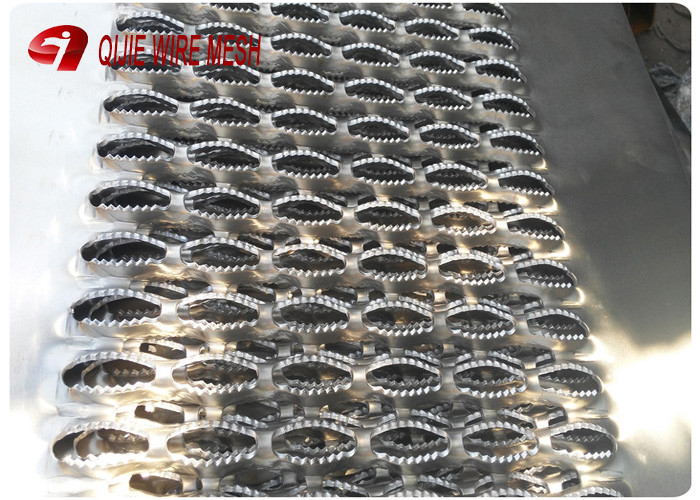

Crocodile Lips Grtp Strut Grating , Galvanized Steel Anti Skid Plate 180mm Width
Crocodile Lips Mouth Perforated Grtp Strut Grating Plates are available are 4-3/4" (2 diamond), 7" (3 diamond), 8-1/8" (3
diamond with abrasive nosing), 9-1/2" (4 diamond), 10-1/2" (4 diamond with abrasive nosing) and 11-3/4" (5 diamond) etc.
The lengths of the plunk gratings can be as your requirement.
Crocodile Lips Mouth Perforated Grtp Strut Grating Plates are one-piece modules manufactured with integral side toe boards projecting above the walking surface of the flooring.
Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical,
slip resistant options for long span walkways. Continuous spans can be accommodated by welding adjacent planks or
specifying splice plates as illustrated below.
| 2 Diamond / 9-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 2 Diamonds | 9-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 9-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 9-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 3 Diamond / 13-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 3 Diamonds | 13-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 13-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 13-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 5 Diamond / 23-1/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 5 Diamonds | 23-1/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 23-1/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 23-1/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 6 Diamond / 27-3/4" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 6 Diamonds | 27-3/4" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 27-3/4" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 27-3/4" | 4" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 8 Diamond / 36" Width | ||||
| Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
| 8 Diamonds | 36" | 1-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") |
| 36" | 2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 2-1/2" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
| 36" | 3" | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080"), 10 Ga. (.100") | |
Application of the perforated Grtp Strut Grating:
It's applies to secure channel, platform, stair treads in sewage treatment, waterworks,power plant,prospecting instrument
and other particular environment.
Characteristics of the perforated Grtp Strut Grating:
With non-slip, anti-rust, anti-corrosion, durable features and beautiful appearance. Punching hole type with raised herring
bone, raised crosswise, round, crocodilelips type, tear-type. These hole types are all CNC punching holes.
