Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel Wire | Technique: | Woven |
|---|---|---|---|
| Type: | Decorative Wire Mesh | Color: | Sliver |
| Product Name: | Stainless Steel Woven Metal Mesh | Feature: | Corrosion Resistance,beautiful,Easily Assembled |
| Length: | Customized | Name: | Decorative Wire Mesh,metal Mesh Curtain |
| Size: | As Your Requirement | ||
| High Light: | 1.4401 balustrade cable mesh,inox balustrade cable mesh,x tend balustrade cable mesh |
||
Classical Inox Balustrade Cable Mesh , X Tend Stainless Steel Rope Mesh Webnet
Balustrade Infill Cable Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; X-tend type cable mesh is custom manufactured to suit your balustrade, railing or architecture application ; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ;Diagonal and irregular shapes can also be supplied.
Cable Mesh by Yuntong made from stainless steel wires, and has skin-like characteristics.
It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.
X-TEND Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure.The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND – the mesh can even stand up to heavy loads.
| Material: | Stainless Steel 304 , 316 , 316L | Wire Rope: | 1.2 Mm To 4.0 Mm |
| Rope Constructions: | 7 X 7 , 7 X 19 , 1 X 19 | Finished: | Ultrasonic Bath / Black Oxide |
| Mesh Orientation: | Horizontal , Vertical | Product Name: | Inox X-tend Cable Mesh Webnet |
| Mesh Shape: | Rhombus , Diamond | Application: | Staircase Security , Balustrade Infill , Railing Safety |
| Panel Size: | Customized In Width And Length | Mesh Angle: | 60 Degree |
| Mesh Style: | X-tend In Ferruled Type |
Common Specifications:
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | QJ-1235 | ||||
| 25 x 42mm | QJ -1225 | QJ -1625 | |||
| 30 x 52mm | QJ -1230 | QJ -1630 | QJ -2030 | ||
| 35 x 60mm | QJ -1235 | QJ -1635 | QJ -2035 | ||
| 38 x 66mm | QJ -1238 | QJ -1638 | QJ -2038 | QJ -2438 | |
| 40 x 69mm | QJ -1240 | QJ -1640 | QJ -2040 | QJ -2440 | QJ -3040 |
| 50 x 86mm | QJ -1250 | QJ -1650 | QJ -2050 | QJ -2450 | QJ -3050 |
| 60 x 104mm | QJ -1260 | QJ -1660 | QJ -2060 | QJ -2460 | QJ -3060 |
| 70 x 120mm | QJ -1270 | QJ -1670 | QJ -2070 | QJ -2470 | QJ -3070 |
| 76 x 131mm | QJ -1276 | QJ -1676 | QJ -2076 | QJ -2476 | QJ -3076 |
| 80 x 138mm | QJ -1280 | QJ -1680 | QJ -2080 | QJ -2480 | QJ -3080 |
| 90 x 154mm | QJ -1290 | QJ -1690 | QJ -2090 | QJ -2490 | QJ -3090 |
| 100 x 173mm | QJ -12100 | QJ -16100 | QJ -20100 | QJ -24100 | QJ -30100 |
| 120 x 206mm | QJ -12120 | QJ -16120 | QJ -20120 | QJ -24120 | QJ -30120 |
Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Recommended Balustrade Infill Cable Wire Mesh
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 1/16" (1.6MM) | 2.5" x 2.5" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 2" x 2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
Picture show

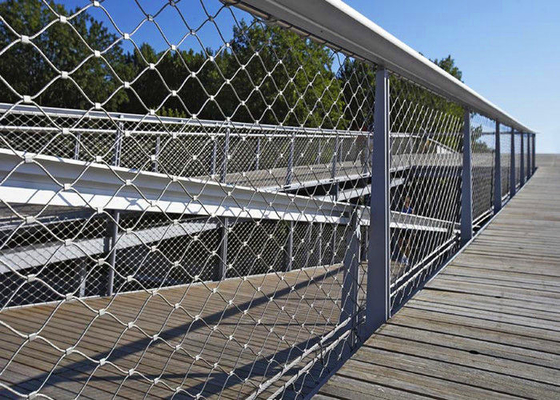

stainless steel wire rope mesh

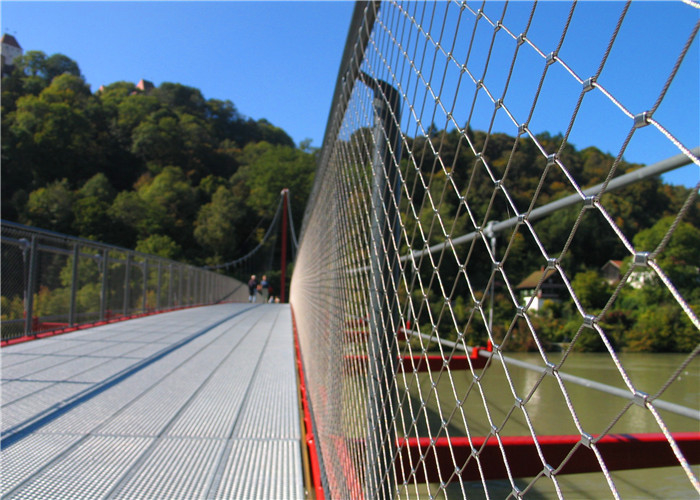

stainless steel wire rope mesh

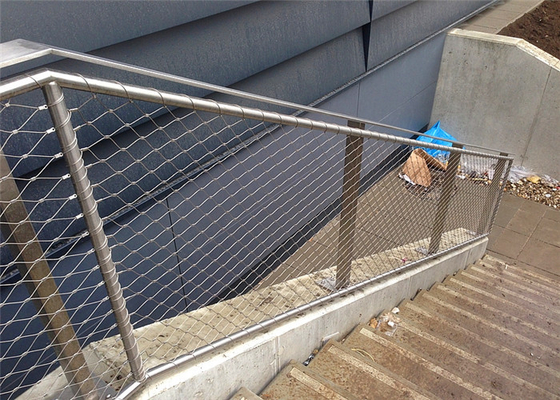

stainless steel wire rope mesh
