Product Details:
Payment & Shipping Terms:
|
| Application:: | Fence Mesh | Material:: | Low-Carbon Iron Wire |
|---|---|---|---|
| Surface Treatment:: | Hot Dipped Galvanized | Color:: | RAL Colors |
| Wire Gauge:: | 4.0mm-6.0mm | Aperture:: | 200*50mm |
| Hole Shape:: | Rectangle | Type:: | Welded Mesh |
| High Light: | curved wrought iron fence panels,curved wrought iron fence |
||
200*50mm Hot Dipped Galvanized 3D curved Wire Mesh Fence for Road and Transit
| Wire Diameter(mm) | 3.00-8.00 |
| Panel Height(mm) | 830, 1230, 1500, 1530, 1700, 1730, 1800, 1830, 1900, 2000, 2030, 2230, 2400, 2430, etc. |
| Panel Width(mm) | 2000, 2250, 2500, 2900, etc. |
| Hole Size(mm) | 50*50, 50*100, 50*150, 50*200, 55*100, 55*200, 60*150, 65*100, 65*200, 75*150 |
| Post Style | square post, round post, rectangle post, peach post, etc. |
Extraordinary and fashionable design,convenient installation.The fence panels are jointed with the post without any clamps,and it is easy and convenient.
Popular Specification
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold No. | Post's Height | Post Model | ||
| FixⅠ | FixⅡ | FixⅢ | ||||||
|
4.0mm 4.5mm 5.0mm 5.5mm 6.0mm
|
200*50mm 200*55mm 200*60mm 200*65mm |
2.0m 2.255m 2.5m 3.0m |
0.635m | 2 | 0.9 | 0.7 | 1.0 |
XLFP-01 "H"Shape Post XLFP-02 "V"Shape Post XLFP-05 Peach Shape Post |
| 0.835m | 2 | 1.2 | 0.9 | 1.2 | ||||
| 1.035m | 2 | 1.4 | 1.1 | 1.4 | ||||
| 1.235m | 2 | 1.6 | 1.3 | 1.6 | ||||
| 1.435m | 2 | 1.8 | 1.5 | - | ||||
| 1.535m | 3 | 1.9 | 1.6 | - | ||||
| 1.635m | 3 | 2.0 | 1.7 | - | ||||
| 1.735m | 3 | 2.2 | 1.8 | - | ||||
| 1.835m | 3 | 2.3 | 1.9 | - | ||||
| 1.935m | 3 | 2.4 | 2.0 | - | ||||
| 2.035m | 4 | 2.5 | 2.1 | - | ||||
| 2.235m | 4 | 2.8 | 2.3 | - | ||||
| 2.435m | 4 | 3.0 | 2.5 | - | ||||
Surface Treatment
| Surface Treatment | Min. | Max. |
| Hot Dipped Galvanized | 20g/m² | 600g/m² |
| Powders Sprayed Coating | 35g/m² | 700g/m² |
| PVC/PE Dipped Coating | 400microns | 600microns |

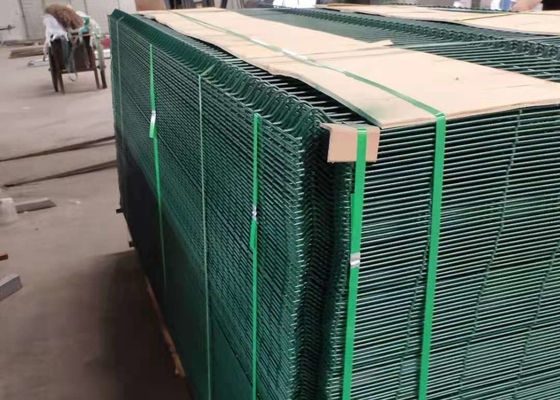

It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;
It has 4 metal corners to keep the pallet more strong;
It has metal plate under the plastic bandage to reduce the pressure of fence panels;
It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

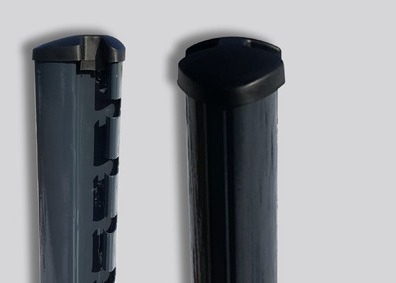

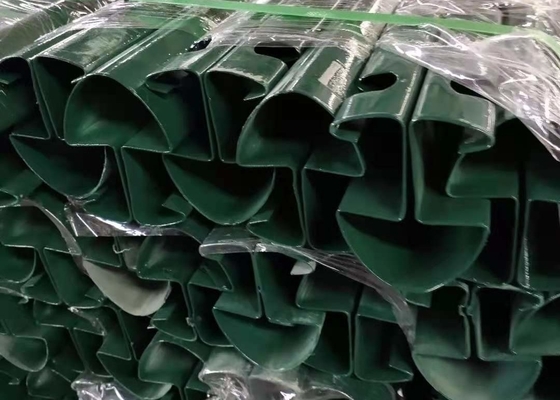

pvc coated peach post for curved mesh panels

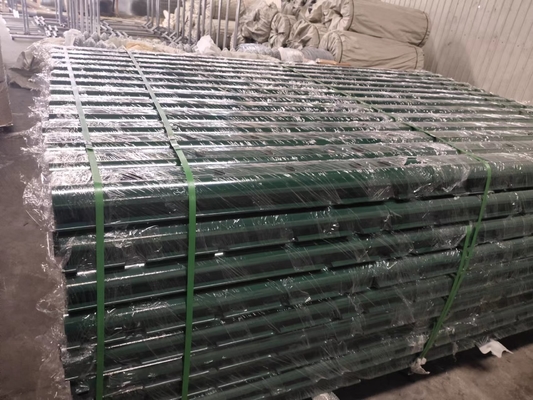

hot dipped galvanized peach post for curved mesh panels
