Product Details:
Payment & Shipping Terms:
|
Wire Diameter: | 5micron | Size: | 0.914m X 30m |
---|---|---|---|
Material: | UNS S31000 - 310 | Weave: | Dutch Woven |
Mesh: | 40mesh | Technique: | Woven |
Application: | Woven Wire Mesh,Filters,Screen,Decorative Wire Mesh,Protecting Mesh | Type: | Weave Wire Mesh,Wire Cloth,Crimped Wire Mesh,Rope Mesh |
Weave Style: | Plain Weave,twill Weave,Plain/Twill Weave,Plain/twill/dutch Weave,Dutch Weave | ||
High Light: | 0.009" Wire Ss Filter Mesh,1000 Micron Ss Filter Mesh,0.009" Ss304 Filter Mesh |

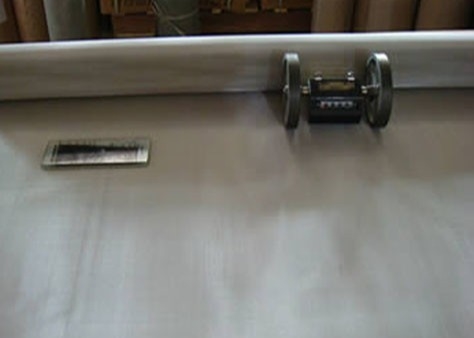

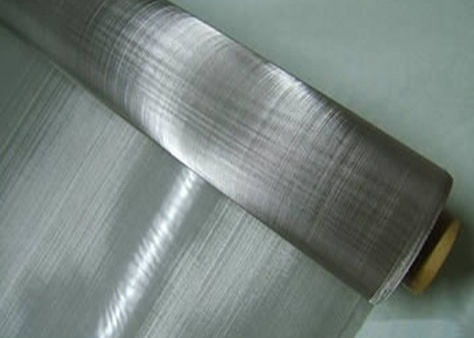

304 20mesh 1000 Micron 0.009" Wire Stainless Steel Filter Fine Mesh Screen
Wire mesh filter cloth mainly refers to wire mesh products made with Dutch woven patterns. Our factory is an expert in woven wire mesh, especially custom and special type wire mesh filter cloth Dutch woven. Dutch Woven Wire Cloth can be further divided into mainly four types according to weaving patterns:
Dutch Woven Wire Mesh Filter Cloth mainly refers to wire cloth made of stainless steel wire: Stainless Steel Wire Mesh (Cloth),SUS302, 304, 304L, 316, 316L.
It can also be supplied in other metals including brass, copper and other alloy materials.
Dutch Woven Wire Mesh Filter Cloth Property: This kind of woven wire mesh is wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Wire Mesh Filter Cloth Uses:
Stainless Steel Dutch Woven Wire Cloth and other materials are utilized as filter fittings for chemical industry, medicine, petroleum, telecommunication, scientific research units and so on.
Wire Mesh Filter Cloth Dutch Woven | ||||
Gauge No. | Mesh/Inch (Warp × Weft) | Wire Diameter (Warp × Weft) |
Reference Aperture (um) |
Weight/sq. (kg) |
32# | 8 × 62 | 0.63mm × 0.45mm | 300 | 5.42 |
40# | 10 × 79 | 0.50mm × 0.355mm | 250 | 3.16 |
48# | 12 × 64 | 0.58mm × 0.40mm | 280 | 2.9 |
55# | 14 × 88 | 0.40mm × 0.30mm | 180 | 2.54 |
76# | 19 × 140 | 0.315mm × 0.20mm | 140 | 1.88 |
80# | 20 ×300 | 0.35mm × 0.20mm | - | 3.6 |
95# | 24 × 110 | 0.355mm × 0.25mm | 120 | 2.45 |
100# | 25 × 140 | 0.28mm × 0.20mm | 100 | 1.95 |
120# | 30 × 150 | 0.25mm × 0.18mm | 80 | 1.68 |
140# | 35 × 175 | 0.224mm × 0.16mm | 71 | 1.52 |
160# | 40 × 200 | 0.20mm × 0.14mm | 60 | 1.40 |
180# | 45 × 250 | 0.16mm × 0.112mm | 56 | 1.09 |
200# | 50 × 250 | 0.14mm × 0.11mm | 53 | 1.04 |
220# | 55.5 × 280 | 0.14mm × 0.10mm | 50 | 0.92 |
240# | 65 × 330 | 0.11mm × 0.08mm | 36 | 0.71 |
280#(1) | 70 × 350 | 0.11mm × 0.08mm | 35 | 0.72 |
280#(2) | 70 × 385 | 0.11mm × 0.07mm | 32 | 0.75 |
300# | 78 × 700 | 0.11mm × 0.08mm | 30 | 1.39 |
315#(1) | 80 × 400 | 0.10mm × 0.065mm | 40 | 0.62 |
315#(2) | 80 × 600 | 0.10mm × 0.06mm | - | - |
315#(3) | 80 × 800 | 0.15mm × 0.04mm | - | - |
320# | 81 × 780 | 0.10mm × 0.07mm | 30 | 1.22 |
354# | 90 × 550 | 0.12mm × 0.05 | - | - |
Roll width: 1-1.6m |
Wire Mesh Filter Cloth Dutch Woven | ||||
Gauge No. | Mesh/Inch (Warp × Weft) | Wire Diameter (Warp × Weft) |
Reference Aperture (um) |
Weight/sq. (kg) |
360# | 91 × 787 | 0.10mm × 0.10 | 25 | 1.24 |
400# | 101 × 900 | 0.10mm × 0.10 | 20 | 1.22 |
472# | 120 × 400 | 0.10mm × 0.10 | - | - |
500# | 127 × 1100 | 0.07mm × 0.07 | 17 | 0.81 |
630# | 160 × 1500 | 0.063mm × 0.063 | 15 | 0.62 |
650#(1) | 165 × 400 | 0.017mm × 0.017 | - | - |
650#(2) | 165 × 600 | 0.017mm × 0.017 | - | - |
650#(3) | 165 × 800 | 0.017mm × 0.017 | 25 | - |
650#(4) | 165 × 1100 | 0.017mm × 0.017 | - | - |
650#(5) | 165 × 1400 | 0.017mm × 0.017 | 16 | 0.76 |
685# | 174 × 700 | 0.063mm × 0.063 | 13 | 0.61 |
787#(1) | 200 × 600 | 0.071mm × 0.071 | - | - |
787#(2) | 200 × 800 | 0.071mm × 0.071 | - | - |
787#(3) | 200 × 1400 | 0.071mm × 0.071 | 12 | 0.8 |
795# | 202 × 1760 | 0.05mm × 0.05 | 10 | 0.6 |
850# | 216 × 1860 | 0.045mm × 0.045 | 9 | - |
1000# | 254 × 2000 | 0.04mm × 0.04 | 8 | 0.5 |
1125# | 285 × 2235 | 0.036mm × 0.036 | 7 | - |
1228# | 312 × 2100 | 0.035mm × 0.035 | - | - |
1250# | 318 × 2235 | 0.036mm × 0.036 | - | - |
1280# | 325 × 2300 | 0.035mm × 0.035 | 5 | 0.45 |
1575# | 400 × 3100 | 0.035mm × 0.035 | 3 | - |
Roll width: 1-1.6m |
