| Material: | Stainless Steel | Mesh Openning: | 40mesh |
|---|---|---|---|
| Disc Diameter: | 6" | ||
| High Light: | 3 x 40 mesh filter mesh packs,multi layers filter mesh packs,stainless steel extruder filter mesh packs |
||

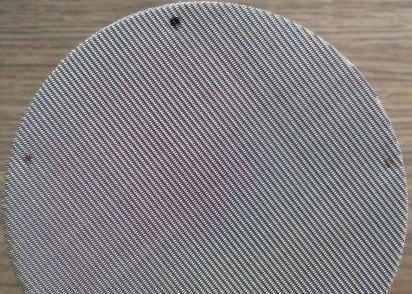

Multilayer extruder screen packs with spot welded or frame edges
Multilayer Extruder Screen packs are the different wire meshes cut to desired shapes and sizes, and then assembled properly and spot welded with each other to form multilayer packs.
Multilayer screen packsare extra strong, sturdy and convenient for problem free processing. They are assembled in proper sequence to eliminate operator error. The screen pack even prevents any foreign particles in the molten mass from going through the extrusion process. This type of extruder screen is suitable for fine extrusion, and it makes extrusion more clean and clear.
Extruder Screen Mesh packs are mainly made from high quality SS 316, SS304L meshes ranging from 4 mesh to 500 mesh up to 5 microns, and used for Plastic and Rubber Industry. Their edges styles cover spot welded edges and aluminum framing around the spot welded edges.
Extruder screen packs specification
Layers :2 , 3 ,4, 5 layers, or other more layers.
Material: Stainless steel(ss302, ss304, ss316, ss316L) woven wire cloth, copper wire cloth, galvanized wire mesh, aluminum alloy, and nickel alloys.
Shapes: round, oval, rectangle, elliptical shape
Packs Diameter 20mm - 900mm
Frame style: with and without frame and spot welding
Layers: Single layer,two layers,multi-layers.
Edge: With or Without Framework.
Woven Mesh Range:
(1)Wire Diameter:0.025-3.4mm
(2)Aperture Size:0.026-23.4mm
(3)Weave Type:Plain Weave (3-300 Mesh); Twilled Weave(20-635 Mesh); Dutch Weave (7x40mesh-325x2300 mesh)
Characteristics:high strain ability, filtration capacity ,precise fitting filter elements , optimum cost-performance ratio, long lifespan.
Spot Welded Packs
This multilayer extruder screens packs are welded together at precise points. They are excellent for use in any filtration and assembled in proper sequence to eliminate operator error. The number and location of spot welds can be customized for your process.

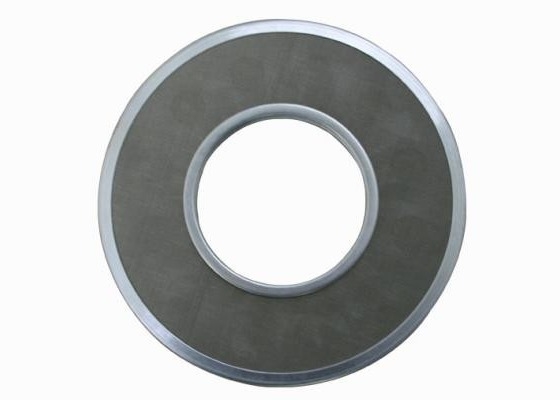

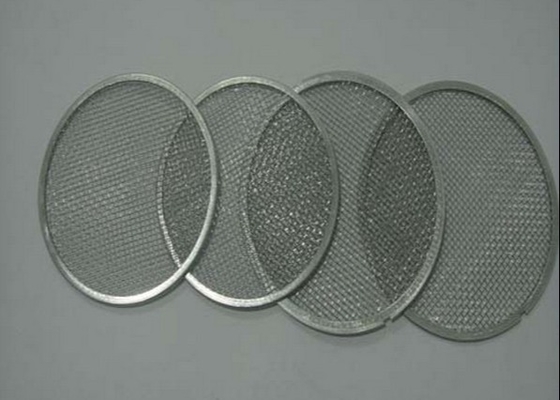

Framed Packs
This type of screen packs are spot-welded packs that have an aluminum or stainless steel border added to them to give the filter extra rigidity and strength. They are suitable for operating at high pressures or if there is a danger of contamination getting around the edge of the breaker plate.
Application:
Multilayer extruder screen pack filters are widely use in very fine and thin extrusion process for high quality petrochemical, plastic, rubber, chemical, pharmaceutical, brewage, beverage, aeronautic industries & also in water treatment plant, mechanical, food processing industries.
| Mesh Count | Wire Diameter (mm) | Aperture (mm) |
|---|---|---|
| 6 × 6 | 0.900 | 3.31 |
| 10 × 10 | 0.56 | 1.98 |
| 20 × 20 | 0.4 | 0.9 |
| 30 × 30 | 0.28 | 0.57 |
| 40 × 40 | 0.224 | 0.411 |
| 50 × 50 | 0.20 | 0.31 |
| 60 × 60 | 0.16 | 0.263 |
| 80 × 80 | 0.14 | 0.178 |
| 100 × 100 | 0.112 | 0.142 |
| 120 × 120 | 0.09 | 0.122 |
| 150 × 150 | 0.063 | 0.109 |
| Specification of Stainless steel filter mesh screen | |||
Mesh |
Wire Dia. (MM) |
Opening (MM) |
Material (AISI) |
7 |
1.00 |
2.63 |
304 or 316 |
10 |
0.60 |
1.94 |
304 or 316 |
12 |
0.50 |
1.62 |
304 or 316 |
16 |
0.40 |
1.19 |
304 or 316 |
16 |
0.35 |
1.24 |
304 or 316 |
18 |
0.35 |
1.06 |
304 or 316 |
20 |
0.40 |
0.87 |
304 or 316 |
24 |
0.26 |
0.80 |
304 or 316 |
30 |
0.30 |
0.55 |
304 or 316 |
35 |
0.17 |
0.56 |
304 or 316 |
40 |
0.23 |
0.40 |
304 or 316 |
50 |
0.20 |
0.31 |
304 or 316 |
60 |
0.15 |
0.27 |
304 or 316 |
70 |
0.12 |
0.24 |
304 or 316 |
80 |
0.13 |
0.19 |
304 or 316 |
90 |
0.12 |
0.16 |
304 or 316 |
100 |
0.10 |
0.15 |
304 or 316 |
120 |
0.09 |
0.12 |
304 or 316 |
150 |
0.063 |
0.11 |
304 or 316 |
180 |
0.053 |
0.09 |
304 or 316 |
200 |
0.053 |
0.07 |
304 or 316 |
220 |
0.05 |
0.065 |
304 or 316 |
250 |
0.04 |
0.062 |
304 or 316 |
270 |
0.035 |
||
