Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 9gauge | Surface Treatment: | Galvanized |
|---|---|---|---|
| Length: | 10' | Width: | 2'' 4'' 6'' 8'' 10'' 12'' 14'' |
| Material: | Stainless Steel Wire,Galvanized Steel Wire,Black Wire Mesh | Application: | Screen,Woven Wire Mesh |
| Weave Style: | RDW | Technique: | Perforated |
| Type: | Weave Wire Mesh,Expanded Mesh | Color: | Sliver |
| High Light: | 10"x2" brick wall reinforcing mesh,9 gauge brick wall reinforcing mesh,hdg stainless steel brick reinforcement mesh |
||
Hot Dipped Galvanized 9 Gauge Brick Wall Reinforcing Mesh
Masonry mesh, also called masonry wall reinforced mesh, is used for concrete construction reinforcement, normally used for the wall reinforcement. It is a welded and fabricated steel reinforcing structure which is laid in the bed joint to strengthen masonry panels without thickening the wall. It can prevent or reduce cracking in walls by bonding the masonry units together so as to strengthen the masonry panel where it is installed.
Product Specification

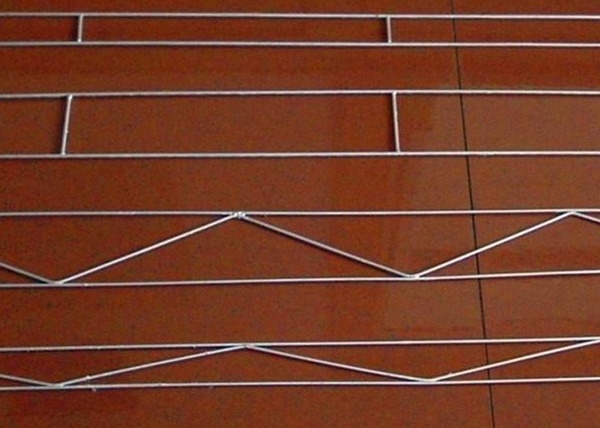

Ladder mesh
Truss mesh reinforcement
T shape masonry mesh
Brick welded mesh
Expanded Metal Reinforcement
Features
Packaging & Delivery
| Item | Standard Length | Width | Finishes |
|---|---|---|---|
| WRMS-1 | 10' (3.05 m) | 2" (50 mm) | Uncoated Electro Galvanized Hot Dipped Galvanized After Fabrication Stainless Steel |
| WRMS-2 | 4" (100 mm) | ||
| WRMS-3 | 6" (150 mm) | ||
| WRMS-4 | 8" (200 mm) | ||
| WRMS-5 | 10" (250 mm) |
All ladder mesh products conform to:
ASTM A641 - (Electro galvanized )
ASTM A153 Class B2 - (Hot dipped after fabrication)
ASTM A 82 - (Cold drawn steel wire)
Tensile Strength:80,000 PSI;Yield Point:70,000 PSI minimum; Reduction of Area:30 %.
ASTM A951-96 - (Masonry wall reinforcing)
ASTM 580 Type 304 - (Stainless steel)

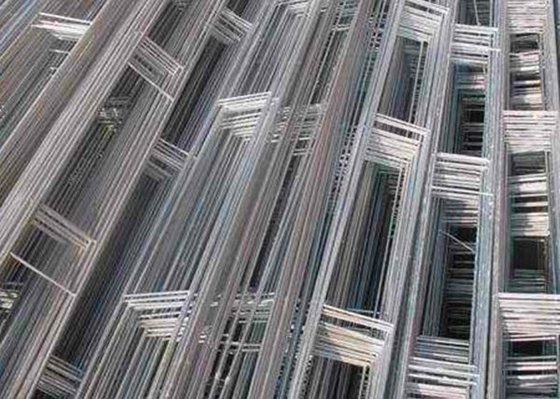

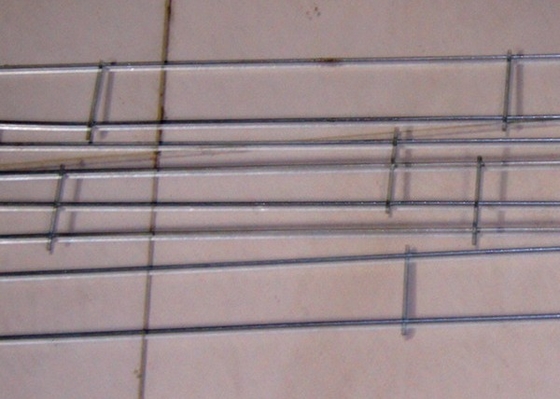

Ladder mesh reinforcement also called Brick Wall Reinforcement Mesh is welded wire sheet for reinforced masonry construction. It is used in building surface, wall, ground, bridge, bank and airport. And its feature is that welding spots of warp wire and weft wire are on the same surface.
Wire Diameter: 2.5-6.0 mm
Width: 5cm-27cm
Length: 3mm.
Spacing: 40cm
Surface Treatment of Ladder Mesh: Can be divided into five types:
Welded after hot dipped galvanized;
Welded after electro galvanized;
Welded before electro galvanized;
Welded before hot dipped galvanized;
Welded by stainless steel wire.
General Technical Information:
Weight: 2kg-10kg.
Usage: Masonry wall construction.
Materials Available: hot dipped galvanized steel, electro galvanized steel or stainless steel. Wire diameter: from 2.5mm to 6mm.
Truss Mesh Structure Width: 5cm, 10cm, 15cm, 20cm.
Structure Length: 3mm.
Wire Spacing: 40cm.

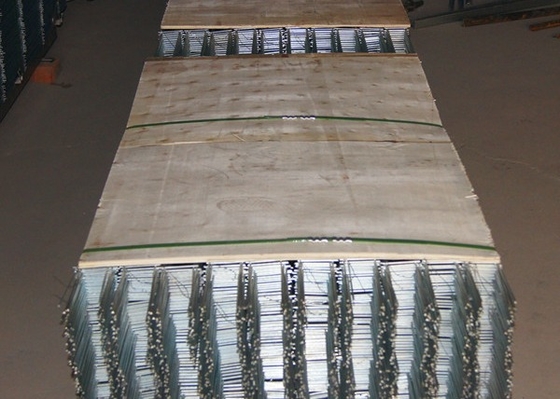

PACKING INFORMATION:
Benefits:
Features:
Applications
|
Block Ladder Mesh-BLM001 |
Block Ladder Mesh-BLM002 |
|
Block Ladder Mesh-BLM003 |
Block Ladder Mesh-BLM004 |
|
Brick Wall Reinforcement Mesh-BWRM001 |
Brick Wall Reinforcement Mesh-BWRM002 |
|
Brick Wall Reinforcement Mesh-BWRM003 |
Brick Wall Reinforcement Mesh-BWRM004 |
