| Material: | Metal Wire | Surface Treatment: | Galvanized Or Powder Coated |
|---|---|---|---|
| Wire Diameter: | 5.0mm | Mesh Openning: | 2" X 4" |
| Length: | 3000mm | Height (mm): | 50 |
| Width(mm): | 50 | ||
| High Light: | 4mm wire mesh cable tray,powder coated wire mesh cable tray,4mm welded wire mesh cable tray |
||

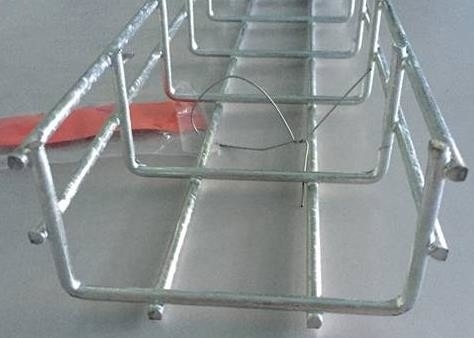

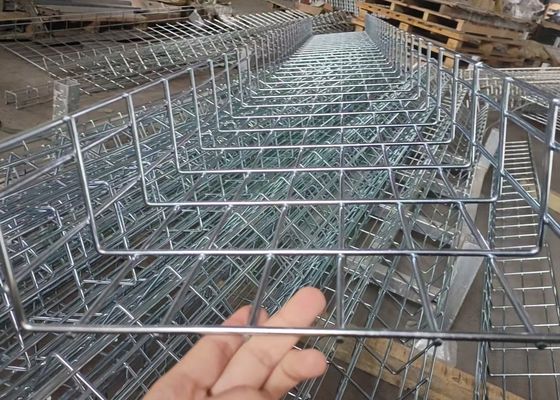

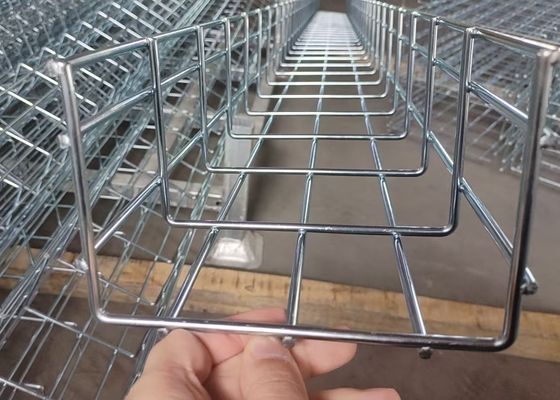

Galvanized or Powder Coated 4mm Wire Mesh Cable Tray 50mm(H),150mm(W),Sd /3m
Cable Tray concept based upon performance, safety and economy; three qualities which make Cablofil Wiremesh Cable Tray system preferred by installers. Cablofil adapts to the most complex configurations, and its structure gives maximum strength for minimum weight. The ease of creating fittings, carried out on site, as well as the wide range of unique and universal accessories gives complete freedom in routing combined with exceptionally fast installation.
The Double Tier Cable Basket, mounted on the underside of the desk, provides a sturdy and effective cable management system for your workstation.
| Stainless Steel Mesh Cable Basket Tray | |
| Width | 50mm~700mm |
| Length | Maximum 3000mm |
| Side Rail Height | 25mm,50mm,75mm,100mm,125mm,150mm |
| Max. Working Load | Depends on the wire diameter , material |
| Surface Finish | Electro-galvanized, Hot Dip galvanized, Powder coating |
| Warranty | 10 years for electro zinc plated wire mesh cable tray |
| Color | Depend on Surface Finishing |
| Application environment | Outdoor, high corrosion occasions, indoor |
| Welding strength test | According to wire mesh cable tray's international standard |
| Two type of Stainless Steel Mesh Cable Basket Tray | |
 |
it is designed to be the simplest, most cost effective wire mesh cable tray management system available. itis manufactured utilizing high strength steel wire, providing a strong, yet lightweight support system.
it support of sensitive fiber optic and communication cables for indoor installation. |
|
Power coated wire mesh cable tray
The surface bring colors in your cable management system long time uselife.
Smooth round wires minimize dust buildup and cable snagging. |
 |
| Item | Height (mm) |
Width (mm) |
Length (mm) |
Diameter (mm) |
|---|---|---|---|---|
| WMCT50-01 | 50 | 50 | 3000 | 5 |
| WMCT50-02 | 50 | 100 | 3000 | 5 |
| WMCT50-03 | 50 | 150 | 3000 | 5 |
| WMCT50-04 | 50 | 200 | 3000 | 5 |
| WMCT50-05 | 50 | 300 | 3000 | 5 |
| WMCT50-06 | 50 | 400 | 3000 | 5 |
| WMCT50-07 | 50 | 450 | 3000 | 5 |
| WMCT50-08 | 50 | 500 | 3000 | 5 |
| WMCT50-09 | 50 | 600 | 3000 | 5 |
Specifications of WMCT100 wire mesh cable tray
| Item | Height (mm) |
Width (mm) |
Length (mm) |
Diameter (mm) |
|---|---|---|---|---|
| WMCT100-01 | 100 | 100 | 3000 | 5 |
| WMCT100-02 | 100 | 150 | 3000 | 5 |
| WMCT100-03 | 100 | 200 | 3000 | 5 |
| WMCT100-04 | 100 | 300 | 3000 | 5 |
| WMCT100-05 | 100 | 400 | 3000 | 5 |
| WMCT100-06 | 100 | 450 | 3000 | 5 |
| WMCT100-07 | 100 | 500 | 3000 | 5 |
| WMCT100-08 | 100 | 600 | 3000 | 5 |
Specifications of WMCT150 wire mesh cable tray
| Item | Height (mm) |
Width (mm) |
Length (mm) |
Diameter (mm) |
|---|---|---|---|---|
| WMCT150-01 | 150 | 150 | 3000 | 5 |
| WMCT150-02 | 150 | 200 | 3000 | 5 |
| WMCT150-03 | 150 | 300 | 3000 | 5 |
| WMCT150-04 | 150 | 400 | 3000 | 5 |
| WMCT150-05 | 150 | 450 | 3000 | 5 |
| WMCT150-06 | 150 | 500 | 3000 | 5 |
| WMCT150-07 | 150 | 600 | 3000 | 5 |
Welded Stainless Steel Mesh Cable Basket Tray Hot Sale 300mm Cable Tray Accessories
1. Low cost. Significant cost savings compared to standard traditional tray products.
2. Light in weight.; Wide range of sizes; Fast heat dispersion.
3. Strong enough to withstand short circuits.
4. Provides strength, rigidity without additional hardware
5. Adapts to difficult architectural designs to accommodate changes in direction and elevation of cable runs.
6. Flexible, eazy and fast installation. Cuts installation time up to 50 percent.
7. Cables can be secured to clamps or ties.
8. Mesh design allows cable exit or entry at any point.
9. Various hardware accessories available to fix, support and install.
10. Safe smooth edge design to protect cables.
11. Easy for line check and cleaning.
Customized according to customer requirements, you can choose carton packaging, or wrap plastic film. Different packaging methods correspond to different prices.
