| Mesh: | 400mesh | Size: | 48" X 100" |
|---|---|---|---|
| Material: | 304 Stainless Steel | Weave: | Dutch Weave |
| Weave Type:: | Plain Weave, Twilled Weave, Dutch Weave | Uses:: | Mainly Used For Filtering And Sieving |
| High Light: | 10mesh monel wire mesh,48" x 100" monel wire mesh,400mesh inconel wire mesh |
||

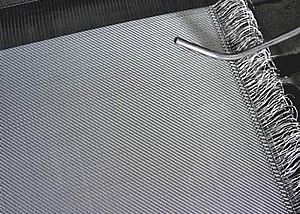

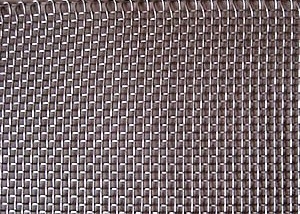

10mesh-400mesh Monel ,Inconel,Nickle Alloy Wire Mesh
Monel 400 Mesh(UNS N04400) is extremely resistant to sea water corrosion and steam at the elevated temperatures. It offers strong resistance to sulfuric acid (H2SO4) and hydrochloric acid (HCl) and has great resistance to stress corrosion cracking. Monel 400 Mesh is extensively used in the solid-liquid filters in chemical treatment units, seawater filters, electric and electronic engineering, waste incinerators, heat exchangers, processing systems and petroleum refining plants.
Properties of Monel 400 Mesh
Monel 400 alloy Chemical Composition
| Ni | Cu | Fe | Mn | C | Si |
| ≥63 | 28% -- 34 % | ≤ 2.5 | ≤ 2.0 | ≤0.3 % | ≤ 0.024 |
Monel 400 Mesh Property Data:
| Specifications | ASTM B164, AMS 4730 |
| Density | 0.318 lbs/in³ |
| Tensile Strength | 80 Kpsi* |
| Elongation | 30%* |
| Melting temperature | 1350°C to 1350°C |
| Max. Operating Temperature | 1000° F |
| Modulus of elasticity | 173 kN/m2 or 25092 |
| Modulus of rigidity | 65.3 kN/m2 or 2592 ksi |
| Coefficient of linear thermal expansion | 12.4 µm/m•°C at -100oF |
| Thermal conductivity | 19.8 W/m•°C at -100oF |
| Specific heat capacity | 378 J/kg•°C at -100oF |
| Electrical Resistivity | 0.511 µΩ•m at 70oF |
| Hardness | 143 Brinell |
| Yield Strength, ksi | 30 to 55 ksi (annealed) |
Inconel 600 Mesh (UNS N06600) is a specialized engineering material that offers excellent resistance to corrosion, heat and oxidation. It is used in the elevated temperature conditions up to 2150 degrees where corrosion risk due to oxidizing and reducing conditions is intense. With its superior corrosion prevention properties, Inconel 600 Mesh is ideal for use in the nuclear steam production plants, heat processing units, polymer production, alkaline metal production, petroleum & chemical industry and furnace components.
| C | Cr | Cu | Fe | Mn | Ni | Si | S |
| ≤0.15 % | 14% – 17 % | 0.5 % | 6% – 10 % | 1 % | Balance | 0.5 % | 0.015 % |
Inconel 600 Physical Properties:
| Specifications | ASTM B166, AMS 5687 |
| Density | 8470/M3 |
| Tensile Strength | 110 Kpsi |
| Elongation | >30% |
| Melt | 1370°C -1425°C |
| Max. Operating Temperature | 900°C -- 1200°C |
Besides MONEL and INCONEL , we also have Nickle - Chrome alloy wire mesh ,like Ni80Cr20, Ni60Cr15,Ni35Cr20.
