Product Details:
Payment & Shipping Terms:
|
| Material: | Low Carbon Steel Wire, Stainless Steel, Brass Plate, Aluminum Plate, Titanium Plate, Nickel Plate, Al-Mg Alloy Plate | Thickness: | 1.6mm |
|---|---|---|---|
| Mesh: | 25 X 40 Mm | Surface Finish: | Galvanised |
| Hole Shape: | Diamond,square,hexagon,round,triangle,scale,etc | Size: | 1.2 X 2.4 M |
| Application: | Protecting Mesh,Fencing | Type: | Expanded Mesh,Flattened And Standard,Raised Type |
| Technique: | Perforated | Color: | Silver,red,Black,white,yellow |
| High Light: | 1.6mm thickness expanded metal wire mesh,1.2 x 2.4 m expanded metal wire mesh,gothic stainless steel expanded wire mesh |
||
Expanded Metal Gothic Wire Mesh Weight And Prices
As a professional manufacturer in Hebei Province,our advantages in production Hot Dip Galvanized Expanded Metal Gothic Wire Mesh For Window, Gothic Expanded Metal Mesh For Fence below:
1) Complete production machine line :
9 set expanded metal machines---2 cutting machines---1 levelling rolling machine---1 larger type flattening machine--galvanized bath----polishing bath----annealing equipment
2) Max width of the expanded mesh: 3m
3) Max thickness of the expanded metal mesh:14mm
4) Max LWD of the expanded metal mesh : 300mm
All material can be customized as your request.Samples can be offered in time for your checking the qualtity.

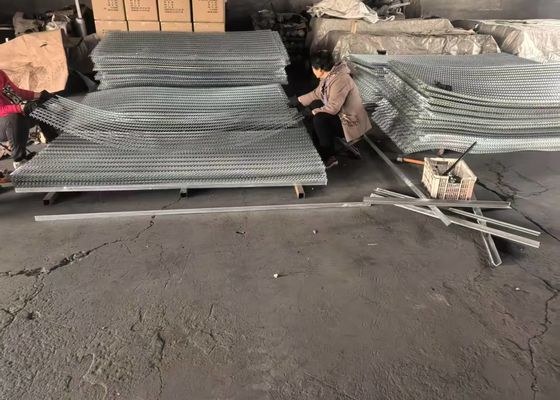

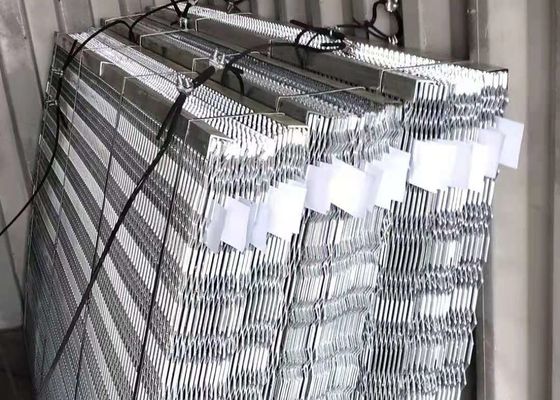

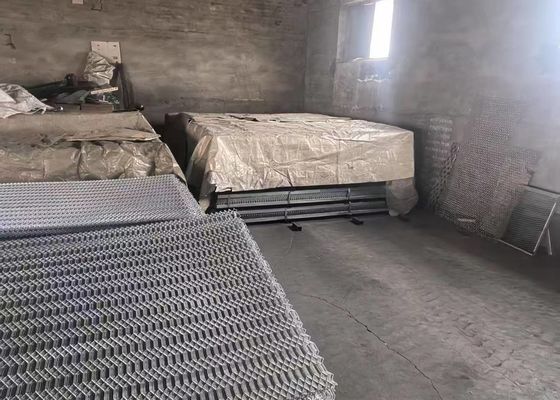

photos of gothic expanded metal mesh
Surface treatment
- Without treatment is ok
- Anodized (colour can be customized)
- Powder coated
- PVDF
- Spray painted
- Galvanized : Electric galvanized, Hot-dipped galvanized
specification:
1) The thickness 2.8mm ,strand widht :2.3mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44 .the weight :12kg/sheet
2) The thickness 3.2mm ,strand witdh :2.3mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44m .the weight :14kg/sheet
3) The thickness 3.2mm ,strand widht :2.4mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.2x2.4m .the weight :14.5kg/sheet
4) The thickness 3.2mm ,strand witdh:2.4mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44m .the weight :14.7kg/sheet Sheet size: 1200 x 2400mm,
Weight: 12-14kg/sheet
*Expanded metal permits free flow of light, heat, sound and air
*Expanded metal is a formidable barrier when used in security applications
*Easily fabricated, finished, installed and formed
*It is strong and durable, with pleasing appearance in its shapes.
Expanded metal gothic wire mesh is the most practical and economical way to assure strength, safety, and anon-skid surface.
Expanded metal grating is ideal for use on plant runways, working platforms, and catwalks, as it is easily cut into irregular shapes and can be installed quickly by welding or bolting.
