Product Details:
Payment & Shipping Terms:
|
| Diameter: | 5mm | Height: | 1.8m,2.0m |
|---|---|---|---|
| Mesh Openning: | 50*150mm | Width: | 2.05m |
| Color: | Green | Products Name: | Powder Coated 3d Curved Mesh Fence |
| Panel Size:: | 1.5*2.5m, 1.6*2.5m, 1.8*2.5m, 2.0x2.5m | ||
| High Light: | pvc curved welded wire mesh fence,3d curved welded wire mesh fence,welded 3d curved wire mesh fence |
||

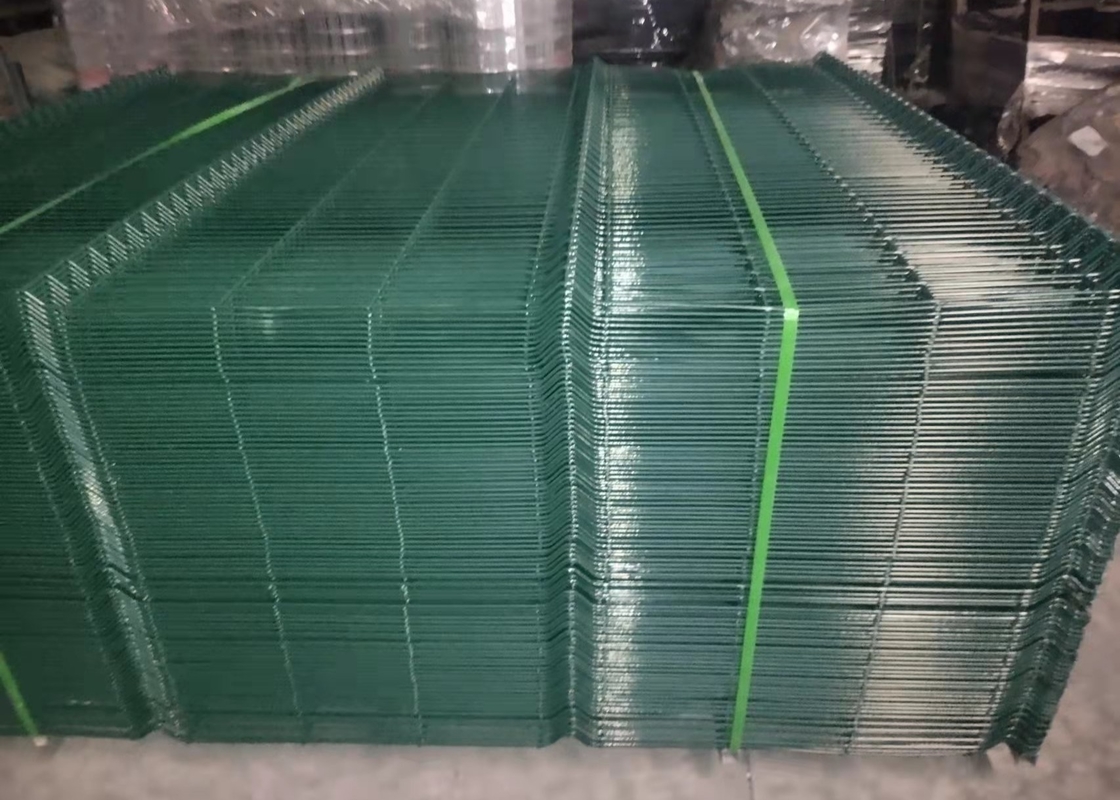

Pvc Coated 3d Bending Panel Welded Wire Mesh Fence Curved Wire Mesh Fence
The Procter range of mesh panel fencing systems is designed to suit a wide range of applications including perimeter, domestic, sports fencing and high security. Each high quality mesh fencing system is manufactured using pre-galvanised wire then powder coated. We guarantee low prices and good quality on all our welded mesh fencing .
It is an economical version of the panel system, constructed from a welded mesh panel with longitudinal profiles that forms arigid fence. The fence panel is welded with high quality low carbon steel wire, surface treated by electrostatic polyester powder spray coating over galvanized materials, then connected with post by suitable clips. Due to its simple structure, easy installation, nice appearance, more and more customers regard welded mesh fence as the preferred common protective fence.
opular specifications :
1. Wire diameter:5mm,4mm,3mm
2. Mesh size:50x200mm
3. Height x Length: 2.03x2.5m,15.3x2.5m

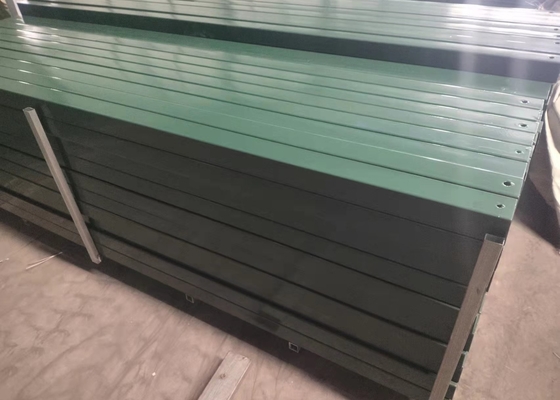

4. Square post:60x60x1.5x2400mm
5. Quick post:70x100x1.2x2400mm
6. Round post:48x2x2400mm
7. Surface treatment: PVC or PE coated after galvanized
Size Range
Specification |
Normal size |
Wire diameter |
2.8-12mm |
Mesh size |
10-250mm |
Height |
UP to 2500mm |
Length |
Not limited |
PE coated thickness |
0.8-1.2mm |
PVC coated thickness |
0.1mm |
Hot dipped galvanzied |
Zinc coating10-500g/m2 |
Fence Specifications:
| Wire Dia | Mesh Size | Panel Width | Panel Height | Folds | Post Height | Post Model | |
| burying style | bass style | ||||||
| 3.0mm; 4.0mm; 5.0mm; 6.0mm |
50*100mm; 50*200mm; 50*150mm; 70*150mm |
1-2.5m | 1.03m | 2 | 1.4m | 1.2m | Square; Peach; Round |
| 1.23m | 2 | 1.6m | 1.4m | ||||
| 1.53m | 3 | 2.0m | 1.7m | ||||
| 1.73m | 3 | 2.2m | 1.9m | ||||
| 1.83m | 4 | 2.3m | 2.0m | ||||
| 2.03m | 4 | 2.5m | 2.2m | ||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
Features:
This style Fence panel using high quality low carbon steel wire welded .The fence surface after PVCor power coating will be brightness and comfortable ,it has highability to resist corrosive and unltraviolet.
Application
The welded mesh fencing can be used for gardens, factory, road , highway, public buildings , parks, government buildings, ball court, industry & commercial sector.
Packaging & Shipping
The panels of wire mesh fence: wrapped by wooden pallet with plastic film, to keep the panels clean;
The Clamps of wire mesh fence: in small carton box , to avoid damage;
The fence post of wire mesh fence: wrapped with plastic film and in bulk, or on your request.
