Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 , 316 , 316L | Rope Constructions: | 7 X 7 , 7 X 19 |
|---|---|---|---|
| Wire Rope: | 1.2Mm To 4.0 Mm | Mesh Orientation: | Horizontal , Vertical |
| Product Name: | Stainless Steel X-tend Inox Cable Wire Rope Mesh | Hole Shape: | Rhombus , Diamond |
| Feature: | Corrosion Resistance,beautiful,durable,Easily Assembled | Mesh Openning: | 100 X 173mm |
| Application: | Staircase Security , Balustrade Infill , Railing Safety | Mesh Angle: | 60 Degree |
| Mesh Style: | X-tend In Ferruled Type | ||
| High Light: | 7x7 stainless steel wire rope mesh,7x7 flexible stainless steel cable netting,316l flexible stainless steel cable netting |
||
we offer mesh pattern design, frame design, surface treatment services and installation system design.
specification of Architectural Fence X Tend Wire Rope Mesh, Flexible Stainless Steel Cable Mesh
 |
||||
|
Opening
(OW XOH)
|
1.0 mm
|
1.5 mm
|
2.0 mm
|
3.0 mm
|
|
20 mm x 35 mm
|
CD1020
|
|
|
|
|
25 mm x 43 mm
|
CD1025
|
CD1525
|
|
|
|
30 mm x 52 mm
|
CD1030
|
CD1530
|
|
|
|
40 mm x 69 mm
|
CD1040
|
CD1540
|
CD2040
|
|
|
50 mm x 87 mm
|
CD1050
|
CD1550
|
CD2050
|
CD3050
|
|
60 mm x 104 mm
|
CD1060
|
CD1560
|
CD2060
|
CD3060
|
|
80 mm 139 mm
|
CD1080
|
CD1580
|
CD2080
|
CD3080
|
|
100 mm x 173 mm
|
CD10100
|
CD15100
|
CD20100
|
CD30100
|
|
120 mm x 208 mm
|
CD10120
|
CD15120
|
CD20120
|
CD30120
|
|
...
|
|
|
|
|
|
200 mm x 346 mm
|
CD10200
|
CD15200
|
CD20200
|
CD30200
|
|
Customized Special Rope Diameter and Opening Size
|
||||
|
||||

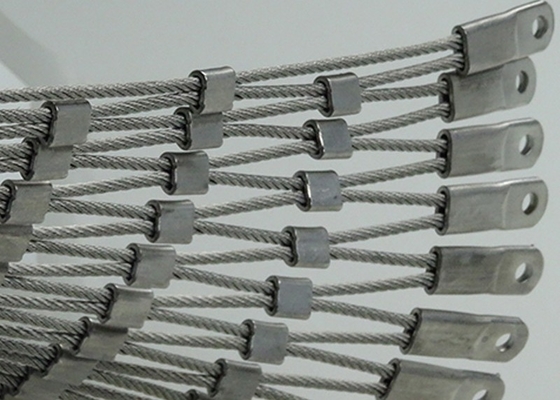

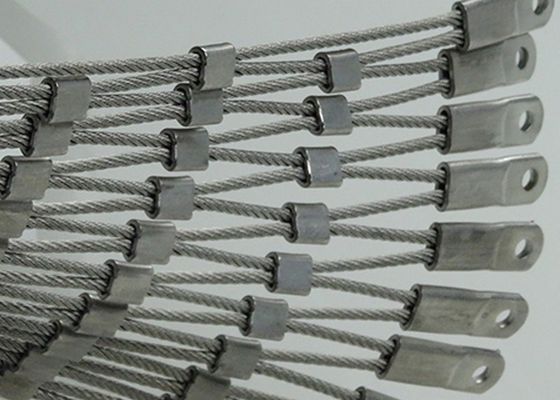

images of Architectural Fence X Tend Wire Rope Mesh, Flexible Stainless Steel Cable Mesh
|
|
|
Application of Architectural Fence X Tend Wire Rope Mesh, Flexible Stainless Steel Cable Mesh
| The potential applications for stainless steel rope mesh are exceptionally varied both indoors and outdoors. It is used as balustrade in-fill, plant support, observation platform safety fence, tensile facade, zoo enclosure, divider, horizontal or vertical fall protection | |

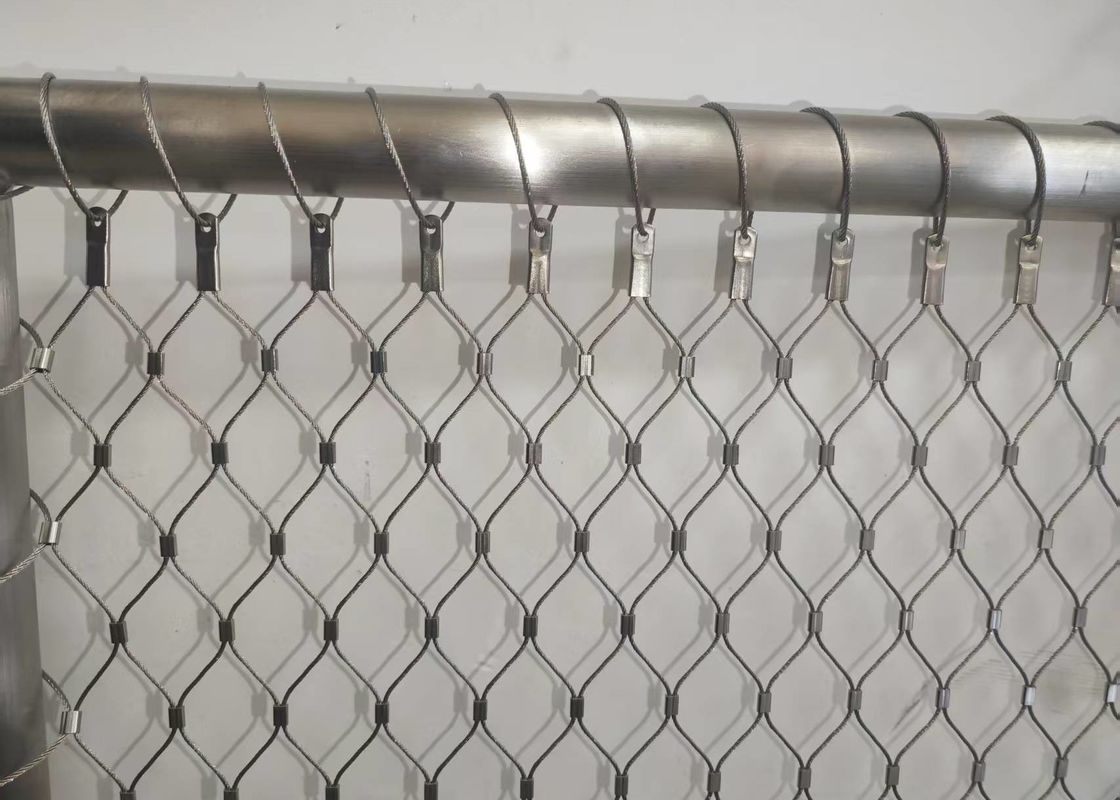

installation parts of Architectural Fence X Tend Wire Rope Mesh, Flexible Stainless Steel Cable Mesh
