1.5mm Wire Stainless Steel Wire Rope Mesh with Customized Length and Easily Assembled Ferrule Rope Mesh

Large Image : 1.5mm Wire Stainless Steel Wire Rope Mesh with Customized Length and Easily Assembled Ferrule Rope Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meters

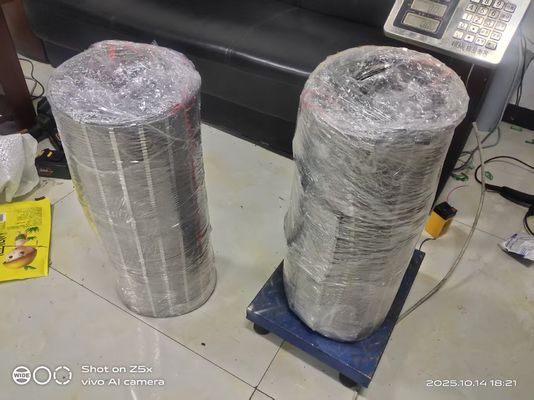

Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	3000 m2/month

Contact Now

Detailed Product Description

Material:	Stainless Steel 304 Wire Rope	Technique:	Woven
Type:	Decorative Wire Mesh	Color:	Sliver
Product Name:	Stainless Steel Ropes Mesh	Feature:	Corrosion Resistance,beautiful,Easily Assembled
Length:	Customized	Name:	Rope Netting,Wire Mesh Nets
Size:	7 × 7 Or 7 × 19, And 1 × 7 And 1 × 19	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	7 × 7 stainless steel wire rope mesh , 7 × 7 stainless steel webnet , 1.5mm stainless steel webnet

X Tend 7 * 7 1.5mm Wire Stainless Steel Webnet Ferrule Cable

Product Description

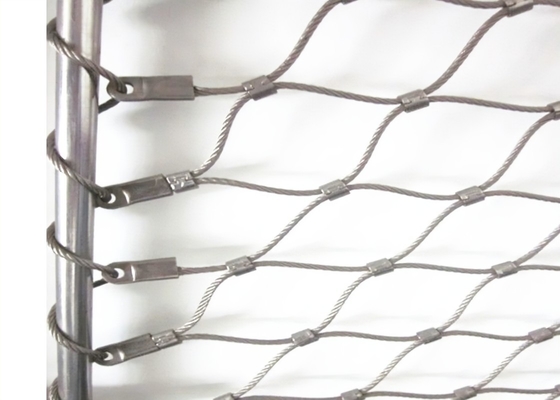

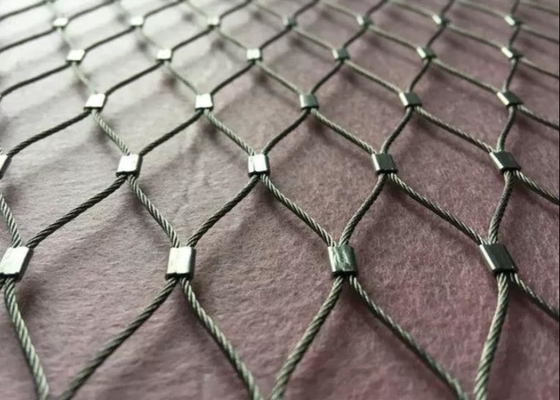

The stainless steel ferrule rope mesh is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with stainless steel, copper or aluminium clamps in a special process to form a mesh structure that is both stressable and flexible, suited for either two- or three-dimensional applications.

Key Properties

Corrosion-resistant steel ropes connected by alternating sleeves
Custom fabricated to exact specifications with no size limits
Available in vertical or horizontal mesh orientation
Made from high-quality AISI 316 and AISI 316L (1.4401 and 1.4404) steel
UV resistant and weatherproof for exterior applications
Minimal visual obstruction for animal enclosures and protective nets

Production Process

Our wire rope nets are precision fabricated in our factory to exact specifications, ensuring uniform mesh size, consistent tensioning, and perfect edge connections. Each net is assembled by hand and pressed using machinery to guarantee consistent quality and strength values.

Technical Specifications

1.0mm Rope Mesh

Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2
CD1020	0.69	1	20	35	72	1

1.5mm Rope Mesh

Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2
CD1525	1.6	1.5	25	45	72	1.59

2.0mm Rope Mesh

Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2
CD2035	2.9	2	35	61	67	1.85

3.0mm Rope Mesh

Product Code	MBL (KN)	Ø Rope (mm)	OW (mm)	OH (mm)	Area %	KG/m2
CD3040	7	3	40	70	37	4.29

Installation & Applications

Flexible stainless steel wire rope mesh can be installed on tube frames or tension cables using special border designs (L01-L30 patterns available). Ideal for:

Railing & balustrade infill
Green walls and façade greening
Safety and protective nets
Zoo animal enclosures
Architectural features and artwork

Note: Panel height and width should be specified according to frame dimensions.
