7x19 Stainless Steel Wire Rope Mesh Net with 60 Degree Mesh Angle and Rhombus Hole Shape for Easy Assembly

Large Image : 7x19 Stainless Steel Wire Rope Mesh Net with 60 Degree Mesh Angle and Rhombus Hole Shape for Easy Assembly

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Qijie
Certification:	SGS,ISO
Model Number:	Wire Rope Ferruled Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs

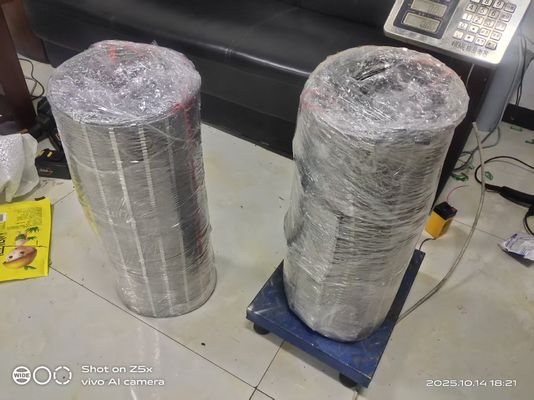

Packaging Details:	Wood case
Delivery Time:	15-18days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	1000m2 each month

Contact Now

Detailed Product Description

Material:	Stainless Steel 304 , 316 , 316L	Rope Constructions:	7 X 7 , 7 X 19
Wire Rope:	1.2Mm To 3.2 Mm	Mesh Orientation:	Horizontal , Vertical
Product Name:	Stainless Steel Cable Wire Rope Mesh	Hole Shape:	Rhombus , Diamond
Feature:	Corrosion Resistance,beautiful,durable,Easily Assembled	Mesh Openning:	70*150mm
Application:	Staircase Security , Balustrade Infill , Railing Safety	Mesh Angle:	60 Degree
Mesh Style:	X-tend In Ferruled Type	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	stainless steel wire rope mesh 7x19 , stairway stainless steel wire rope mesh , flexible stainless steel cable mesh 7x19

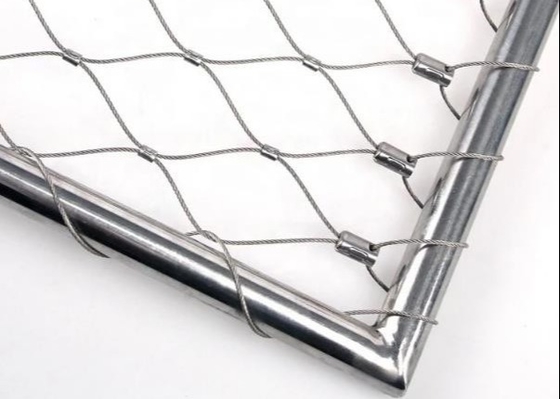

7x19 Stainless Steel Wire Rope Mesh Net With Ferrules For Stairway

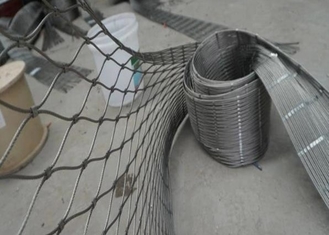

Stainless steel flexible wire rope mesh

This ferrule-type mesh offers sturdy construction with unlimited width and length options. The stainless steel wire rope mesh features rhombus or diamond-shaped apertures with a 60-degree mesh angle.

Standard Specifications

Typical mesh dimensions for balustrade applications:

Mesh width: 25mm
Mesh height: 150mm
Available wire rope diameters: 1.5mm, 1.6mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 6.0mm

Measurement Reference

Technical Specifications

Our stainless steel wire rope mesh is custom manufactured to your required width and length specifications for balustrades and staircases.

Code	Rope Construction	Rope Diameter	Aperture (mm)	Breaking Force (kN)
BR-01	7 × 19	3.2mm	120 × 208	7.38
BR-02	7 × 19	3.2mm	100 × 173	7.38
BR-03	7 × 19	3.2mm	90 × 156	7.38
BR-04	7 × 7	2.4mm	100 × 173	4.18
BR-05	7 × 7	2.4mm	90 × 156	4.18
BR-06	7 × 7	2.4mm	80 × 139	4.18
BR-07	7 × 7	2.4mm	70 × 121	4.18
BR-08	7 × 7	2.0mm	100 × 173	3.17
BR-09	7 × 7	2.0mm	90 × 156	3.17
BR-10	7 × 7	2.0mm	80 × 139	3.17
BR-11	7 × 7	2.0mm	70 × 121	3.17
BR-12	7 × 7	1.6mm	80 × 139	2.17
BR-13	7 × 7	1.6mm	70 × 121	2.17
BR-14	7 × 7	1.6mm	60 × 104	2.17
BR-15	7 × 7	1.6mm	51 × 87	2.17
BR-16	7 × 7	1.2mm	80 × 139	1.22
BR-17	7 × 7	1.2mm	60 × 104	1.22
BR-18	7 × 7	1.2mm	50 × 87	1.22
BR-19	7 × 7	1.2mm	40 × 69	1.22

Key Characteristics

Excellent Visibility: Transparent design provides unobstructed views while maintaining safety
Superior Flexibility: Smooth mesh surface protects animal fur/feathers while maintaining tensile strength
Corrosion Resistant: Rust-proof stainless steel construction ensures maintenance-free operation and long service life
Structural Advantages: Lightweight yet strong, anti-fatigue design with simple structure
Eco-Friendly: Non-toxic, recyclable material with easy transportation and installation
Dimensional Stability: Resists deformation even after prolonged use
