| Material: | Stainless Steel 304 , 316 , 316L | Rope Constructions: | 7 X 7 , 7 X 19 |
|---|---|---|---|
| Wire Rope: | 1.2Mm To 3.5 Mm | Mesh Orientation: | Horizontal , Vertical |
| Product Name: | Stainless Steel Cable Wire Rope Mesh | Hole Shape: | Rhombus , Diamond |
| Feature: | Corrosion Resistance,beautiful,durable,Easily Assembled | Mesh Openning: | 70*150mm |
| Application: | Staircase Security , Balustrade Infill , Railing Safety | Mesh Angle: | 60 Degree |
| Mesh Style: | X-tend In Ferruled Type | ||
| High Light: | stainless steel wire rope mesh 1.2mm,balustrade steel rope mesh,1.2mm steel rope mesh |
||

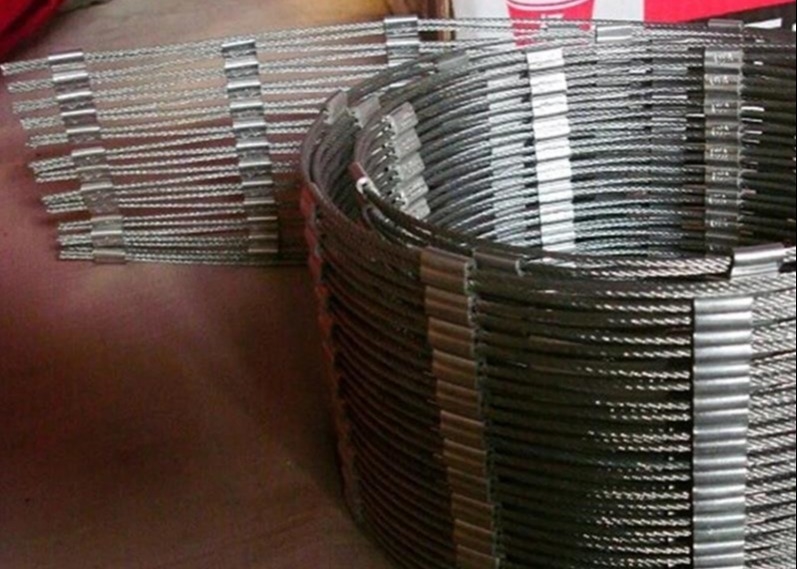

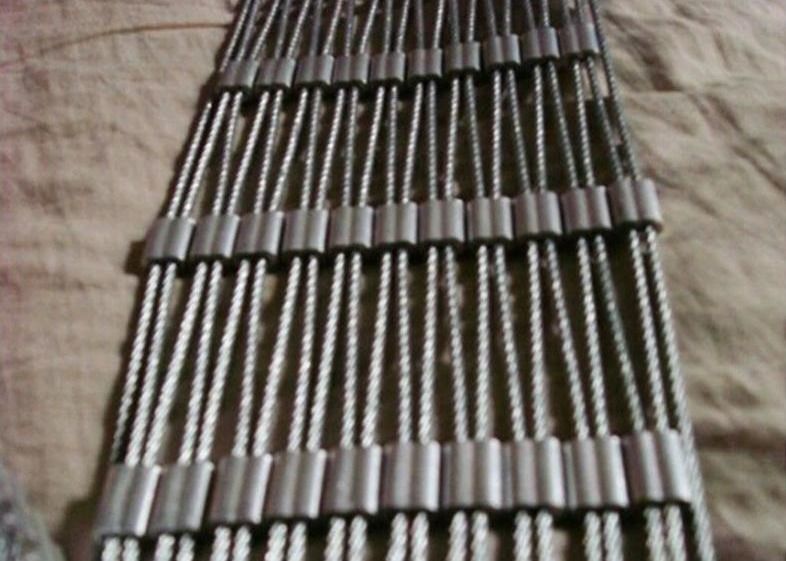

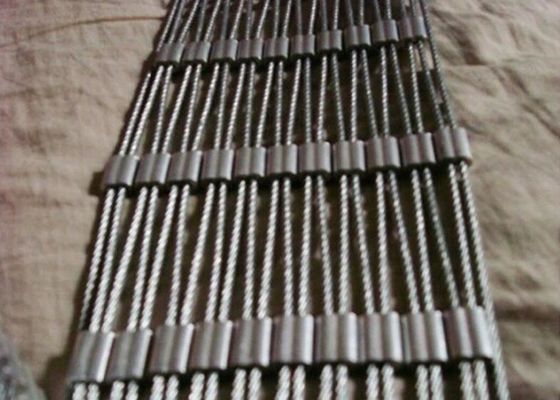

Flexible X-Tend Stainless Steel Rope Ferrule Cable Wire Mesh
| Stainless Steel Woven Cable Nets Sheet | |||||
| Item No.s | Cable Diameter | Mesh Opening Size | Normal Break | ||
| inch | mm | inch | mm | lbs. | |
| M-3212W | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1,600 |
| M-3210W | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1,600 |
| M-3290W | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1,600 |
| M-3276W | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1,600 |
| M-3250W | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1,600 |
| M-2410W | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| M-2490W | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| M-2476W | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| M-2460W | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| M-2450W | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| M-2076W | 5/64 | 2 | 3 x 3 | 76 x 76 | 676 |
| M-2060W | 5/64 | 2 | 2.4 x 2.4 | 60 x 60 | 676 |
| M-2050W | 5/64 | 2 | 2 x 2 | 51 x 51 | 676 |
| M-2038W | 5/64 | 2 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| M-1676W | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| M-1650W | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| M-1638W | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| M-1630W | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| M-1625W | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| M-1238W | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| M-1230W | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| M-1225W | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
| M-1220W | 3/64 | 1.2 | 4/5 X 4/5 | 20 x 20 | 270 |
Product advantage
1. lightweight, high strength, durable, good softness and fatigue resistance, impact resistance, large breaking force, the overall structure is strong and dura ble, service life in more than 30 years;
2, close to nature, green environmental protection, effective protection bird feathers and animal skin, effectively prevent rodents and other animals bite, give animals a safe and comfortable living environment.
3. good transparency, luxurious appearance, novel style, can be integrated with the surrounding environment, have very good decorative and protective effect.
4. one-time investment, permanent use, do not need any maintenance, the comprehensive economic benefit is can't be matched by other wire mesh products.
|
Material
|
Aisi316, 316L Stainless steel wire
|
||
|
Rope Size
|
7X7, 7X19
|
||
|
Hole shape
|
Diamond hole ,Rhombus
|
||
|
Weave type
|
Plain weave
|
||
|
Wire diameter
|
1.5mm -3.2mm
|
||
|
Opening size
|
Customized.Min. Hole Apeture is 25*25mm
|
||
|
Feature
|
Hand knitting, Light weight, high-strength, rustless, eco-friendly, safety, long service life, Corrosion resisatant, easy -assembly
|
||
Product Application
Stainless steel rope mesh is widely used in the zoo, animal park, Marine parks and other similar environment of animal cages, animal fence, protective net, garden decoration, landscape construction, etc. In addition, the products are also applied in the stadium fence, acrobatic performance, building decoration, municipal construction, Bridges, and the scenic area protective beautification adornment, park decoration, exhibition hall, exhibition, opera house, playground, supermarket, airport, and many other fields. Huamei stainless steel rope mesh is the ideal choice for modern decoration, protection, etc.
