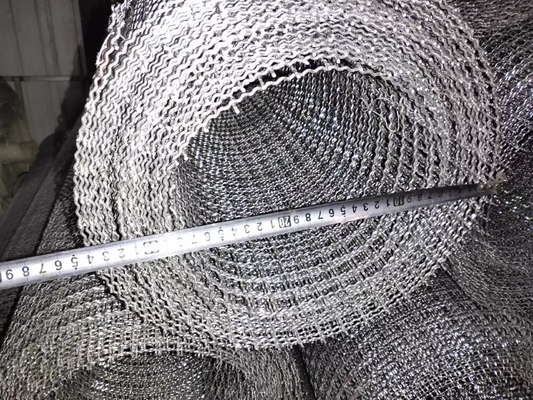

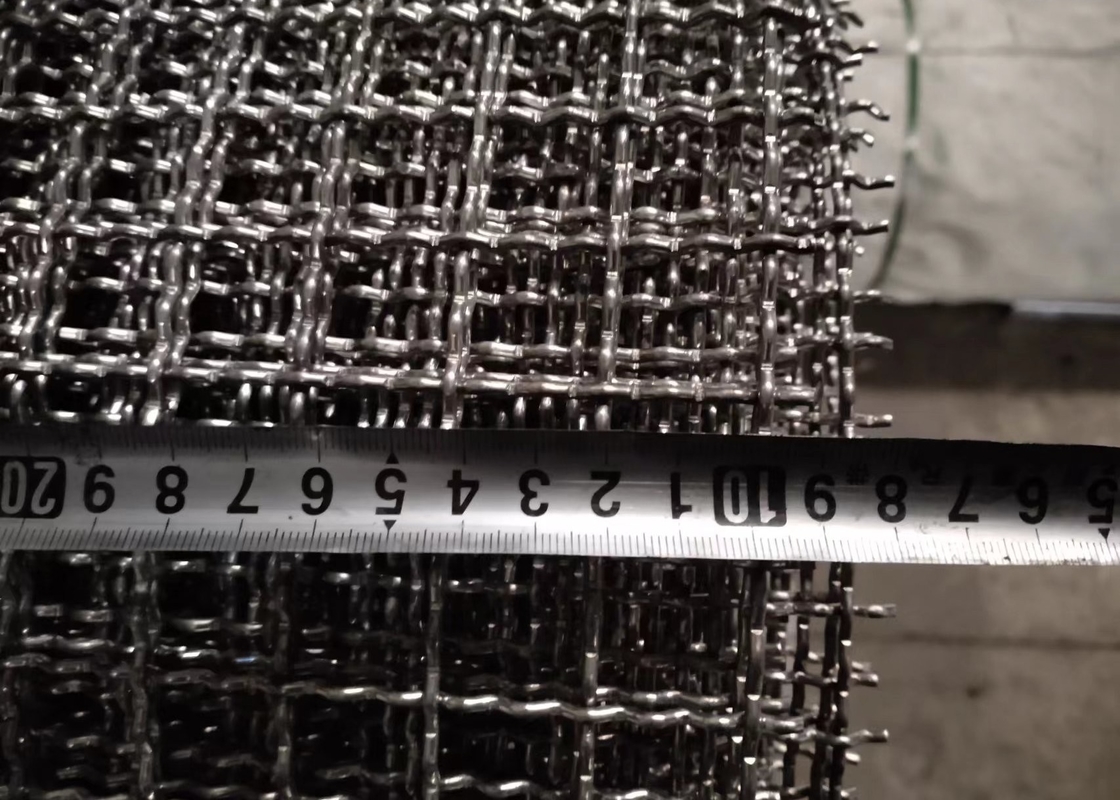

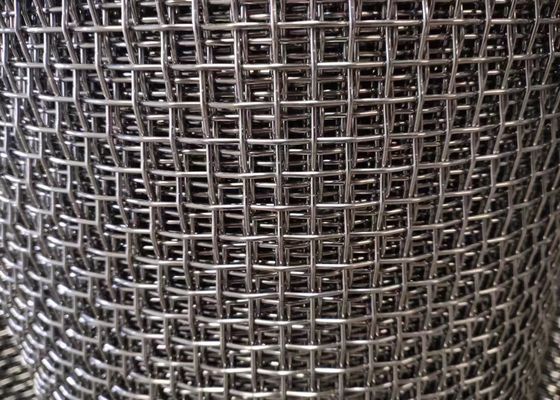

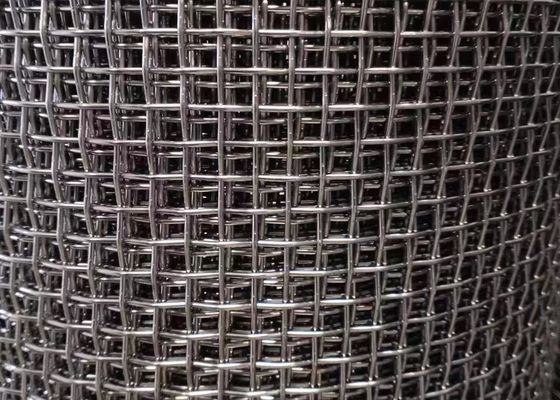

20mm Openning Mining Screen Mesh Aluminum Crimped Wire Mesh Rolls

20mm Openning Mining Screen Mesh Aluminum Crimped Wire Mesh Rolls
20mm Openning Mining Screen Mesh Aluminum Crimped Wire Mesh Rolls 20mm Openning Mining Screen Mesh Aluminum Crimped Wire Mesh Rolls 20mm Openning Mining Screen Mesh Aluminum Crimped Wire Mesh Rolls 20mm Openning Mining Screen Mesh Aluminum Crimped Wire Mesh Rolls

Large Image :  20mm Openning Mining Screen Mesh Aluminum Crimped Wire Mesh Rolls

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: aluminum crimped wire mesh
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets or wood case
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 meter per week
Detailed Product Description
Wire Diameter: 2.5mm Mesh Openning: 20x20mm
Size: 2.10m Width X 30m Length Name: Aluminum Crimped Wire Mesh
Wire Materials:: Aluminum Wire General Use:: Screening
High Light:

20mm openning mining screen mesh

,

crimped mining screen mesh

20mm Openning Aluminum Crimped Wire Mesh Screen For Mining And Decorative



Stainless steel crimped wire mesh is one of the main stainless steel products of our company. Crimped mesh roll is used in industries and architectural designs. Two wires are weaved and crimped which results in a strong, durable and good looking mesh. It has different weave and crimping methods.

Crimped wire mesh,is made of carbon iron wire,galvanized wire,stainless steel wire or copper wires. All the wires are crimped prior by mold,then weave them together. The variety of materials,wire diameters and weave patterns make this kind wire mesh products can be used in many industries.

  • Materials: Carbon iron,Galvanized steel,Stainless steel,Copper
  • Weaving methods: Double crimped, Single intermediate crimped, Double intermediate crimped and Lock crimped.

Crimp style options:



1. Lock Crimp: As the name implies, Lock crimp style locks the wires on its place. This method provides stability to the wires.

2. Double Crimp: It is also known as plain weave because warp and weft wire are woven directly. It forms a strong construction and tight mesh. This type of crimp is commonly used on light gauge wires so that this method can provide tension to the mesh.

3. Inter Crimp: There are two types of Inter crimp styles, one is single Intermediate crimped and other is double intermediate crimped. In single Intermediate crimped, one wire is pre-crimped and other is straight. On the other hand, both wires are pre-crimped in double intermediate crimped style.

4. Flat Top: It is also known as pressed crimped because all the flat wires are on the top sides and knuckles on the bottom. Thus providing a smooth surface.

crimped wire mesh



Specification:

  • Wire diameter : 0.5mm- 8.0mm
  • Meshes : 2–30 meshes
  • Width : Standard less than 2000mm
  • Length : Coil or customized.



Wire Gauge

SWG

Wire Diameter

mm

Mesh/Inch

Aperture

mm

Weight

kg/m2

14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9

Crimped wire mesh is available in a variety of materials,wire diameter,meshes,weave methods and can be cut to the special sheets according to the applications and projects requirements.

crimped wire mesh type

Application:

Crimped wire mesh has many applications in industrial,commercial and decoration. like refining, mining,construction,security,food processing,sieves,decoration and so on.

Mining areas

Chemical Industries

Food Industries,

Filtration,

sifting,

sizing

Marine uses

Faucet screen

Pharmaceutical Industries

Insect screen

Insect screen in a marine environment

CRT screen ,

High transparency grade

Decorative / Craft

Applications Sconces

aluminum crimped wire mesh



stainless steel crimped wire mesh



aluminum crimped wire mesh
