V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005

V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005
V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005

Large Image :  V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005

Product Details:
Place of Origin: Hebei, China
Brand Name: Qijie
Certification: SGS
Model Number: QJ-515
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: loose packed or with steel pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 10000 pcs one month
Contact Now
Detailed Product Description
Most Popular V-Bend Metal Mesh Fencing Panel, Welded Wire Mesh Fence, 3D Curved Wire Fence: Metal Metal Type: Steel
Frame Finishing: Powder Coated Feature: Easily Assembled, Sustainable, ECO FRIENDLY, Rodent Proof
Usage: Garden Fence, Highway Fence, Sport Fence, Farm Fence Service: 3D Modeling, Video Of Installation
Material: Low Carbon Steel Wire Surface Treatment: Galvanized, Power Coated
Application: Hallway, Farm, Yard Security Length: 2500 Mm
Height: 1030mm/1230mm/1530mm/1830mm/2030mm Mesh Opening: 200x50mm / 200x55mm
Wire Thickness: 5.0mm / 4.5mm / 4.0mm Color: RAL6005, RAL8017, RAL7016, RAL9005
High Light:

1030mm curved metal fence

,

ral6005 curved metal fence

,

powder coated curved wire fence

Product Description


Welded Wire Fence

Welded Wire Fence is a multifunctional panel made of galvanized welded wire.
Offering a good visibility of the territory and having a high degree of rigidity, the Welded Wire Fence is used to fence green
areas, gardens, playgrounds, commercial and industrial territories.

V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005 0

Specification



V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005 1
Popular Color of V-bend Wire Mesh Fence
The most popular of welded mesh fence is dark green. Normally we use RAL number to name the color.
Other colors available.
V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005 2

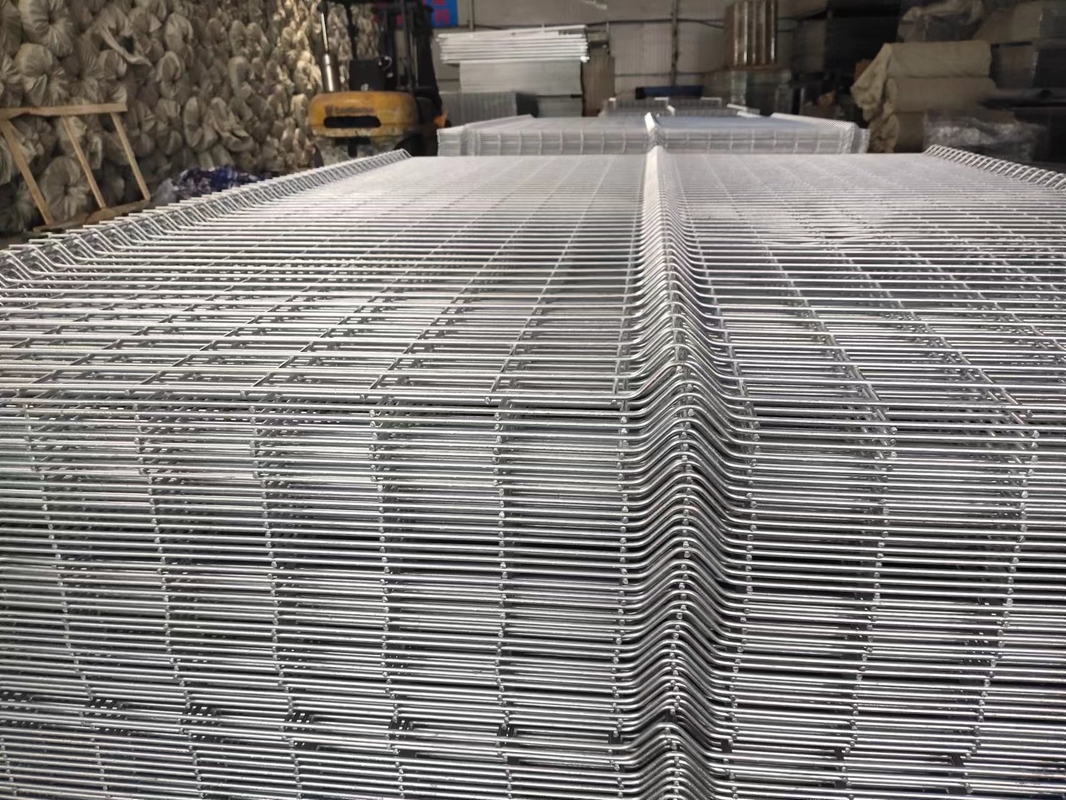

Mesh Fence Panel Size and V-bend Number
The length of the fence panel normally is 2500mm.
The height of the fence panels are different according to different usage.

Anyway, the panel size and V-bend number can be customized as customers request.
Mesh Opening
Popular mesh opening of fence panel is
50mm x 200mm

Also, some customers request 55mmx200mm

The height of the bend should be 100mm.

There will be 30mm ends of wire on the fence panel top.
V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005 3
V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005 4
Material Grade and Finish
The raw material of wire mesh panel is Q195 /Q235 low carbon steel.

The surface coating is galvanizing + powder coating

The galvanized coating can be electro gal. and hot dipped gal.

The finish coating can be powder spray or PVC coated.
item
value
Season
All-Season
Place of Origin
China

Hebei
Brand Name
ZHUOTE
Model Number
3DF001
Frame Material
Metal

Steel
Frame Finishing
Powder Coated
Feature
Easily Assembled, Sustainable, ECO FRIENDLY, Rodent Proof, Rot Proof
Usage
Garden Fence, Highway Fence, Sport Fence, Farm Fence
Type
Fencing, Trellis & Gates, security fence, Fence Accessories, Fence Panels
Service
3D modeling, video of installation

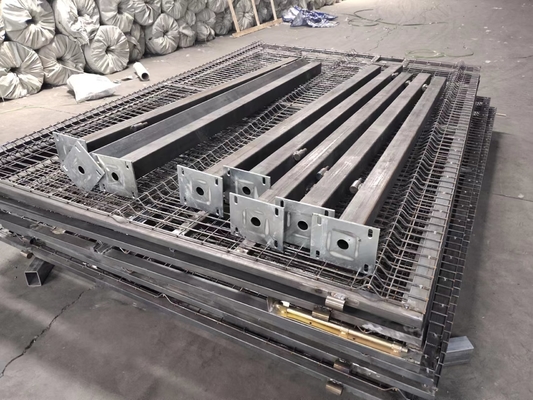

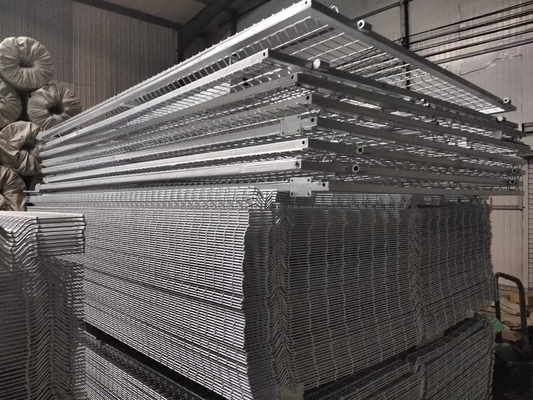

Packing & Delivery
V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005 5
V Bend Mesh Panel 1030mm Curved Metal Fence Ral6005 6
Steel belt, pallet, wooden box for perforated steel sheet
