Product Details:
Payment & Shipping Terms:
|
| Frame Material: | Metal | Metal Type: | Steel |
|---|---|---|---|
| Pressure Treated Wood Type: | Heat Treated | Frame Finishing: | Pvc Coated |
| Feature: | Easily Assembled, FSC, Pressure Treated Timbers | Usage: | Garden Fence, Farm Fence |
| Type: | Fencing, Trellis & Gates, Fence Panels, 3d Fence, Welded Wire | Service: | 3D Modeling, Video Of Installation |
| Material: | PVC Coated Steel Wire, Low Carbon Iron Wire | Color: | Green, Blue, Black, Or Customized |
| Application: | Sport Field, School, Etc. | Height: | 0.63m,1.03m,1.23m,1.53m,2.03m,2.23m,etc |
| Width: | 2.0m,2.5m,3.0m,etc | Post: | Square, Retangular, Round, Peach, Etc |
| Commercial Buyer: | Specialty Stores, E-commerce Stores | Design Style: | Industrial, Southwestern, Modern |
| Room Space Selection: | Support | Room Space: | Outdoor |
| Occasion Selection: | Not Support | Holiday Selection: | Not Support |
| High Light: | curved iron fence,curved metal fence panels |
||
White Color Powder Coated 3 RAIL TUBULAR PICKET FENCE
Galvanized Steel Picket Fence can be zinc galvanized picket fence or powder coated steel fence. The panels are manufactured with strong steel pickets and rails available in a wide range of sizes and styles. Steel Tube / Bar Panels are attached with high-strength steel or aluminum brackets to galvanised square tubular steel or aluminum posts. The Spear top design of this tubular fence creates an aesthetically pleasing fence which at the same time deters intruders. This security level ornamental fence is suitable for gardens, residential, industrial and commercial properties, schools, pools and boundary fencing.
Pressed Spear Top Tubular Steel Ornamental Fence
The common size:
(1) Horizontal rail: 32x32x1.2mm(thick.)
(2) Vertical rail: 16x16x1.0mm(thick.)
(3) Spacing:13cm

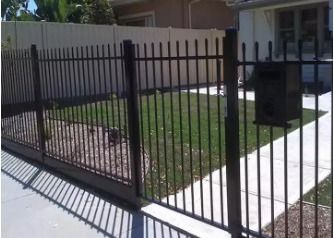

Spear-top picket fences with pressed spears top on the tubular posts
provide the classic outlook, bringing an aesthetically pleasing visual appeal to the residences. Spear-top picket fence railing has decorative rings. Scrolls can be added for an even more ornamental look.
Material: Steel tube, or galvanized steel tube.
Surface: Hot dipped galvanized, Powder coated.
Color: Any RAL colors are available.
Application: Residential and villa fencing; also security of business and industry area, factories and workshops, public buildings, parks, roads.
Major Fencing System Types:
| Fence Panel Types | Height | Width | Rail Size | Picket | Post Size | Post Length | Flange Option |
 |
900 | 1800 2000 2400 |
32*32*1.0 32*32*1.2 |
16*16*0.8 16*16*1.0 |
50*50*1.2 60*60*1.5 |
1200 | 120*120*4.0 150*150*5.0 |
| 1200 | 1500 | ||||||
| 1500 | 1900 | ||||||
| 1800 | 2300 | ||||||
 |
1500 | 2400 2750 3000 |
40*40*1.2 40*40*1.5 |
19*19*1.0 19*19*1.2 |
50*50*1.5 60*60*2.0 |
1900 | 120*120*4.0 150*150*5.0 |
| 1800 | 2300 | ||||||
| 2100 | 25*25*1.2 25*25*1.5 |
2700 | |||||
| 2400 | 3000 | ||||||
 |
1800 | 2400 2750 3000 |
50*50*2.0 50*50*2.5 |
25*25*1.5 25*25*2.0 |
60*60*2.0 80*80*3.0 |
2300 | 150*150*5.0 200*200*6.0 |
| 2100 | 2700 | ||||||
| 2400 | 3000 | ||||||
| 2700 | 3500 |
Process: Galvanized pipe cutting; spear pressing; tube hole punching (punching holes for vertical bar; punching of horizontal bar; punching holes of post); welding; washing; surface treatment; packing; installation.
1. First cut the steel or aluminum tube into the required length
2. Press spear tops
3, Punching holes of steel tubes
4. Use the mould to fix the cut tube then weld the rail and pickets. there are two welding methods:
5. Washing / Surface Cleaning: The workers first use the small polish machine to polish the welding points one by one. After finished all the welding,using the big polish machine (steel sand ) to wash the oil.
6. Surface Treatment: Then finish the zinc plating. The last surface treatment can be hot dip zinc plating or zinc plating plus power coating.
Typical Horizontal Bar, Vertical Bar and Installation Information
|
Installation height (mm) |
Post spacing (mm) | panel | post | ||||
| Plate dimension (mm) | Horizontal bar quantity | Horizontal bar profile dimension (mm) | Vertical bar profile dimension (mm) | Length (mm) | Dia O.D (mm) | ||
| 1600 | 3000 | 2980*1500 | 3 | 40x60x1.5 | 25x25x1.2 | 1900 | 80x80x2 |
| 1900 | 3000 | 2980*1800 | 3 | 40x60x1.5 | 25x25x1.2 | 2200 | 80x80x2 |
| 2300 | 3000 | 2980*2200 | 3 | 40x60x1.5 | 25x25x1.2 | 2600 | 80x80x2 |
