Stainless Steel Wire Rope Mesh Net Bridge Railing Mesh

Name: Stainless Steel Wire Rope Mesh Net Bridge Railing Mesh
Brand: QIJIE
SKU: SW-004
Price: 1 USD
Availability: InStock
Rating: 5 (171 reviews)

Large Image : Stainless Steel Wire Rope Mesh Net Bridge Railing Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meters
Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	3000 m2/month

Contact Now

Detailed Product Description

Material:	STAINLESS STEEL WIRE	Type:	Rope Mesh, Ferrule Type Or Knotted Type
Application:	Protecting Mesh	Weave Style:	Plain Weave
Technique:	Woven	Model Number:	Steel Wire Rope Mesh
Processing Service:	Weave	Raw Material:	Stainless Steel 304 316, Galvanized Wire
Accessories:	All Could Be Provided
High Light:	stainless steel rope mesh , flexible stainless steel cable mesh

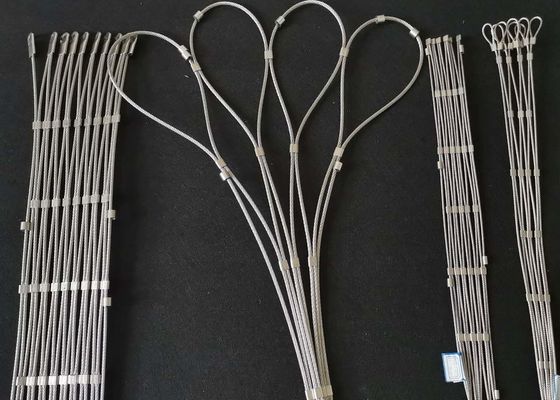

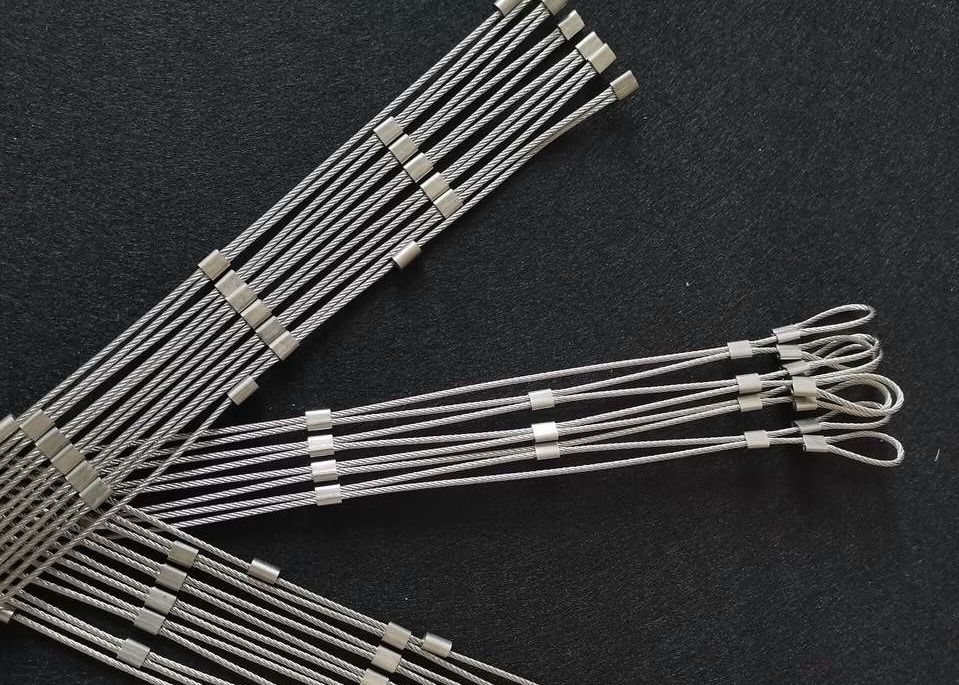

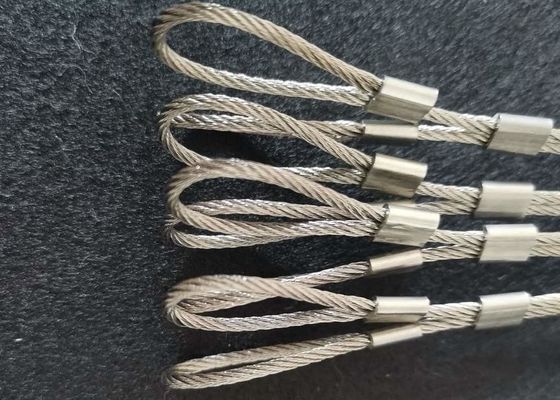

Stainless Steel Wire Rope Mesh Net Bridge Railing Mesh

Product Description

Flexible stainless steel rope mesh, inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span.

The stainless steel rope mesh is hand-made with high quality stainless steel rope.
The main materials for processing stainless steel rope are 304, 304L, 316, 316L and so on. Common
specifications for stainless steel rope: wirediameter:
1.2 mm, 1.5 mm, 2 mm, 3 mm, 4 m sides: 25 mm, 30 mm, 40 mm, 50 mm,
60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 120 mm, 150 mm, etc.
Special specifications can be customized.

Cable Diameter		Mesh Opening Size		Nominal Break
Inch	mm	Inch	mm	Ibs
1/8	3.2	4x4	102x102	1600
1/8	3.2	3x3	76x76	1600
1/8	3.2	2x2	51x51	1600
3/32	2.4	4x4	102x102	920
3/32	2.4	3x3	76x76	920
3/32	2.4	2x2	51x51	920
5/64	2	3x3	76x76	676
5/64	2	2x2	51x51	676
5/64	2	1-1/2x1-1/2	38x38	676
1/16	1.6	3x3	76x76	480
1/16	1.6	2x2	51x51	480
1/16	1.6	1-1/2x1-1/2	38x38	480
1/16	1.6	1x1	25.4x25.4	480
3/64	1.2	1-1/2x1-1/2	38x38	270
3/64	1.2	1x1	25.4x25.4	270
3/64	1.2	4/5x4/5	20x20	270

stainless steel stretch size 60 °

Opening (W XH)INNAER®	1.0mm(7×7)	1.5mm(7×7)	1.6mm(7×7)	2.0mm(7×7)	2.4mm(7×7)	3.0mm(7×19)	3.2mm(7×19)
20 mm x 35 mm	IN0124
25 mm x 43 mm	IN0125	IN0126	IN0127
30 mm x 52 mm	IN0128	IN0129	IN0130
40 mm x 69 mm	IN0131	IN0132	IN0133	IN0134
50 mm x 87 mm	IN0135	IN0136	IN0137	IN0138	IN0139	IN0140	IN0141
60 mm x104 mm	IN0142	IN0143	IN0144	IN0145	IN0146	IN0147	IN0148
70 mm x102 mm	IN0149	IN0150	IN0151	IN0152	IN0153	IN0154	IN0155
80 mm x 139 mm	IN0156	IN0157	IN0158	IN0159	IN0160	IN0161	IN0162
100 mm x 173 mm	IN0163	IN0164	IN0165	IN0166	IN0167	IN0168	IN0169
120 mm x 208 mm	IN0170	IN0171	IN0172	IN0173	IN0174	IN0175	IN0176
200 mm x 346 mm	IN0177	IN0178	IN0179	IN0180	IN0181	IN0182	IN0183
