Product Details:
Payment & Shipping Terms:
|
| Material: | STAINLESS STEEL WIRE | Type: | Crimped Wire Mesh |
|---|---|---|---|
| Application: | Woven Wire Mesh | Weave Style: | Plain Weave |
| Technique: | Woven | Model Number: | Vibrating Screen Mesh |
| Processing Service: | Bending, Welding, Decoiling, Cutting, Punching | Delivery Time: | 31-45 Days |
| Surface Treatment: | Galvanized Or Painted. | Mesh Size: | 1mm - 100mm. |
| Hole Type: | Square, Rectangular And Long Slot. | Opening Size: | 2.0 - 80.0 Mm |
| Wire Diameter: | 0.8 - 8 Mm | Width: | 1.2m |
| Length: | 30m | Hook: | Hook With Steel Sheet |
| Hook Degree: | 60degree | Weaving Type: | Double Crimp |
| High Light: | vibrating screen wire mesh,vibrating screen mesh |
||
Descripition

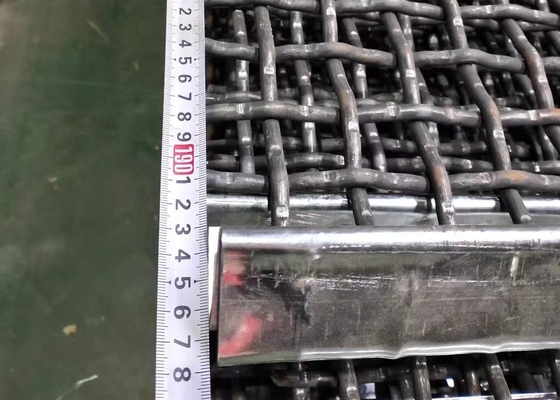

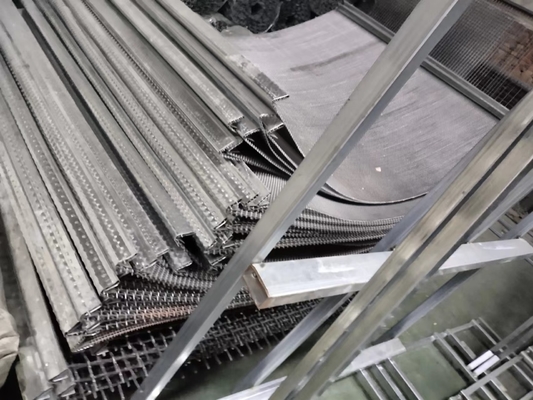

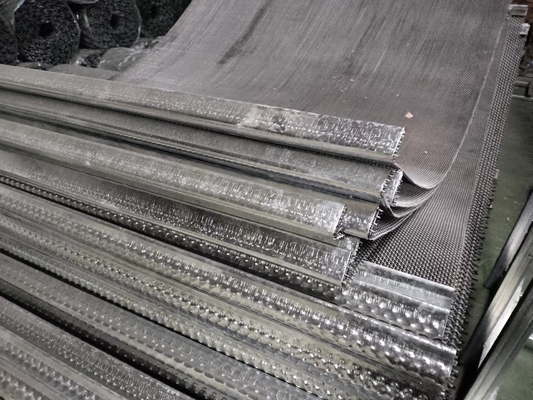

cheap Mine galvanized Screen Mesh or Stainless steel Crimped Wire Mesh sand gravel crusher Hooked Vibrating wire mesh
We offer all mesh media types to suit all screening models and applications.
Material: black wire, spring steel wire, 65mn manganese steel wire and stainless steel wire.
Surface Treatment: galvanized or painted.
Mesh Size: 1mm - 100mm.
Hole Type: square, rectangular and long slot.
Opening Size: 2.0 - 80.0 mm
Wire Diameter: 0.8 - 8 mm
Supplied Dimensions: as required by customer, in rolls or formats
Installation Instructions:
The screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.
Features:
· Varied lengths
· Require less maintenance
· Sturdy construction
Specification:
| No | Steel Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
|
Mesh /inch |
Wire Diameter | Aperture | Open Area |
Weight(LB)/ 100square foot |
||
| Inch | MM | Inch | MM | |||
| 2x2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 |
| 3x3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
| 4x4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 5x5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
| 6x6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
| 8x8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
| 10x10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12x12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 14x14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
| 16x16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 |
| 18x18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
| 20x20 | 0.02 | 0.058 | 0.03 | 0.76 | 36 | 55.2 |
| 24x24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | 31.8 |
| 30x30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 |
| 35x35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29 |
| 40x40 | 0.1 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
| 50x50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 |
| 60x60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
| 70x70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 |
| 80x80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 |
| 90x90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 |
| 100x100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 110x110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
Carbon Steel Parameter:
Application
Product application:
Heavy industrial Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.
Packaging & Shipping
company information
Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country.
The company was founded in 1999 with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 22 stainless steel woven mesh machines, 28 welded wire mesh machines, 11 double twisted hexagonal gabion baskets machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines. Qijie does sales both home and abroad with annual amount of more than $ 20 million, the main products are stainless steel fly screen mesh, fence panels, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products.
Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
Contact Person: Mr. Devin Wang
Fax: 86-318-7896133
