Product Details:
Payment & Shipping Terms:
|
Material: | STAINLESS STEEL WIRE | Type: | Crimped Wire Mesh |
---|---|---|---|
Application: | Woven Wire Mesh | Weave Style: | Plain Weave |
Technique: | Woven | Model Number: | Vibrating Screen Mesh |
Processing Service: | Bending, Welding, Decoiling, Cutting, Punching | Delivery Time: | 31-45 Days |
Surface Treatment: | Galvanized Or Painted. | Mesh Size: | 1mm - 100mm. |
Hole Type: | Square, Rectangular And Long Slot. | Opening Size: | 2.0 - 80.0 Mm |

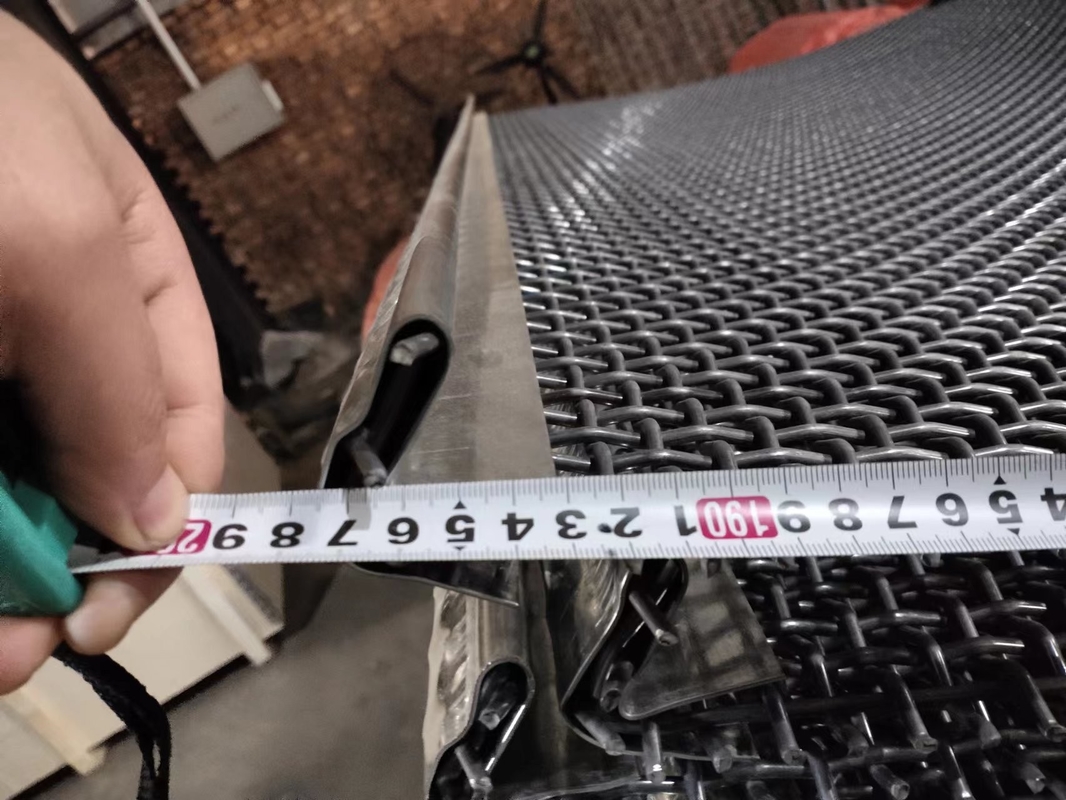

Wire Diameter: | 0.8 - 8 Mm | Width: | 1.2m |

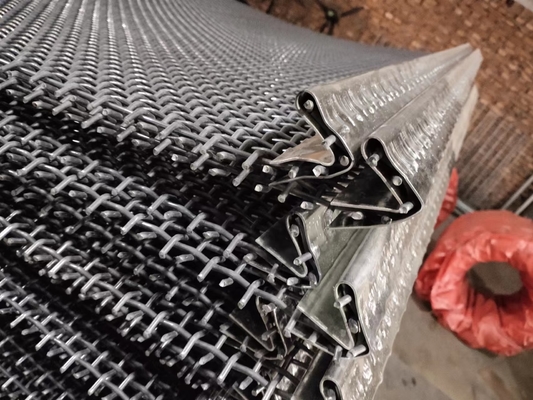

Length: | 30m | Hook: | Hook With Steel Sheet |
Hook Degree: | 60degree | Weaving Type: | Double Crimp |
High Light: | vibrating screen wire mesh,vibrating screen mesh |
1.Material: Stainless steel wire mesh used AISI302, 304,304L,316,316L,430,309,310S stainless steel wire as raw material.
2.Wire Diameter: 0.015-1.8mm
3.Mesh count:
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3200mesh
4.Aperture: 0.03-10mm
5.Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.
6.Features:
7.Application:
Stainless Steel Wire Mesh | ||||||
Mesh/inch | Wire Diameter (mm) |
Aperture (mm) |
Mesh/inch | Wire diameter (mm) |
Aperture (mm) |
|
2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
Width of Stainless Steel Wire Mesh: 0.6m-1.5m |
