High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand

High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand

Large Image :  High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand

Product Details:
Place of Origin: Hebei ,China
Brand Name: Xmesh
Certification: SGS
Model Number: MVSM
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: STAINLESS STEEL WIRE Type: Crimped Wire Mesh
Application: Woven Wire Mesh Weave Style: Plain Weave
Technique: Woven Model Number: Vibrating Screen Mesh
Processing Service: Bending, Welding, Decoiling, Cutting, Punching Delivery Time: 31-45 Days
Surface Treatment: Galvanized Or Painted. Mesh Size: 1mm - 100mm.
Hole Type: Square, Rectangular And Long Slot. Opening Size: 2.0 - 80.0 Mm
Wire Diameter: 0.8 - 8 Mm Width: 1.2m

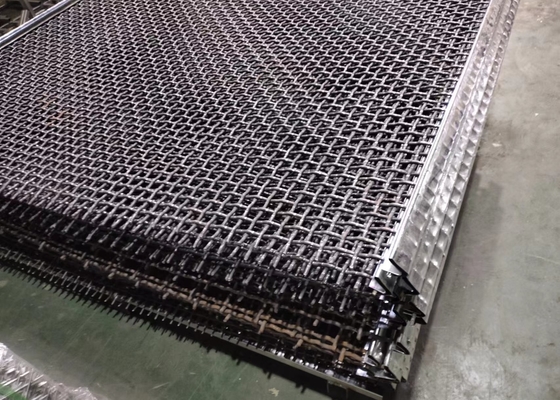

Length: 30m Hook: Hook With Steel Sheet
Hook Degree: 60degree Weaving Type: Double Crimp
High Light:

vibrating screen wire mesh

,

vibrating screen mesh

Products Description
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh for Stone Sand
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 0
Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

Name

Vibrating Screen Mesh

High carbon steel

65Mn,45#,50#,55#,60#,70#,,72A

Wire diameter

0.8mm-12.7mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm .

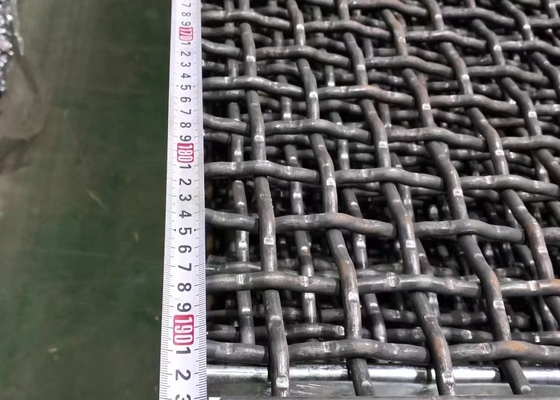

Aperture/Opening

2mm to 100mm,tolerance +-3%


Weaving style:

Plain weave Double crimped Intermediate crimped Flat top crimped
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 1

Features:

1.No tearing and abrasion
2.Placed above rubber beads to avoid metal to metal contact
3.Corrosion resistance
4. High temperature resistance

IMPORTANT FACTS TO CONSIDER WHEN ORDERING SCREENS:

When screens form part of the manufacturing process, the profits will depend on the specification of the screens which must be
chosen to give optimum performance. The specification of the screen best suited to the screening operation depends on:
The screen selected must achieve a compromise amongst these factors.
When ordering screens the following technical aspects should be taken into account :

Thickness of wire

Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass less material per unit area.
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 2

Open Area

This is the most important factor in obtaining maximum output. The larger the open area the less screen is wasted and the faster
the speed of screening. This open area factor must balanced against the wire diameter to give adequate life

Mesh

The mesh refers to the number of openings per inch. The mesh is counted by starting from the centre of one wire and counting the number of opening to a point one inch away.
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 3
OEM/ODM Accept the following types of customization with Polyurethane collocation
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 4

Aperture or Opening Width

This is the actual opening between the wires , and is also referred to as space. Thus 10mm aperture , 4mm wire ,means the wires
are 10mm apart , and the diameter of wire is 4mm
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 5

Pre –Crimped Wire Screens
( Wire Crimped before weaving )

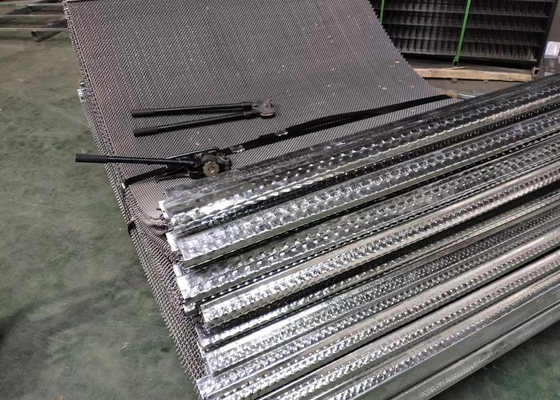

These are generally used for 10 mesh and coarser . Pre –crimped wire screens have very accurate opening and are tightly woven. The wires have very little movement, resulting in: Pre-crimped wire screens are generally preferred when accurate sizing is important and for vibrating screens where tightness is important. Hooks and Hooks Strips on Vibrating Screens

High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 6
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 7
Details Images
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 8
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 9
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 10
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 11
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 12
High Tensile Strength Hook Crimped Vibrating Screen Wire Mesh Mine Sieving Mesh For Stone Sand 13
