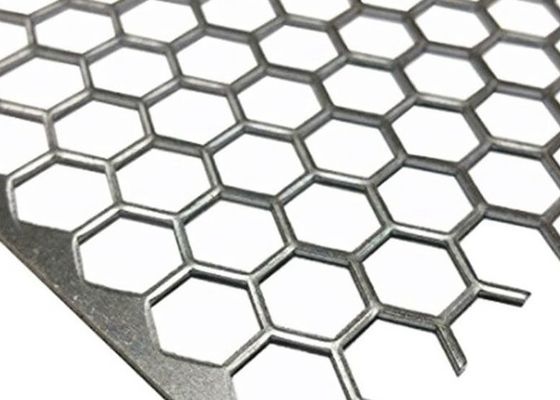

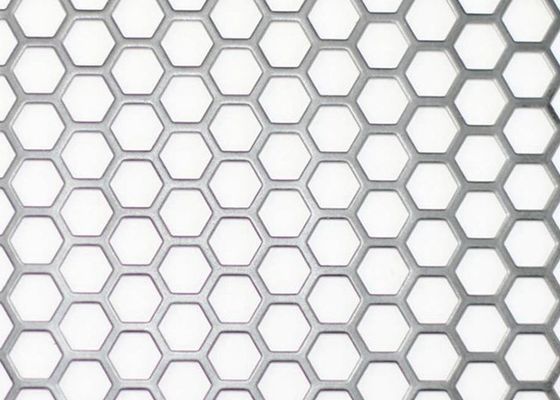

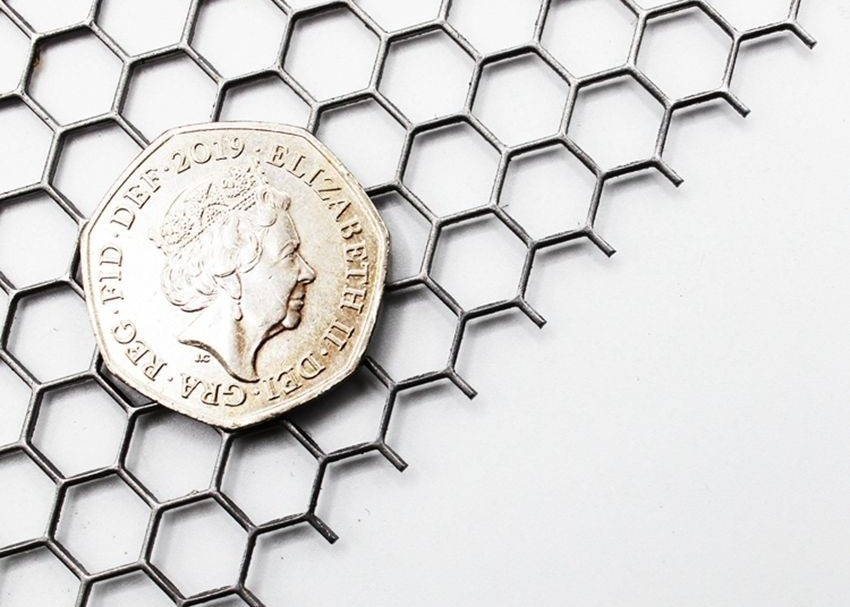

Hexagonal Hole Sheet Perforated Metal Mesh Stainless Steel

Large Image : Hexagonal Hole Sheet Perforated Metal Mesh Stainless Steel

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	2mm thickness

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	pallets
Delivery Time:	15-25days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces per week

Contact Now

Detailed Product Description

Material:	Stainless Steel	Name:	Perforated Metal Screen Sheet
Hole Type:	Rould Hole	Thickness:	2mm
Key Word:	Cold Rolled Stainless Steel Sheet /stainless Steel Plate	Length:	2000,2438,2500,3000,6000mm, Or As Your Requirements
Highlight:	Perforated Metal Mesh Stainless Steel , Hexagonal Hole Perforated Metal Mesh

Manufacturer Price Stainless Steel Hexagonal Hole Sheet Perforated Metal Mesh

Product Description

Perforated Metal Mesh Punching mesh refers to making holes of different shapes in different materials to suit different needs. Most of the raw materials used in punching net are: stainless steel plate, low carbon steel plate, galvanized plate, PVC plate, cold rolled coil, hot rolled plate, aluminum plate copper plate and so on.
Punching net main specifications are rectangular hole, square hole, diamond hole, round hole, long round hole, hexagonal hole, cross hole, triangle hole, long waist hole, plus-shaped hole, fish scale hole, pattern hole, eight mesh, herringbone hole, five-pointed star hole, irregular hole, drum hole, special-shaped hole, shutter hole, etc..

Specification

Hole Type	Hexagonal Staggered
Hole Size	1/2"
Thickness	14 Gauge (.0800")
Hole Centers	9/16"
Application	Safety Guards● Filtration● Screening● Trash Receptacles● Benches● Drain Covers"
Bar Width	1/16"
Hole Arrangement	60°
Open Area	79%

Hole Size	Thickness	Hole Centers	Bar Width	Hole Arrangement	Open Area
1/2"	14 Gauge (.0800")	9/16"	1/16"	60°	79%
1/2"	16 Gauge (.0640")	9/16"	1/16"	60°	79%
1/4"	20 Gauge (.0360")	9/32"	1/32"	60°	79%
1/4"	22 Gauge (.0280")	9/32"	1/32"	60°	79%

Advantages

1. The main characteristic of the steel plate punching net in use is that it is made of high-quality steel plate cutting and pulling. It has no solder joints, high strength, good anti-climbing, and is widely used at a moderate price.

2. After galvanized coating plastic double coating can prolong service life, reduce maintenance costs, bright color. And the installation is convenient, not easy to damage, small contact surface, not easy to touch dust can keep clean for a long time.

Application

1. Steel plate punching mesh is widely used in parks, buildings, villas, urban roads, national defense boundaries, residential areas, sports venues, airports and so on. The steel plate punching net is very simple and convenient in the process of installation, and it is also convenient to disassemble to a certain extent.

2. The previous guardrail will be disassembled for many times, easy to deformation and scrap. The steel plate punching net guardrail can be disassembled for more than 10 times without deformation, which fully reflects its strong and durable, long life!
