Product Details:
Payment & Shipping Terms:
|
| Chemical Composition: | Fe, C, Si, Mn, S, P | Alloy Or Not: | Non-Alloy |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects | Application: | Villa |
| Surface Treatment: | Hot-DIP Galvanizing, Painting Or Untreated | Grate Length: | 1000mm |
| Grate Width: | 800mm | Bearing Bar Width X Thickness: | 25x3mm |
| Bearing Bar Shape: | Plain, Serrated I Bar Type Style Steel Grating | Cross Bar Shape: | Round,twisted,bar Shape |
| Mesh Size: | 30x100mm | ||
| High Light: | galvanized grating,galvanised steel grating |
||

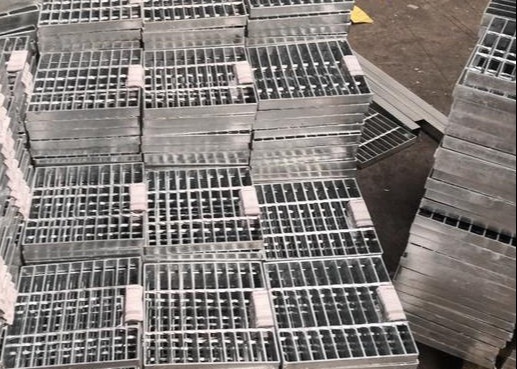

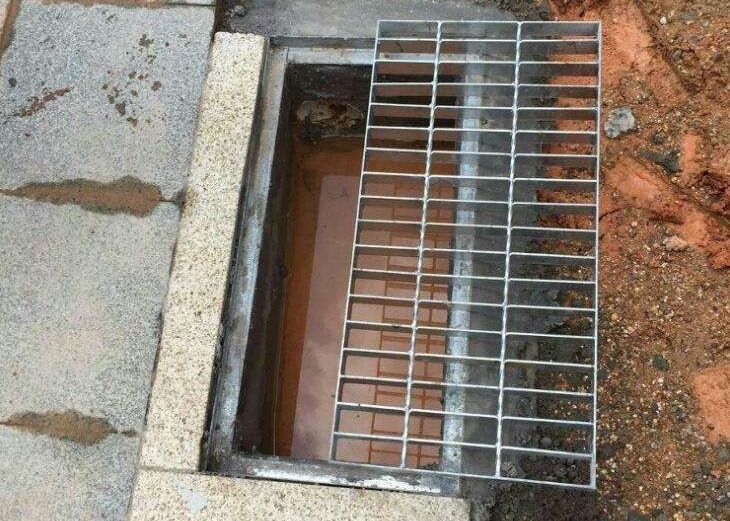

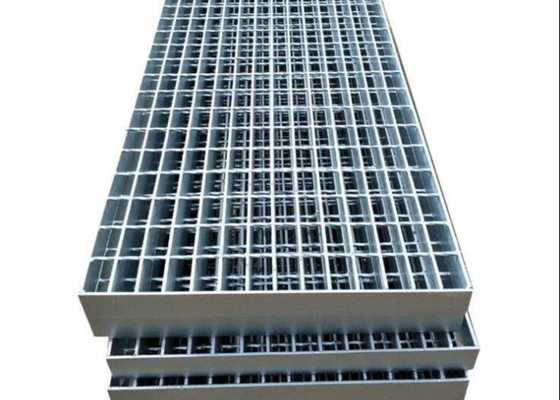

Steel bar grating with high strength and firm structure is made up of carbon steel, aluminum steel, or stainless steel. According to the manufacturing methods, it can be divided into four types: welded, press-locked, swage-locked, and riveted gratings. According to the surface shapes, it can be divided into smooth and serrated gratings. With various styles and sizes for choice, steel gratings are widely used in everyday life, such as stair treads, walkways, platforms, floors, various covers, wheeled equipment, security screens, heavy-duty constructions, and so on.
|
Learn more about the main components of metal bar grating |
|
|
Span: |
Total span. |
|
Width: |
Panel width. |
|
Bearing Bars: |
Load carrying main element. |
|
Bearing Bars Spacing: |
Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) on center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center. |
|
Bearing Bars Depth: |
Ranges from 3/4″ to 7″ depending on anticipated loads. |
|
Bearing Bars Thickness: |
Ranges from 1/8″ to 1/2″ depending on anticipated loads. |
|
Cross Bars: |
Used to Secure the position of bearing bars. |
|
Cross Bar Spacing: |
Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center. |
Grating Manufacturing Methods
Surface Options (Bearing Bar Type)
Surface Treatment
We provide four finishes for anti-corrosion treatment of carbon steel bar grating:
Black / Bare Steel: No finish, life is very short, but the price is the cheapest.
Painted Coat: The anti-rust effect is general and can be any color.
Electro-galvanized: A small amount of zinc coating, easy to cause slight corrosion in humid environment.
Hot-dip galvanized: The most commonly used method to provide the best anti-rust effect, strictly in accordance with ASTM A123 or GB/T 13912-2002.
Due to discoloration during welding and manufacturing, stainless steel bar grating usually requires a second cleaning:
Steel Grating Accessories for Installing
Steel grating accessories are used to install and fix steel grating. They are very necessary. Steel grating accessories have wear resistance, high strength and resistance to stress, rust-proof performance.
Classifications of steel grating accessories:
Steel Grating Types
Irregular Steel Grating:
