Product Details:
Payment & Shipping Terms:
|
| Chemical Composition: | Fe, C, Si, Mn, S, P | Alloy Or Not: | Non-Alloy |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects | Application: | Villa |
| Surface Treatment: | Hot-DIP Galvanizing, Painting Or Untreated | Grate Length: | 1000mm |
| Grate Width: | 800mm | Bearing Bar Width X Thickness: | 25x3mm |
| Bearing Bar Shape: | Plain, Serrated I Bar Type Style Steel Grating | Cross Bar Shape: | Round,twisted,bar Shape |
| Mesh Size: | 30x100mm | ||
| High Light: | galvanized grating,galvanised steel grating |
||

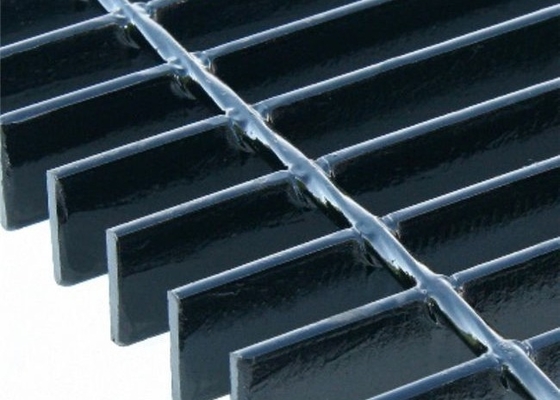

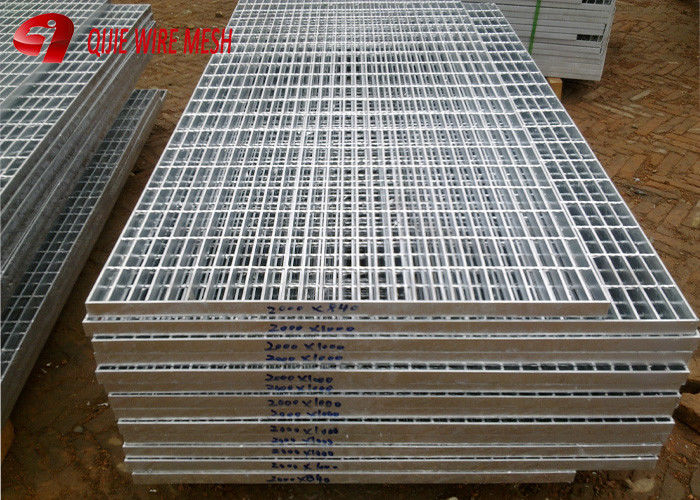

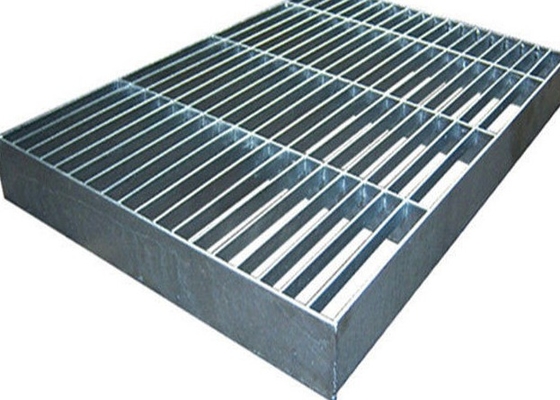

Steel Grating
1.Materials: Mild carbon steel with a variety of grades;Stainless steel 201,304,316.etc.Also customerized steel.
2.Surface Treatment: Hot DIP Galvanizing /electro galvanized
3.specification list
| Specifications of steel gratings | ||
| No | Item | Description |
| 1 | Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50… 75x8mm, etc. |
| 2 | Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 3 | Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| 4 | Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirement. |
| 5 | Surface treatment | Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers' requirement. |

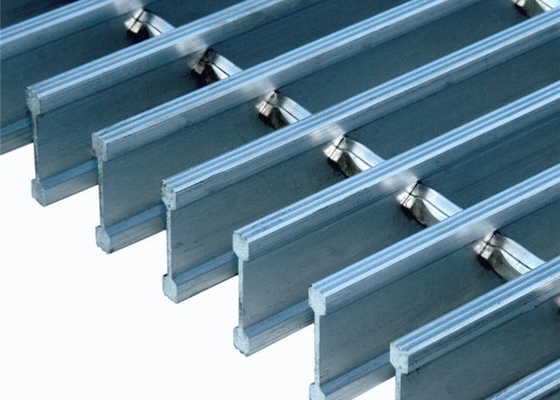

| 6 | Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| 7 | Material standard | Low carbon steel (CN: Q235, US: A36, UK: 43A) |
| 8 | Galvanization standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc.
