Product Details:
Payment & Shipping Terms:
|
| Chemical Composition: | Fe, C, Si, Mn, S, P | Alloy Or Not: | Non-Alloy |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects | Application: | Villa |
| Surface Treatment: | Hot-DIP Galvanizing, Painting Or Untreated | Grate Length: | 1000mm |
| Grate Width: | 800mm | Bearing Bar Width X Thickness: | 25x3mm |
| Bearing Bar Shape: | Plain, Serrated I Bar Type Style Steel Grating | Cross Bar Shape: | Round,twisted,bar Shape |
| Mesh Size: | 30x100mm | ||
| High Light: | galvanized grating,galvanised steel grating |
||
Product Description
Steel grating is cross-arranged with flat steel according to a certain spacing and cross bars, and welded into a steel product with a square lattice in the middle. It is mainly used as a gutter cover. , steel structure platform plate, steel ladder step plate, etc., the cross bar is generally made of twisted square steel.

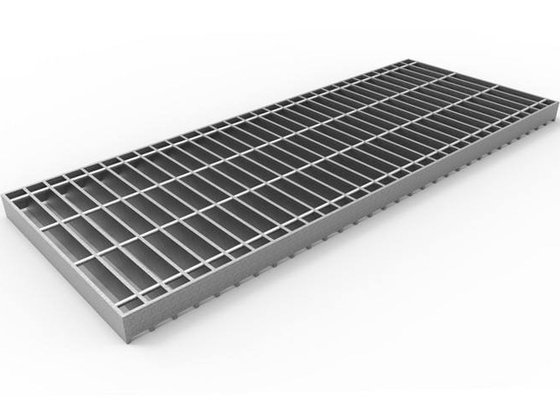

Welded steel grating
when selecting a bar grating product, consider Welded Steel Grating first. Usually our most economical products, they provide a comfortable walking surface with nearly 80 percent open area. This, combined with the positive welded cross bar/bearing bar intersection, make these products our most popular. Manufactured from ASTM A-1011 carbon steel, welded gratings are recommended for nearly all industrial flooring applications.
Stainless Steel Grating
When considering grating for food processing applications,shipboard use, or highly corrosive environments, Stainless Steel Grating is often the most cost effective product.Commonly manufactured in 300 series alloys, stainless steel gratings are assembled by welding or pressure locking to suit the specific needs of each application.To specify Stainless Steel Grating, the type of grating is indicated by designating one of the three profiles shown combined with the bearing bar/cross bar spacing illustrated in the table below.

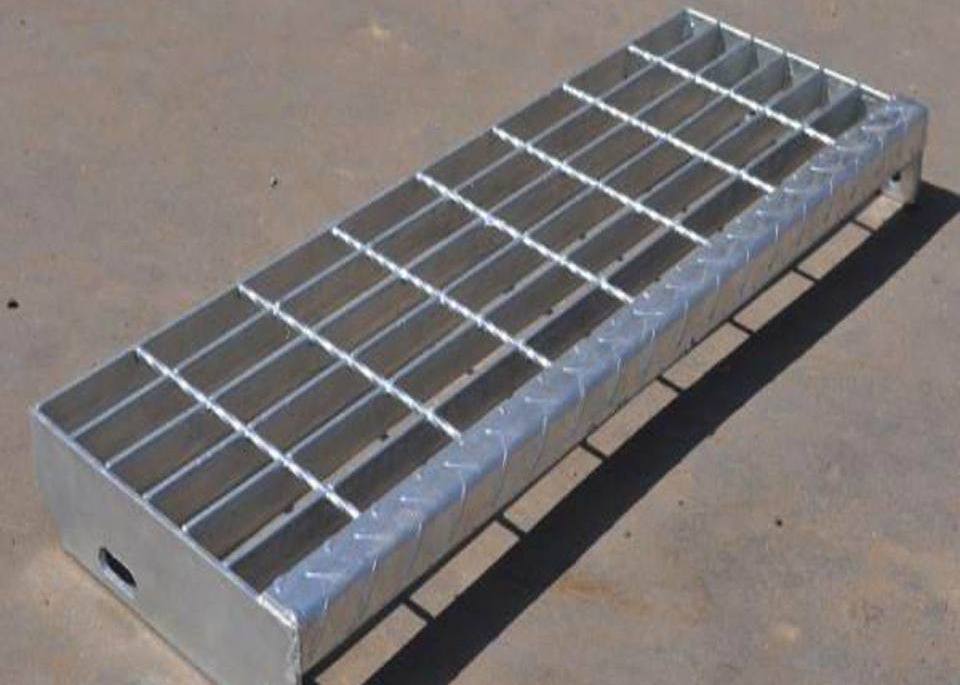

Stair Treads
Carbon steel, aluminum and stainless steel treads are manufactured with a variety of defined, visible nosings, and pre-punched end or carrier plates, ready for bolting to the stair stringers.
Product Specification
Steel Grating Types
Packing & Shipping
--belt
--pallet
--wooden case
