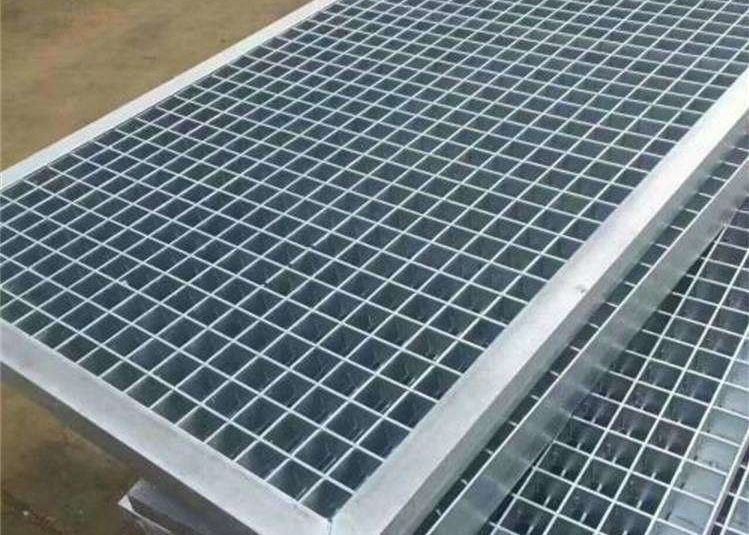

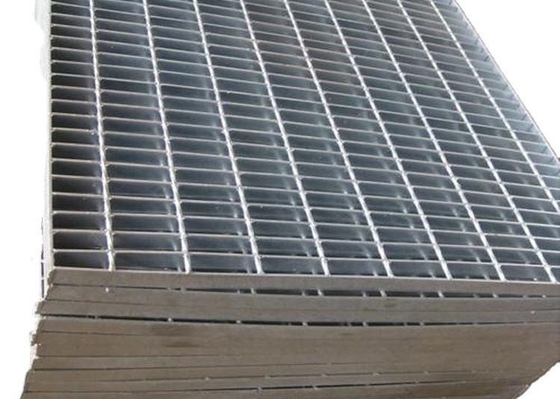

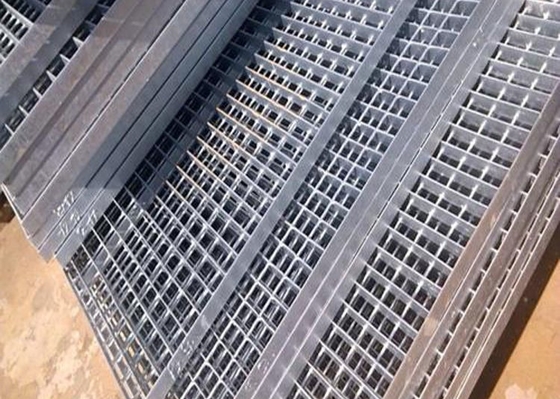

Outdoor Hot Dipped Galvanized Steel Grating For Fencing

Large Image : Outdoor Hot Dipped Galvanized Steel Grating For Fencing

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	galvanized grating , galvanised steel grating

Outdoor Hot Dipped Galvanized Steel Grating For Fencing

Product Description

The products are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and on customer's requests
Material:ASTM A36,A1011,A569
The press welded steel grating,requested by the customers,is made of load flat steel bar and cross bars,placed horizontally and vertically,and at an equal pitch apart,by welding with 200-ton hydraulic resistance automatic welding equipment,then cutting,punching and banding ends

Specifications

NO.	Bearing size(mm)	Cross bar pitch(mm)	Weight(kg/square meter)
G253/30/50	25x3	50	25.7
G253/30/100	25x3	100	22.8
G255/30/50	25x5	50	39
G255/30/100	25x5	100	36.2
G323/30/50	32x3	50	31.3
G323/30/100	32x3	100	28.4
G353/30/50	35x3	50	33.6
G353/30/100	35x3	100	30.8
G355/30/50	35x5	50	49.5
G355/30/100	35x5	100	37.7
G403/30/50	40x3	50	37.7
G403/30/100	40x3	100	34.9
G405/30/50	40x5	50	59
G405/30/100	40x5	100	56.2
