Product Details:
Payment & Shipping Terms:
|
| Material: | Black Wire, Spring Steel Wire, 65mn | Aperture: | 0.8 - 8 Mm |
|---|---|---|---|
| Size: | 1.5mx1.95m | Install: | Hooked |
| Surface Treatment:: | Galvanized Or Painted | Mesh Size: | 1mm - 100mm |
| Hole Type: | Square, Rectangular And Long Slot. | ||
| High Light: | 65mn Vibrating Screen Mesh,Vibrating Woven Screen Mesh,65mn Hight Woven Screen Mesh |
||
65mn Hight Carbon Vibrating Woven Screen Mesh For Mining And Crusher
Mining Wire Mesh with hook is widely used in industry for filtration, separation, crushing, grading, sizing and shifting. It is applicable for a variety of materials, ranging from minerals, stones and ores. Due to its rigid design and excellent protection against abrasions, it is highly suitable for processing heavy abrasive materials like crushed stones, sand and gravel coal.
1. Vibrating screen mesh Material:
1) Stinless steel wire(201, 202, 302, 304, 304L, 310, 316, 316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, Mn steel wire, black wire.
3) Galvanized iron wire, galvanized steel wire
Aluminum wire, copper wire, non-ferrous metal wire, Other materials are available on request.
2. Vibrating screen mesh Crimp methods:
Plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp
3. Vibrating screen mesh Features:
Even mesh, strong structure
4. Vibrating screen mesh Specifications:
Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: As request
Length: As request
5. Vibrating screen mesh Hook:
60-180 degree, C hook available
Hook Covered edge: Galvanized metal or others
6. Vibrating screen mesh Application:
| specification | ||
| WIRE DIAMETER | OPENING | |
| 0.5 MM x | 0.4 MM | |
| 1 MM x | 0.7 MM | |
| 1.5 MM x | 1 MM | |
| 2 MM x | 1.4 MM | |
| 4 MM x | 2 MM | |
| 3MM x | 2 MM | |
| 4 MM x | 2.5 MM | |
| 5 MM x | 2.5 MM | |
| 4 MM x | 3 MM | |
| 5 MM x | 3 MM | |
| 6 MM x | 3.5 MM | |
| 7 MM x | 3.5 MM | |
| 8 MM x | 3.5 MM | |
| 10 MM x | 4 MM | |
| 12 MM x | 4 MM | |
| 12 MM x | 4.5 MM | |
| 14 MM x | 5 MM | |
| 13 MM x | 4.5 MM | |
| 15 MM x | 5 MM | |
| 16 MM x | 5.5 MM | |
| 18 MM x | 5.5 MM | |
| 19 MM x | 5.5 MM | |
| 20 MM x | 5.5 MM | |
| 18 MM x | 6 MM | |
| 19 MM x | 6 MM | |
| 20 MM x | 6 MM | |
| 22 MM x | 7 MM | |
| 24 MM x | 7 MM | |
| 25 MM x | 7 MM | |
| 22 MM x | 8 MM | |
| 24 MM x | 8 MM | |
| 25 MM x | 8 MM | |
| 35 MM x | 8 MM | |
| 38 MM x | 8 MM | |
| 45 MM x | 8 MM | |
| 50 MM x | 8 MM | |
| 63 MM x | 10 MM | |
| 75 MM x | 10 MM | |
| 100 MM x | 12 MM | |
| 40 MM x | 11 MM | |
| 45 MM x | 11MM | |
| 50 MM x | 11 MM | |
| 63 MM x | 12 MM | |
| 75 MM x | 10 MM | |
| 100 MM x | 14MM | |
| 110 MM x | 14 MM | |
| 100 MM x | 16MM | |
| 110 MM x | 16 MM | |
7,Packing:
Our woven wire mesh is manufactured with a stringent wire opening tolerance of ±3%.Wire diameter is available in the industrys largest variety of wire diameters from .047 inches(1.2mm) to .750 inches(19 mm) and open size from .125 inches (3.18mm)to 5 inches (127mm)
The weaving process is also crucial .Each screen is woven with an extremely tight tolerance to any type of movenment within the crimp or weave, preventing the wires from rubbing against each other and wearing prematurely during use.Thus a tight weave is produced every time,and the tighter the weave,the more durable the woven wire. So you get the strongest screen media poaaible every time you order.

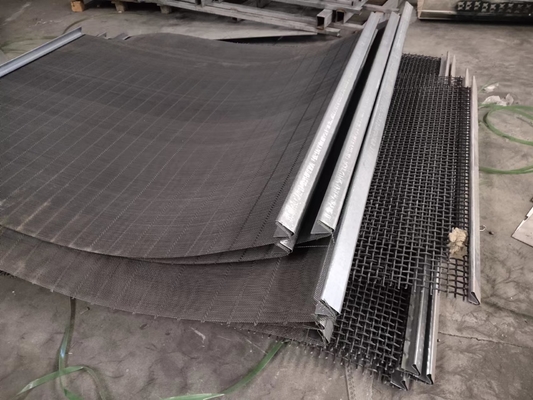

vibrating screen mesh

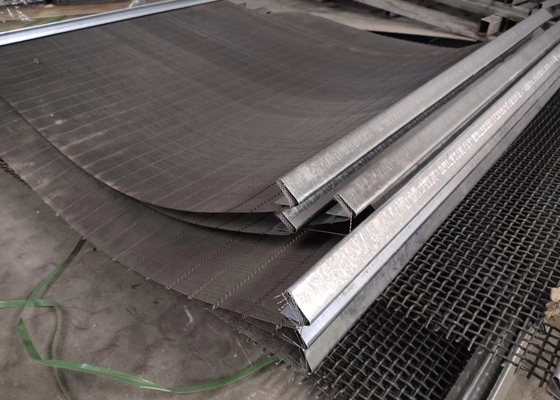

vibrating screen mesh

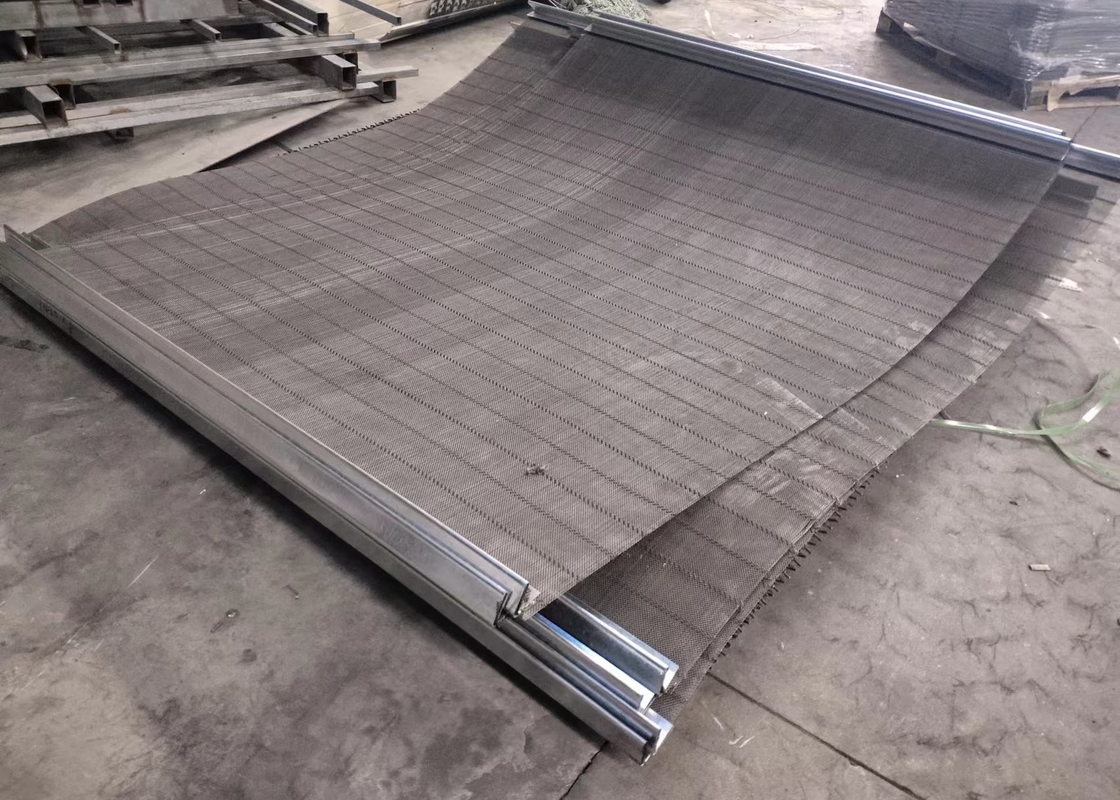

vibrating screen mesh
mining screen mesh
