| Technique: | Woven | Material: | Stainless Steel Wire,316,304 |
|---|---|---|---|
| Weave Style: | Plain/Twill Weave | Product Name: | Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh |
| Wire Diameter: | Requirement | Width: | Usually 1M |
| High Light: | Stainless Steel 304 Metal Fabric Mesh,Stainless Steel 304 Woven Wire Mesh |
||

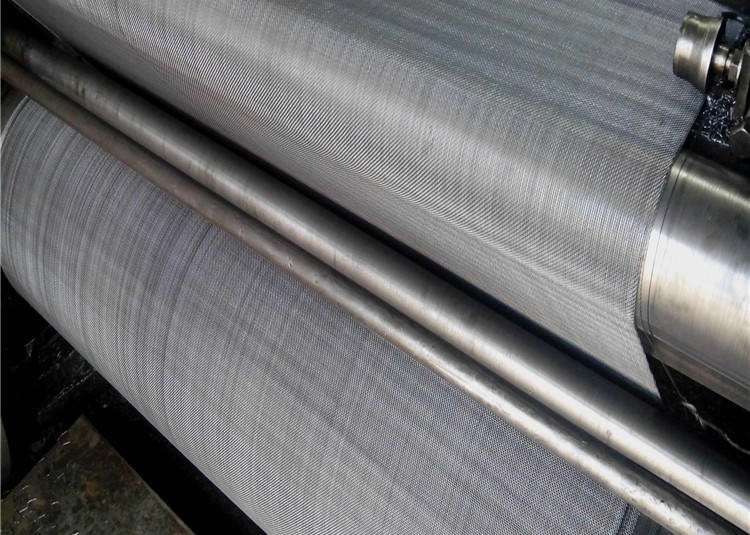

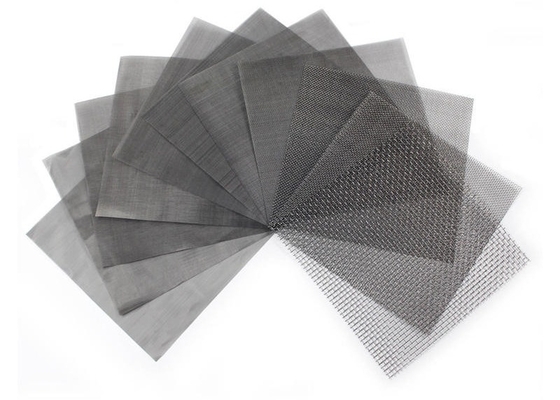

Stainless Steel Woven Wire Metal Fabric Mesh
Material:stainless steel 304,304L,316,316L,317,310S,321,304M,434, brass, copper, monel, nickel, tiatnium, 1Cr18Ni9Ti, Cr20Ni80, Cr20Ni50, galvanized, low carbon iron.
Wire diameter: 0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole Sizes: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Hole shape: irregular
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
Length: 30-200m, customized size is available.
Thickness: 0.12mm-2.5mm, customized size is available
Craft: through layered, spiral wound or compressed, produces a tortuous path for highly effective particle capture.
Surface: flat-type and corrugated type
Gas-liquid filter mesh Specification:
Features:
1.Neat and precise;
2.Reliable filtering precision;
3.Thermal & Shock Resistance;
4.High compressive strength;
5.Corrosion and rust resistance;
6.Wear-resistance;
7.Good moulding.
Application:
It is widely used in the petroleum ,chemistry, metallurgy, machine, pharmaceuticals, automobile industry and environmental protection, for distillating, absorbing, evaporating and filtering, so as to eliminate the entrainment and foam mixed in the gas and liquid.
