Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel Wire | Wire Diameter: | 4.0 / 5.0 Mm |
|---|---|---|---|
| Mesh: | 50 X 100 Mm, 75 X 75 Mm | Type: | Welded Mesh |
| Hole Shape: | Square, Rectangular | Dimension: | 1 X 1 X 1 M, 2 X 1 X 1 M |
| High Light: | Welded Gabion Baskets With Lid,Galvanized Wire Welded Gabion Baskets,Retaining Wall Welded Gabion Baskets |
||
Supply 2x1x1Reinforced Gabion

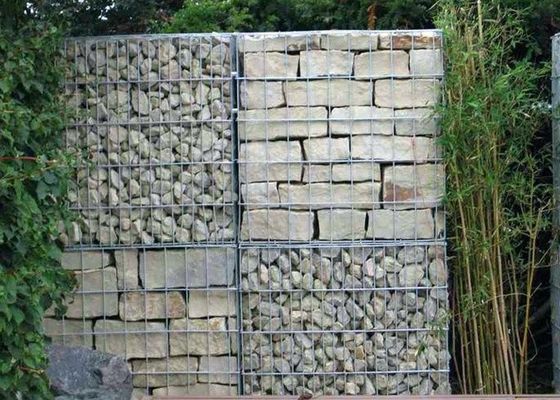

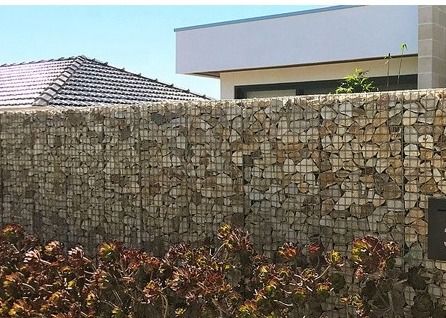

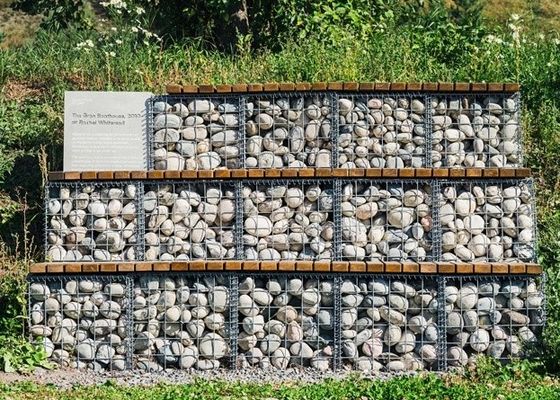

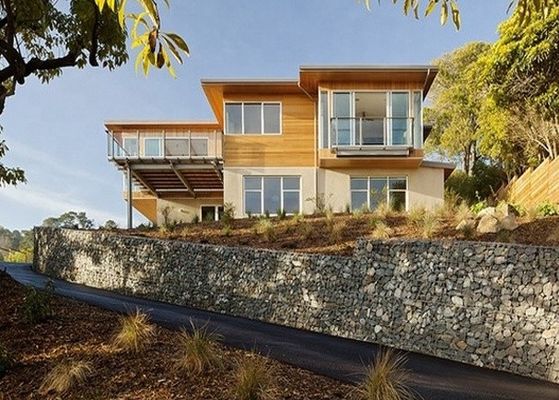

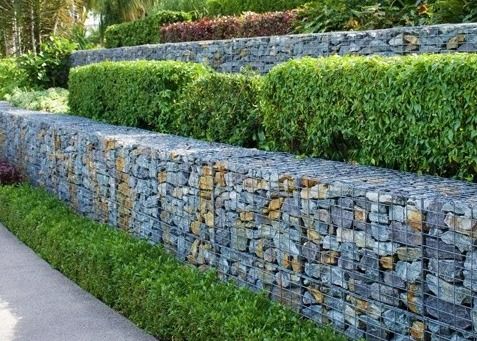

Gabion boxes are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC coated wires, the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.
Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes,all the edges of the structure shall be selvedged with wire of bigger diameter.
Install
Outer Size: 1×1×1M, 2×1×1M, 3×1×1M, 4×1×1M, 1×1×0.3M, also customized.
Performance: Flexbility, ductility, permeability, promoting plant growth, corrosion resisitance, economy,easy construction, resistance to natural damage.
|
Mesh Size (mm) |
Number of Diaphragm | Approx Dimentions and Volumes | Tolerance | Color |
Wire Diameter (mm) |
|||
|
Length (m) |
Width (m) |
Height (m) |
Capacity (m³) |
|||||
|
60×80 mm
80×100 mm
90×110 mm
100×120mm
120×150mm
110×130mm
|
1 | 2.00 | 1.00 | 0.30 | 0.60 |
Length±5%
Width±5%
Height±5% |
Blue
Red
Green
Grey
Black |
2.0 -4.0 mm |
| 1 | 2.00 | 1.00 | 0.50 | 1.00 | ||||
| 1 | 2.00 | 1.00 | 1.00 | 2.00 | ||||
| 2 | 3.00 | 1.00 | 0.30 | 0.90 | ||||
| 2 | 3.00 | 1.00 | 0.50 | 1.50 | ||||
| 2 | 3.00 | 1.00 | 1.00 | 3.00 | ||||
| 3 | 4.00 | 1.00 | 0.30 | 1.20 | ||||
| 3 | 4.00 | 1.00 | 0.5 | 2.00 | ||||
| 3 | 4.00 | 1.00 | 1.00 | 4.00 | ||||
| 1 | 2.00 | 0.50 | 0.50 | 0.50 | ||||
| 2 | 3.00 | 0.50 | 0.50 | 0.75 | ||||
